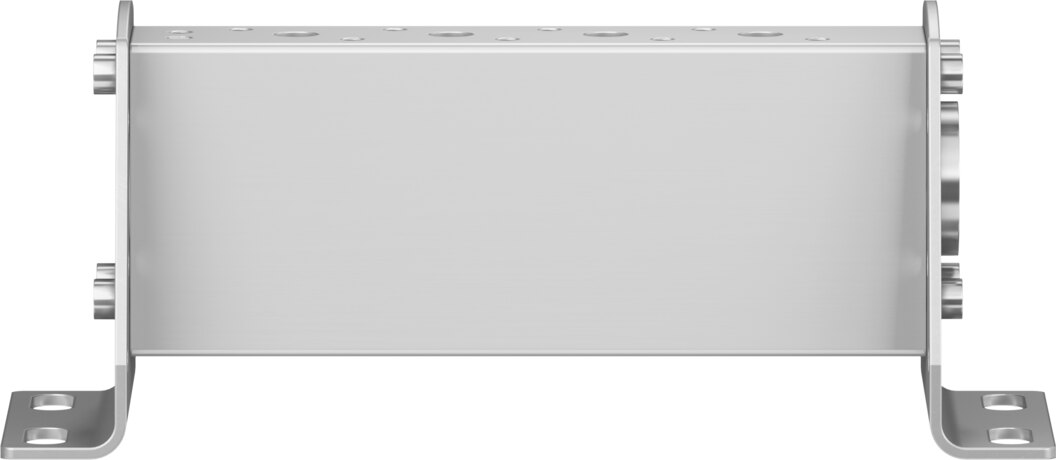

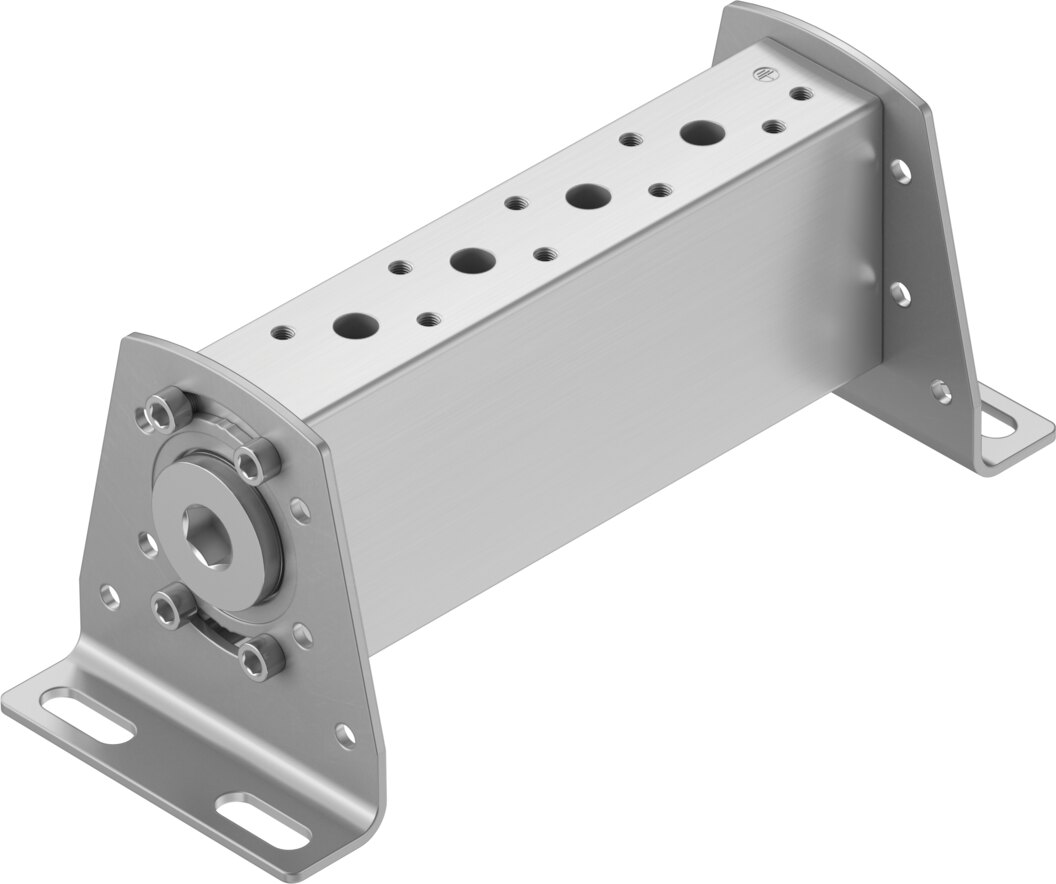

Common supply manifold for 3 valves, 32 mm grid, G3/4 VABM-B10-30-G34-3-P53 - Festo 8026339

Festo ✓ Original product Brand new

3 valve positions on a 32 mm grid save individual tubing, the supply runs centrally through the rail. Supply port 1 in G3/4. Type VABM-B10-30-G34-3-P53 in wrought aluminium alloy, CRC 2.

Net
€56.66
excl. VAT
Item FES-8026339
Manufacturer no. VABM-B10-30-G34-3-P53
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

A common supply manifold for 3 valves on a 32 mm grid: the VABM-B10-30-G34-3-P53 combines the valves into one group with a shared supply. Lines connect via supply port 1 in G3/4. Wrought aluminium alloy, CRC 2 and PWIS conformity to VDMA 24364-B1/B2-L characterise the VABM-B10-30-G34-3-P53.

Benefits

  • Valve positions: 3 positions on a 32 mm grid
  • Supply: Port 1 in G3/4
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

Type of mounting: with mounting bracket, any mounting position.

Technical data

TypeVABM-B10-30-G34-3-P53
Festo part number8026339
Grid dimension32 mm
Mounting positionAny
Maximum number of valve positions3
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight977 g
Type of mountingWith mounting bracket
Pneumatic connection, port 1G3/4
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVABM-B10-30-G34-3-P53
EAN4052568279783
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 3/4
Anzahl Stationen [Stk]3
SeriesVABM
Pneumatic connectionG3/4
