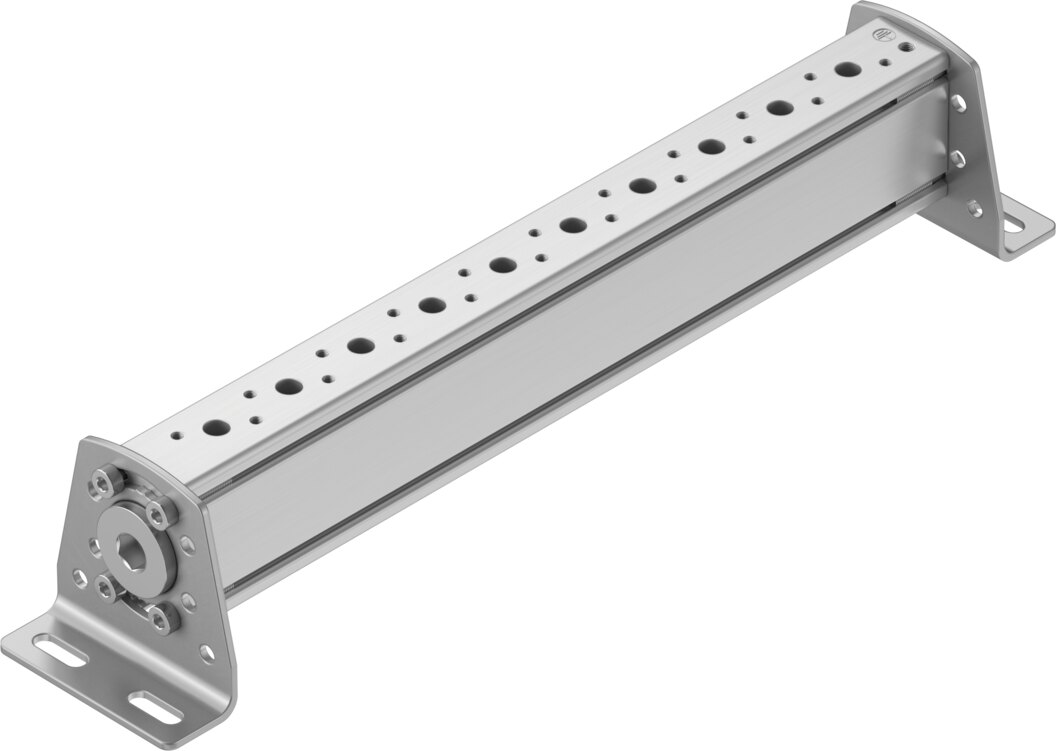

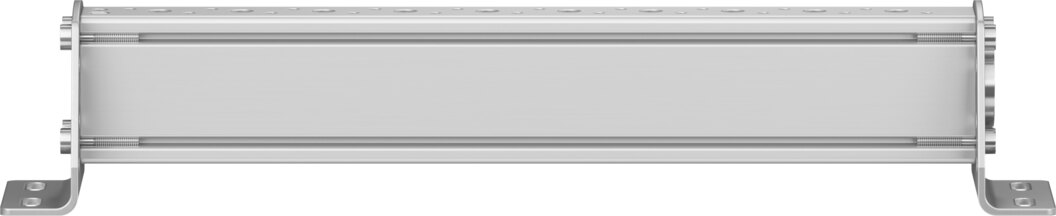

Common supply manifold for 10 valves, 22 mm grid, G3/8 VABM-B10-20-G38-10-P53 - Festo 576371

Festo ✓ Original product Brand new

Groups 10 valves on a 22 mm grid with one shared compressed-air supply. Supply port 1 in G3/8. Type VABM-B10-20-G38-10-P53 in wrought aluminium alloy, CRC 2.

Net
€76.54
excl. VAT
Item FES-576371
Manufacturer no. VABM-B10-20-G38-10-P53
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 10 valve positions on a 22 mm grid, the common supply manifold VABM-B10-20-G38-10-P53 forms the base of a compact valve group. Lines connect via supply port 1 in G3/8. The body of the VABM-B10-20-G38-10-P53 is made of wrought aluminium alloy (CRC 2).

Benefits

  • Valve positions: 10 positions on a 22 mm grid
  • Supply: Port 1 in G3/8
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

Type of mounting: with mounting bracket, any mounting position.

Technical data

TypeVABM-B10-20-G38-10-P53
Festo part number576371
Grid dimension22 mm
Mounting positionAny
Maximum number of valve positions10
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight563 g
Type of mountingWith mounting bracket
Pneumatic connection, port 1G3/8
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVABM-B10-20-G38-10-P53
EAN4052568261979
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 3/8
Anzahl Stationen [Stk]10
SeriesVABM
Pneumatic connectionG3/8
