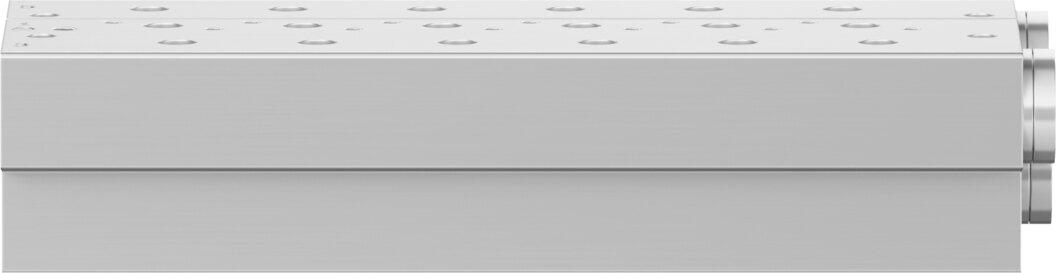

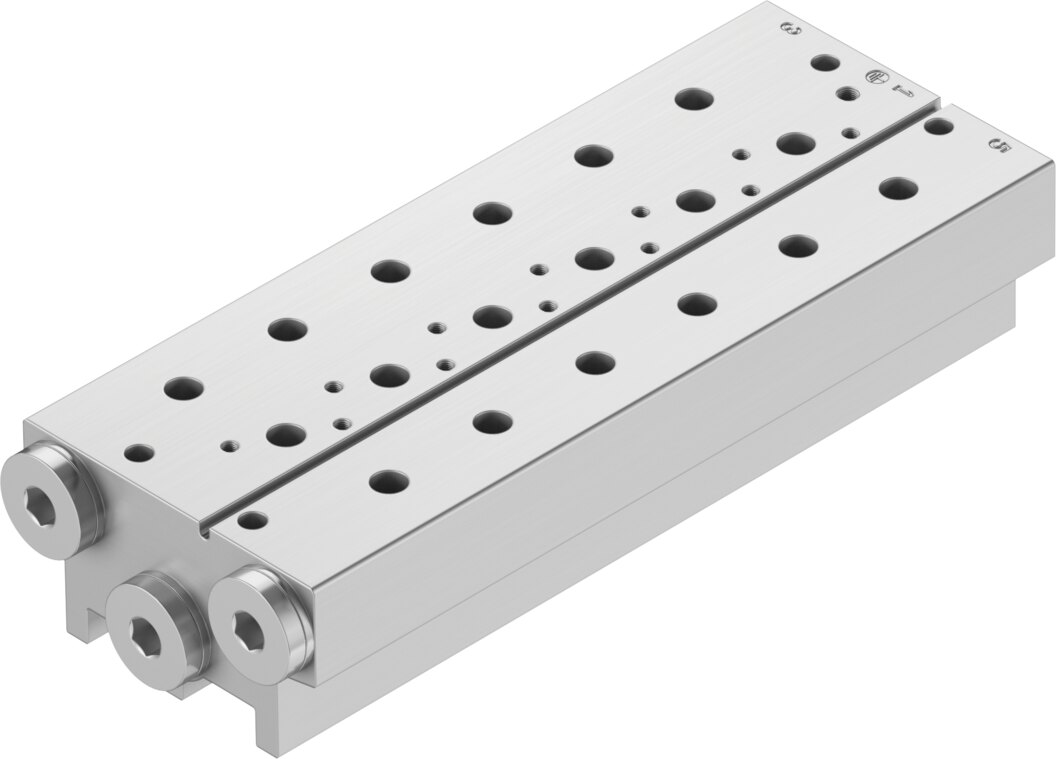

Manifold block for 5 valves, 22 mm grid, G1/4 VABM-B10-20S-G14-5 - Festo 576420
5 valve positions on a 22 mm grid save individual tubing, the supply runs centrally through the block. Supply port 1 in G1/4 and exhaust ports 3 and 5 in G1/4. Type VABM-B10-20S-G14-5 in wrought aluminium alloy, CRC 2.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The manifold block VABM-B10-20S-G14-5 carries 5 valves on a 22 mm grid and supplies them with compressed air from one source. Lines connect via supply port 1 in G1/4 and exhaust ports 3 and 5 in G1/4. The VABM-B10-20S-G14-5 is made of wrought aluminium alloy, corrosion resistance class 2, VDMA 24364-B1/B2-L.
Benefits
- Valve positions: 5 positions on a 22 mm grid
- Supply: Port 1 in G1/4, exhaust in G1/4
- Material: Wrought aluminium alloy, CRC 2
- PWIS-free: VDMA 24364-B1/B2-L
Applications
Type of mounting: with through-hole, any mounting position.
Technical data
| Type | VABM-B10-20S-G14-5 |
|---|---|
| Festo part number | 576420 |
| Grid dimension | 22 mm |
| Mounting position | Any |
| Maximum number of valve positions | 5 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 630 g |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 3 | G1/4 |
| Pneumatic connection, port 5 | G1/4 |
| Note on materials | RoHS compliant |
| Material manifold rail | Wrought aluminium alloy |
| Manufacturer | Festo |
| Hersteller-Nr | VABM-B10-20S-G14-5 |
| EAN | 4052568262099 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Anzahl Stationen [Stk] | 5 |
| Series | VABM |
| Pneumatic connection | G1/4 |
