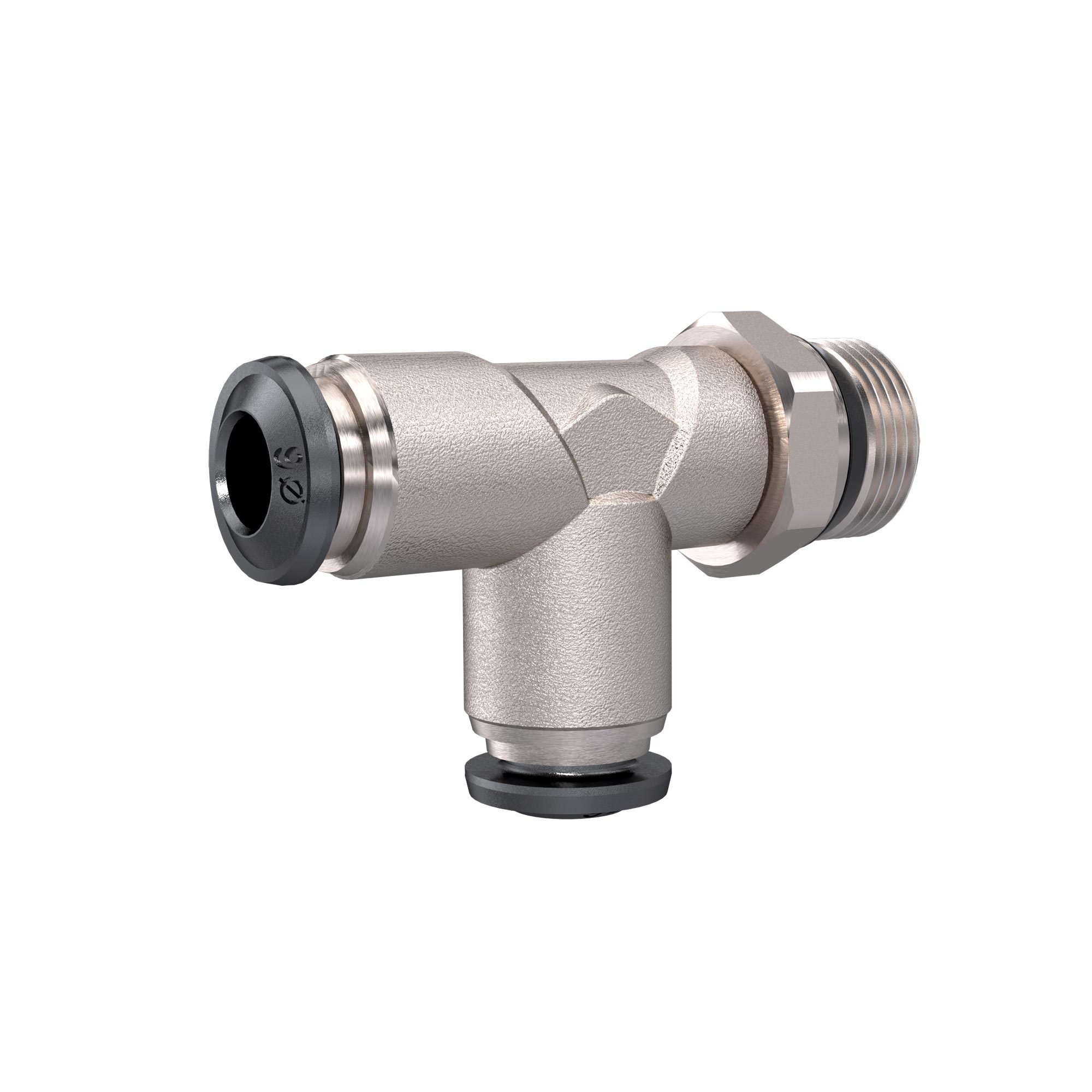

Push-in T-fitting click-clock, thread M5 male and G 1/8 male to G 1/2 male, tube O.D. 4, 5, 6, 8, 10, 12 and 14 mm - Riegler
The push-in T-fitting click-clock comes with thread M5 male and G 1/8 male to G 1/2 male, on the push-in side for tube O.D. 4 to 14 mm. Working pressure -0.99 to 16 bar, operating temperature -20 to 80 °C, material nickel-plated brass.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The push-in T-fitting click-clock comes with thread M5 male and G 1/8 male to G 1/2 male, on the push-in side for tube O.D. 4 to 14 mm. Working pressure -0.99 to 16 bar, operating temperature -20 to 80 °C, material nickel-plated brass.
Benefits
- Threads M5 male and G 1/8 male to G 1/2 male
- Push-in ports for tube O.D. 4, 5, 6, 8, 10, 12 and 14 mm
- Working pressure -0.99 to 16 bar, vacuum included
- Operating temperature -20 to 80 °C
- Material nickel-plated brass, seal NBR
- Easy insertion and release, non-calibrated hoses included
Applications
- Applications stated by the manufacturer: compressed air systems, vacuum
- Hose connection to valves, cylinders, air preparation units and manifolds with threaded ports
Technical data
| Design | Push-in T-fitting |
|---|---|
| Series | click-clock |
| Thread | M5 male, G 1/8 male, G 1/4 male, G 3/8 male, G 1/2 male |
| For tube O.D. | 4, 5, 6, 8, 10, 12 and 14 mm |
| Material | nickel-plated brass |
| Seal material | NBR |
| Release sleeve | Hostaform |
| Clamping ring | stainless steel |
| Minimum working pressure | -0.99 bar |
| Maximum working pressure | 16 bar |
| Operating temperature | -20 to 80 °C |
| Medium | compressed air |
| Recommended hose/tube material | PA, PU |
| Applications | compressed air systems, vacuum |
| Width across flats | 9, 12, 14, 17 and 22 mm |
| Manufacturer | Riegler |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Working pressure max. [bar] | 16 |
| Norm | DIN 13-1, DIN EN ISO 228-1 |
| Betriebsdruck max [bar] | 16 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
