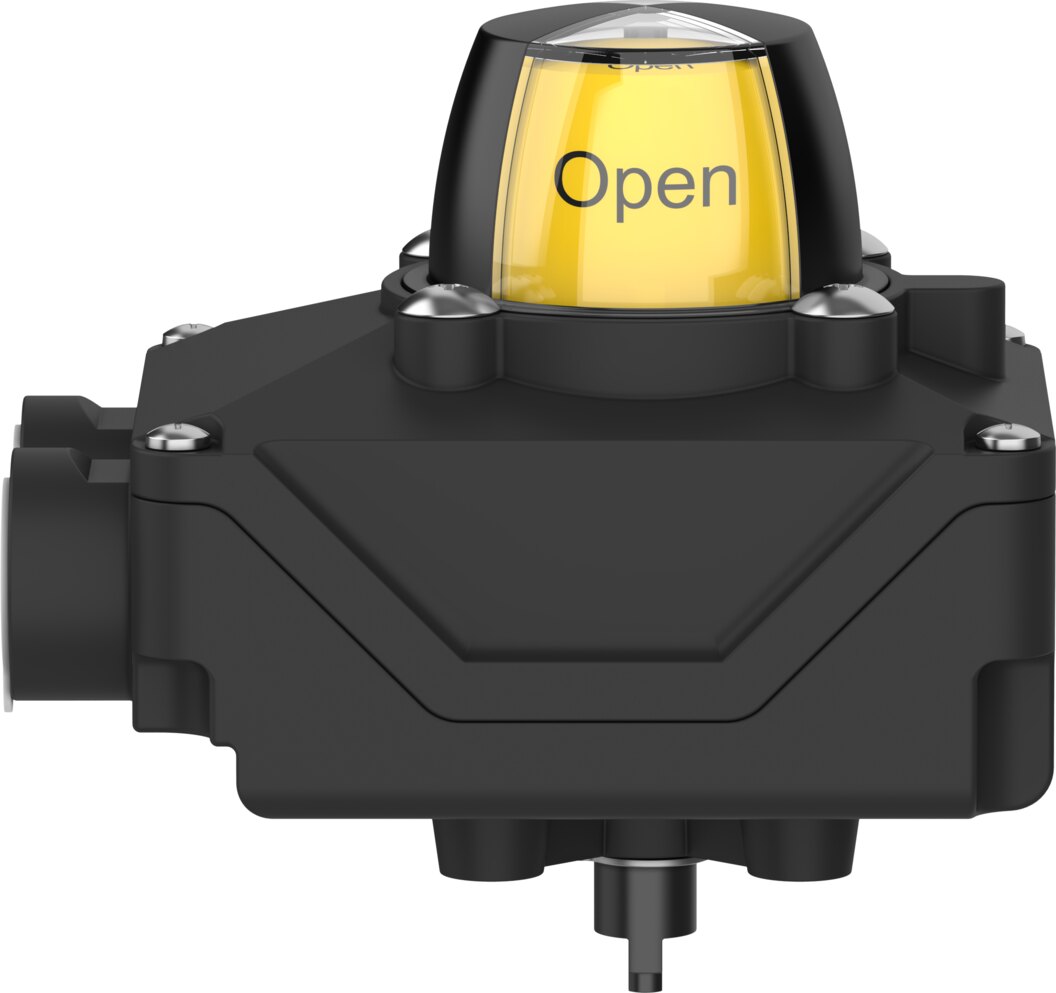

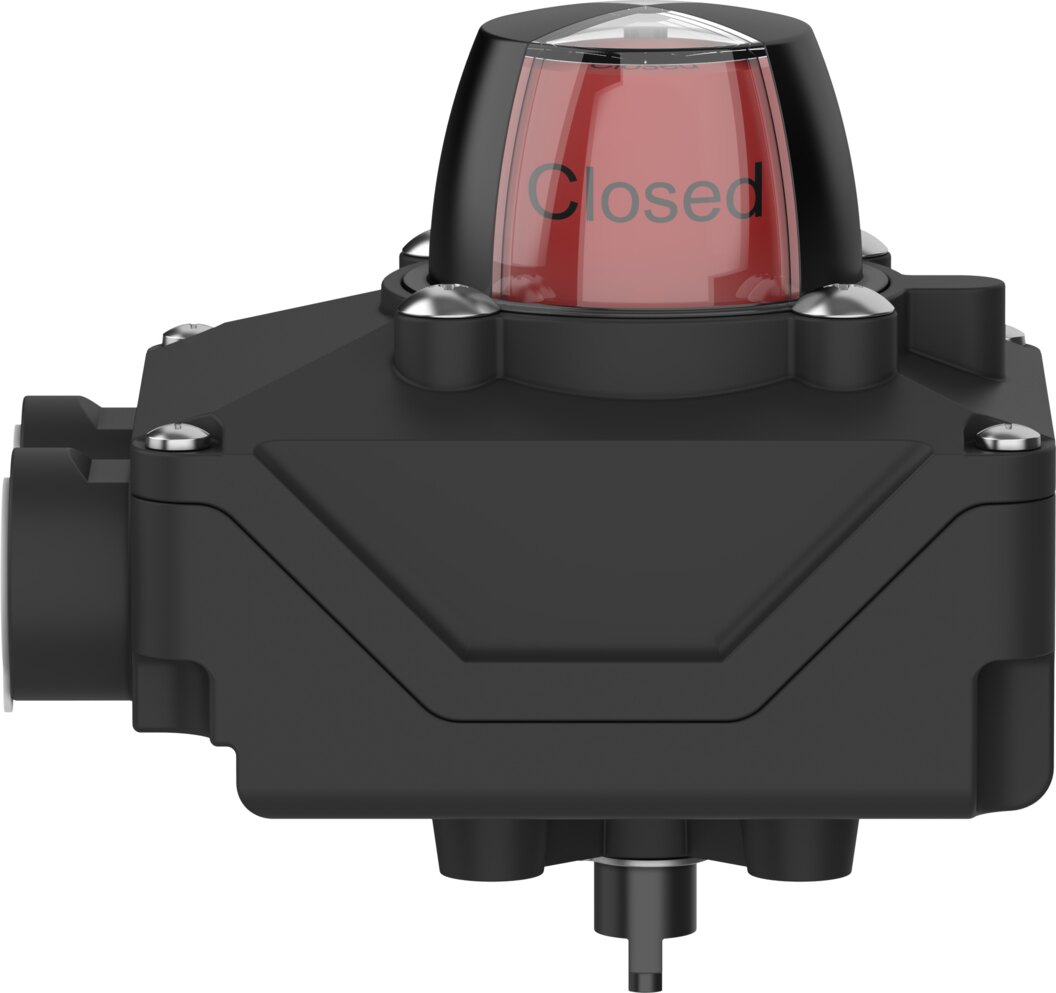

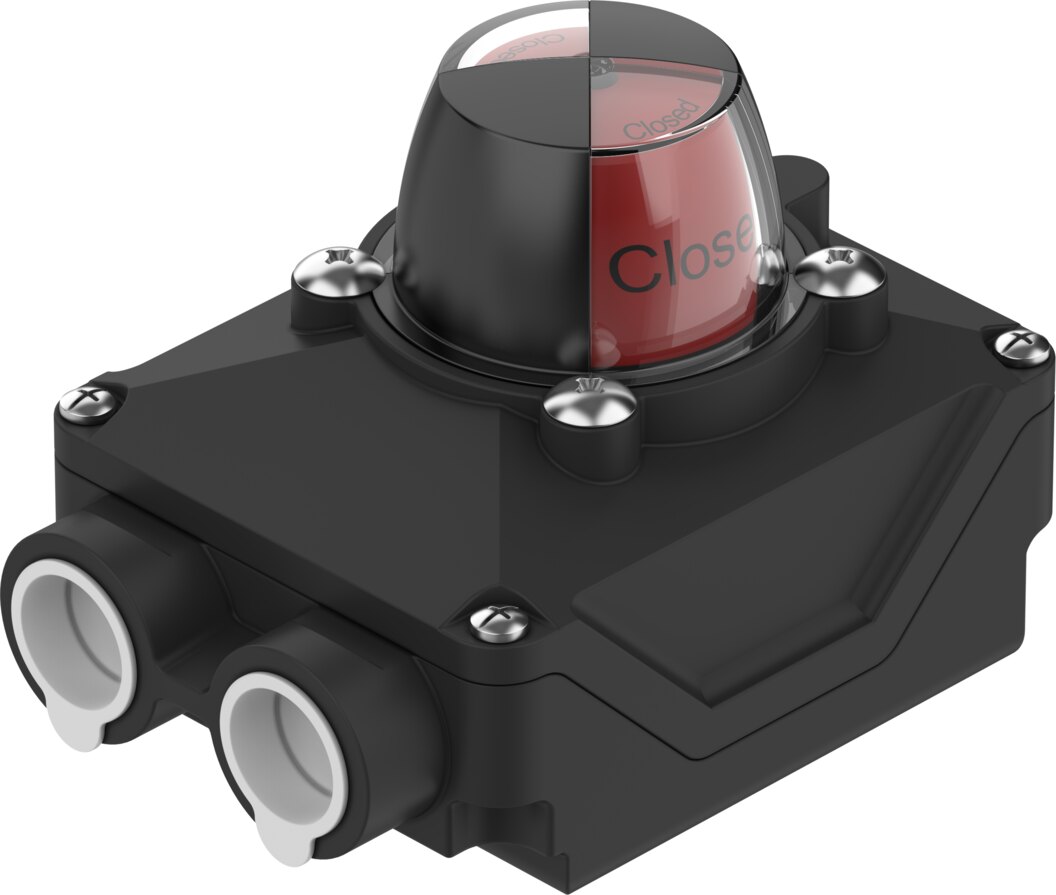

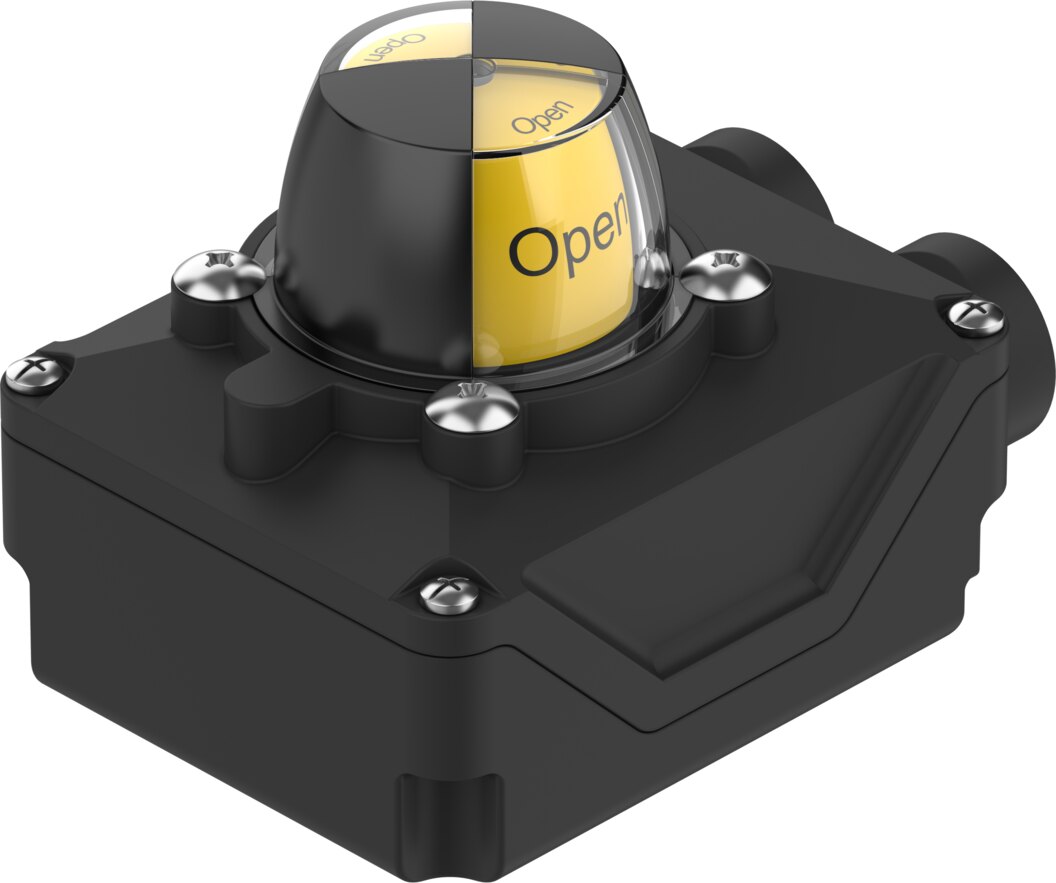

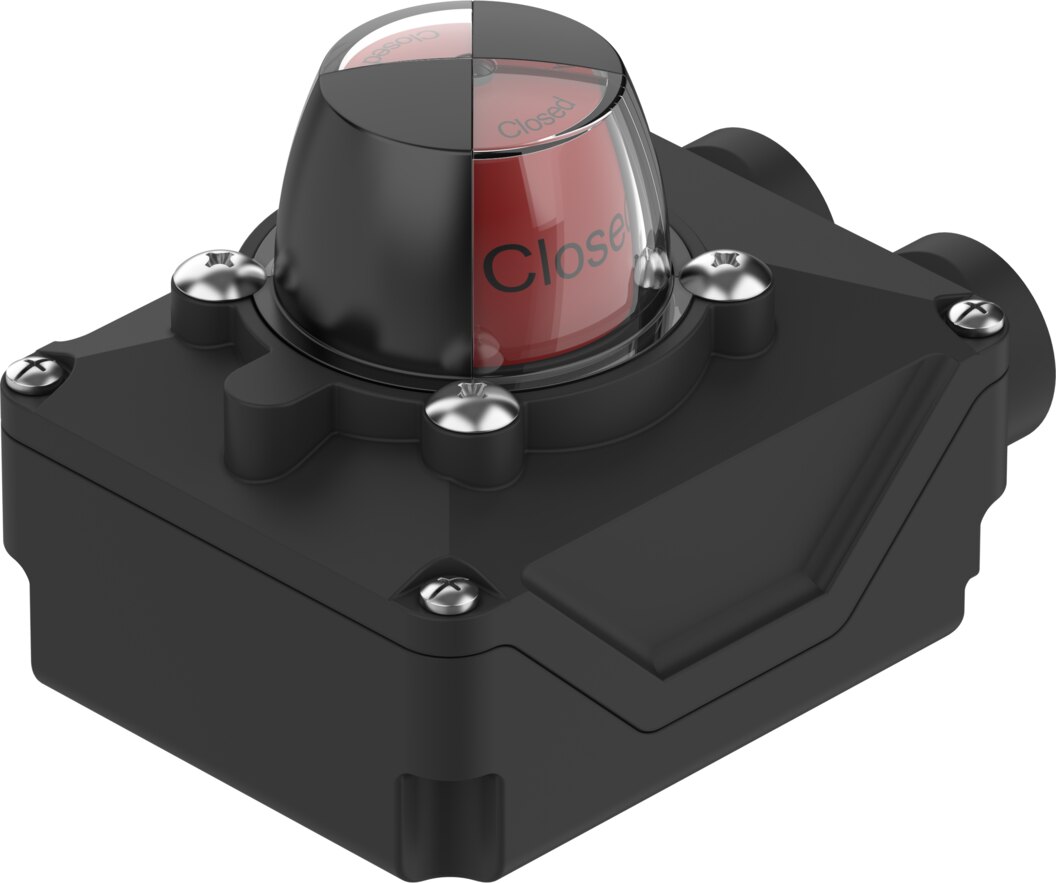

Limit switch box switching output contactless, 2-wire inductive angle 0 to 90° SRBK-CA5-YR90-N-1-ZU-C2 - Festo 8182185

Festo ✓ Original product Brand new

Reports the position of a quarter-turn actuator to the PLC. It mounts directly on the actuator interface. Festo limit switch box SRBK-CA5-YR90-N-1-ZU-C2 comes with angle detection adjustable 0 to 90° and switching output contactless, 2-wire, switching function N/O contact.

Net
€290.17
excl. VAT
Item FES-8182185
Manufacturer no. SRBK-CA5-YR90-N-1-ZU-C2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Festo limit switch box SRBK-CA5-YR90-N-1-ZU-C2: angle detection adjustable 0 to 90°, plus switching output contactless, 2-wire, switching function N/O contact. Reports the position of a quarter-turn actuator to the PLC. It mounts directly on the actuator interface.

Benefits

  • Angle detection adjustable 0 to 90°
  • Switching output contactless, 2-wire, switching function N/O contact
  • Switching element P&F NBB3-V3-Z4
  • Suitable up to SIL 3 (Safety Integrity Level)
  • Degree of protection IP66, IP67 for harsh industrial environments
  • Operating range -20 to 70 °C ambient temperature

Applications

For process valves and butterfly valves with quarter-turn actuators in process engineering. The order code SRBK-CA5-YR90-N-1-ZU-C2 defines the version unambiguously.

Technical data

FeatureValue
TypeSRBK-CA5-YR90-N-1-ZU-C2
Festo part number8182185
Certificationc CSA us (OL)
CE marking (see declaration of conformity)to EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)to UK RoHS regulations, to UK electrical equipment regulations
Certificate issuing authorityEurocert. 93927
Note on materialsRoHS compliant
Safety Integrity Level (SIL)SIL 3
Measured variableposition
Measuring principleinductive
Sensing range0 to 90°
Ambient temperature-20 to 70 °C
Switching outputcontactless, 2-wire
Switching element functionN/O contact
Max. output current DC100 mA
Voltage drop4 V
Minimum load current4 mA
Residual current0.4 to 0.55 mA
Operating voltage range DC5 to 60 V
Reverse polarity protectionfor all electrical connections
Microswitch typeP&F NBB3-V3-Z4
Electrical connectionscrew terminal
Electrical connection 1, connection typeterminal strip
Electrical connection 1, cable outletstraight
Electrical connection 1, designsquare
Electrical connection 1, connection technologyscrew terminal
Electrical connection 1, number of pins/wires10
Connectable conductor cross-section0.25 to 2.5 mm²
Cable glandM20x1.5
Dimensions W x L x H119 mm x 85 mm x 89 mm
Type of mountingon flange to ISO 5211
Mounting positionany
Product weight360 g
Housing colourblack
Material housingPA
Material sealsNBR
Material shaftPA
Material screwsstainless steel
Material mounting bracketPA
Material circliphigh-alloy stainless steel
Material protective capPC
Switching status indicationoptical
Position indicatoryellow / red
Angle detection setting range0 to 90°
Storage temperature-20 to 50 °C
Degree of protectionIP66, IP67
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Corrosion resistance class CRC3 - high corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Pollution degree3
Weight0.43 kg
ManufacturerFesto
Hersteller-NrSRBK-CA5-YR90-N-1-ZU-C2
EAN4052568622916
Zolltarifnummer85365019
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ColourBlack
MaterialPA
Seal materialNBR
Housing materialPA
Protection ratingIP66
Temperaturbereich-20-70 °C
Temperature (max.)70
