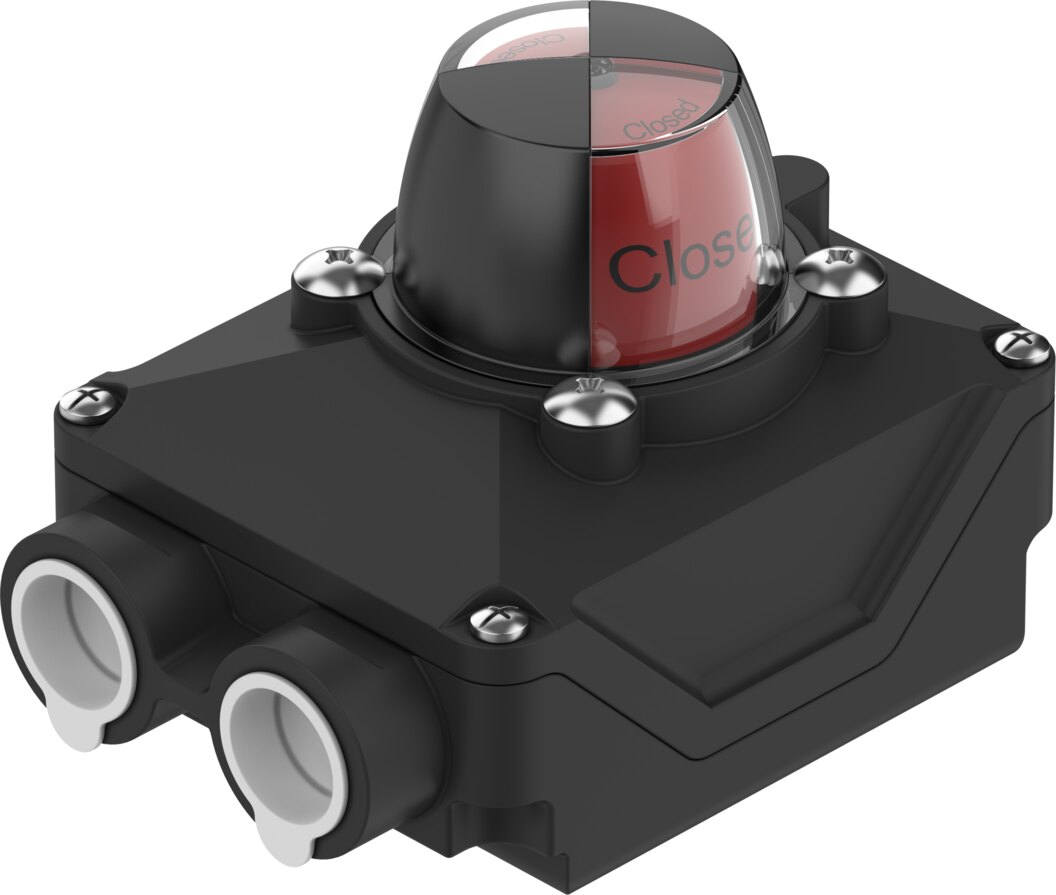

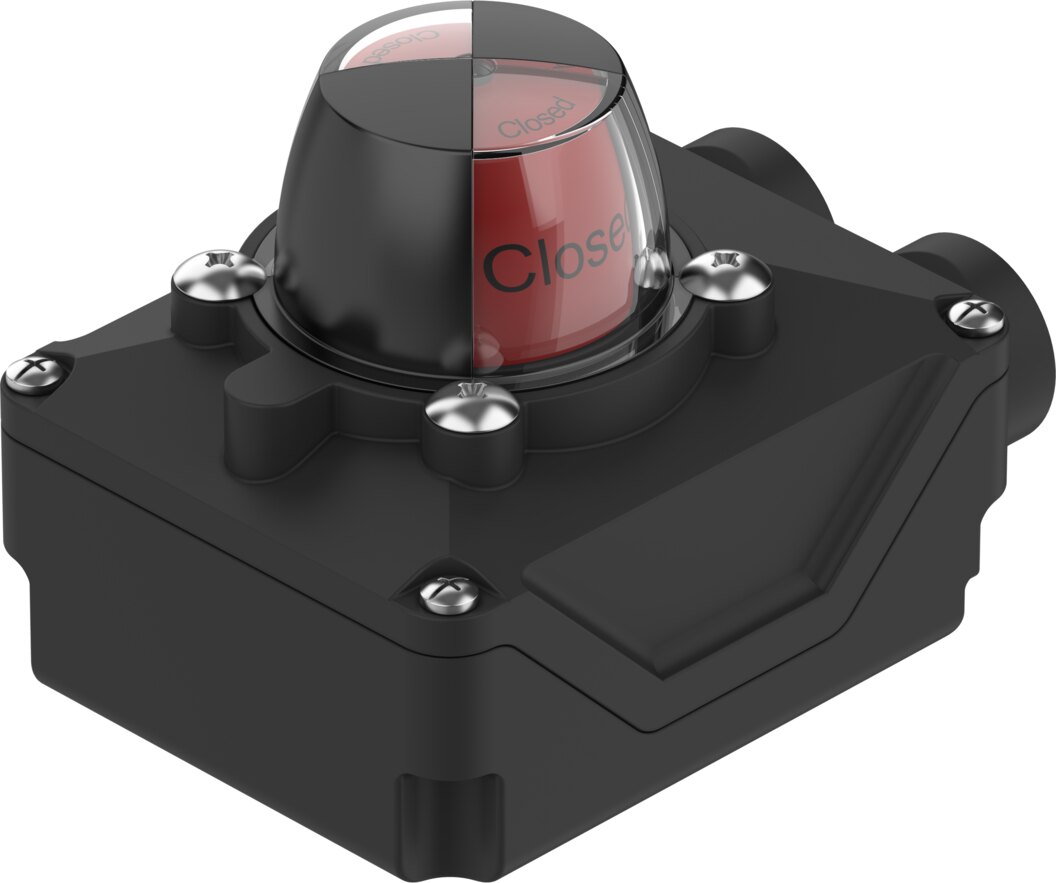

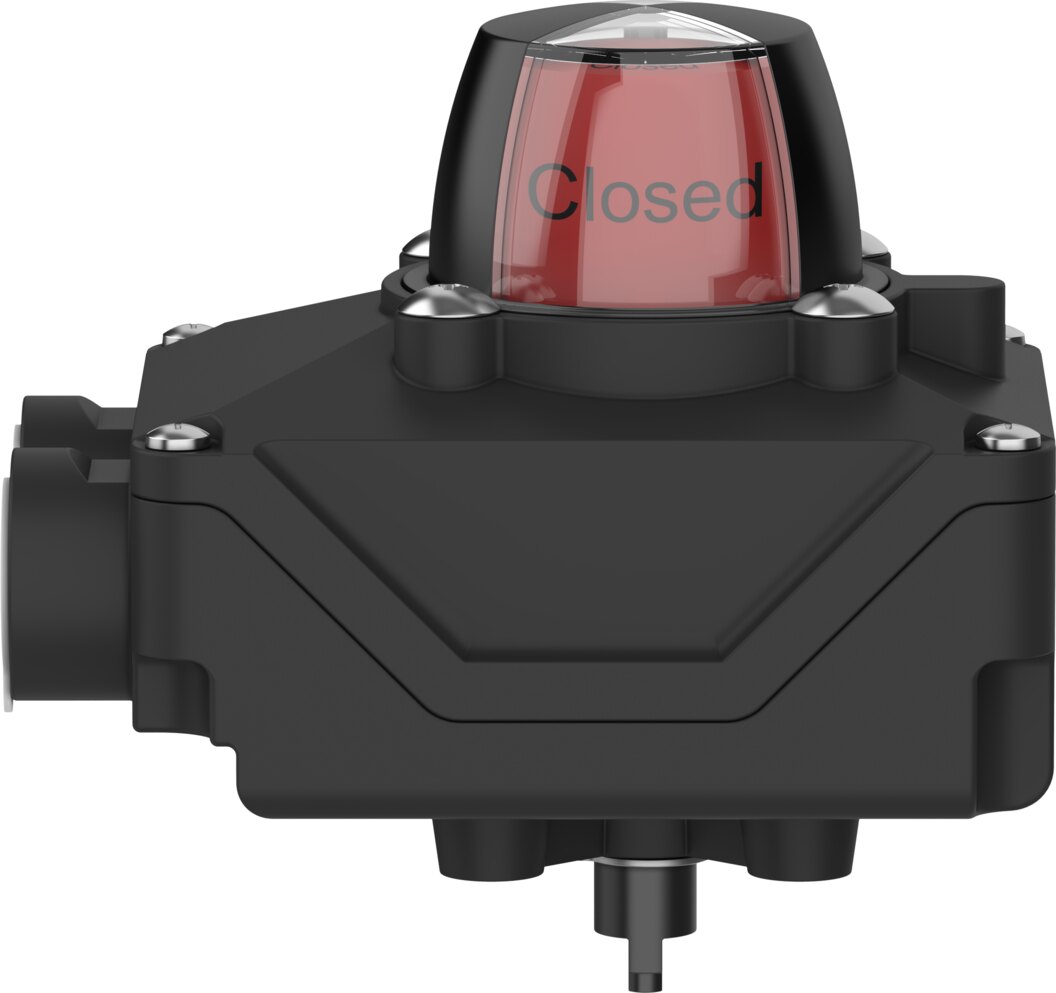

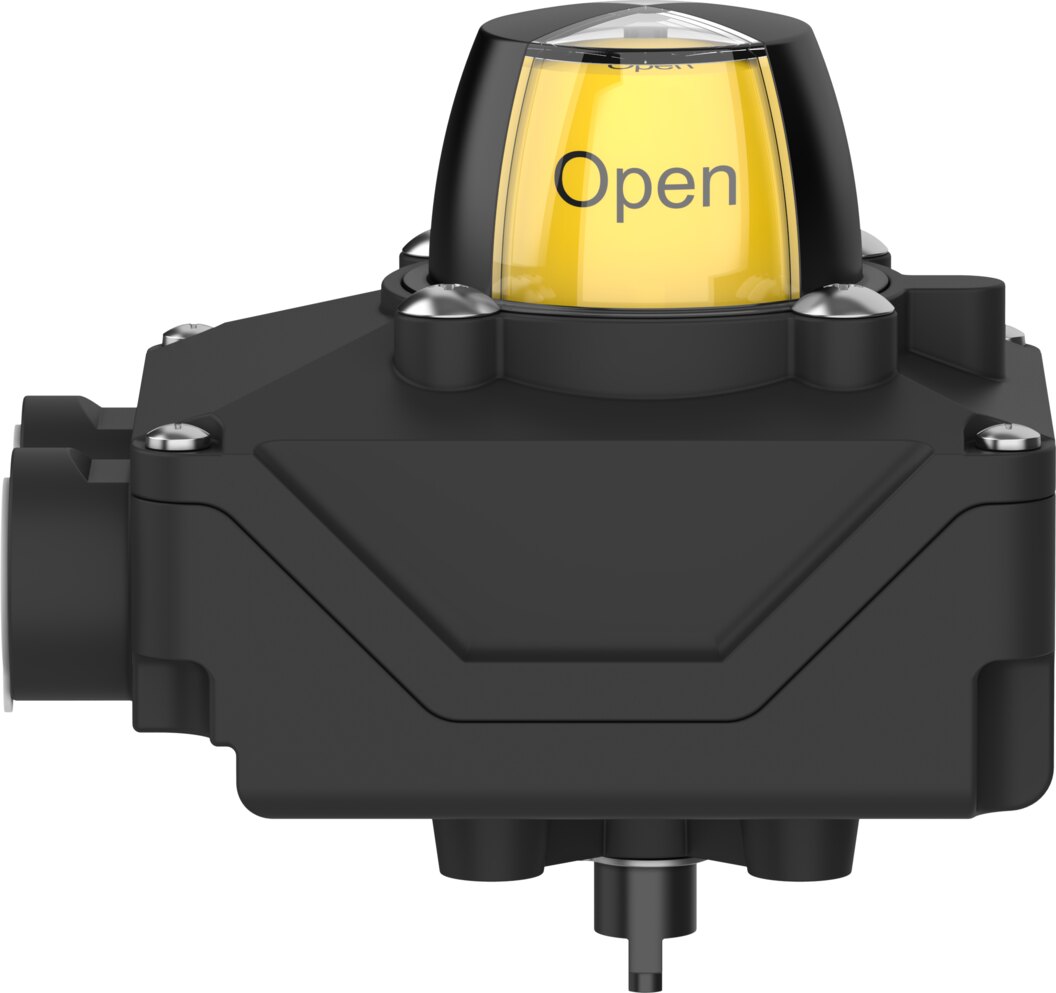

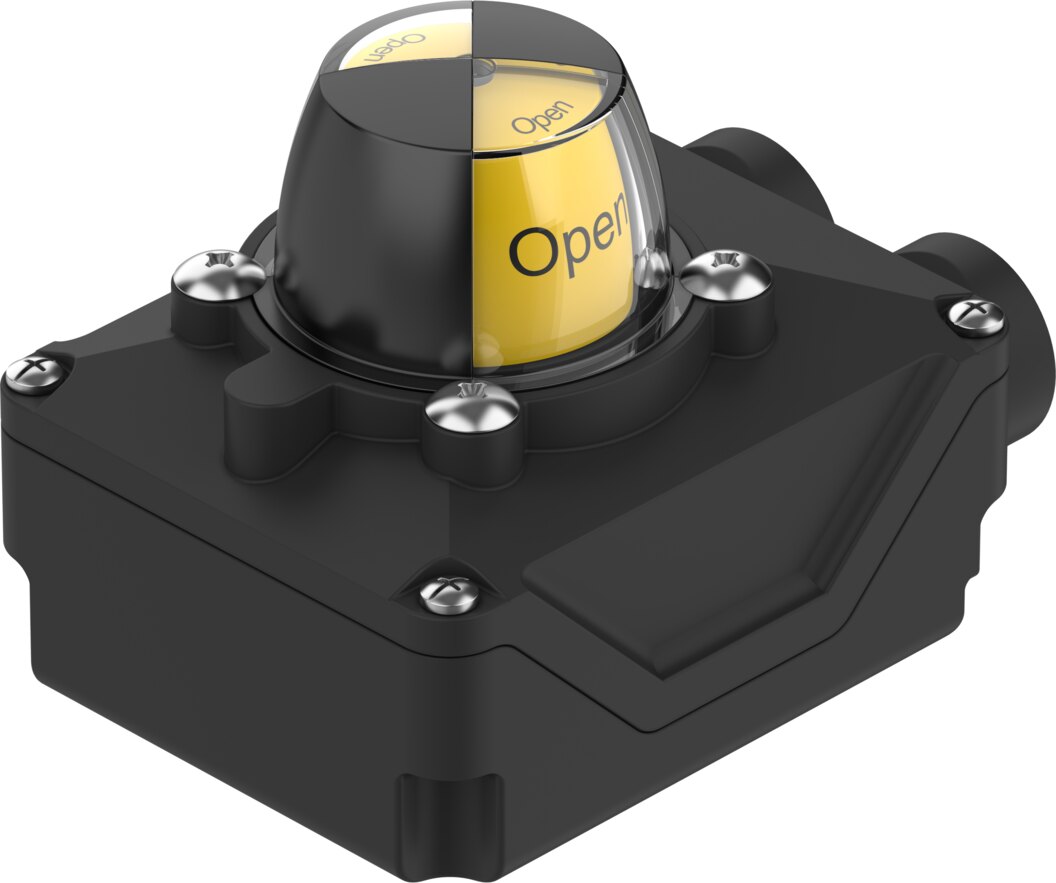

Limit switch box switching output contacting (gold) mechanical/electrical angle 0 to 90° SRBK-CA5-YR90-MW-1-1WG-C2 - Festo 8191215
Signals the end positions of a quarter-turn actuator. It mounts directly on the actuator interface. Festo limit switch box SRBK-CA5-YR90-MW-1-1WG-C2 comes with angle detection adjustable 0 to 90° and switching output contacting (gold), switching function changeover switch, single-pole.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Angle detection adjustable 0 to 90° and switching output contacting (gold), switching function changeover switch, single-pole: these are the key data of the Festo limit switch box SRBK-CA5-YR90-MW-1-1WG-C2. Signals the end positions of a quarter-turn actuator. It mounts directly on the actuator interface.
Benefits
- Angle detection adjustable 0 to 90°
- Switching output contacting (gold), switching function changeover switch, single-pole
- Switching element Omron SS-01
- Suitable up to SIL 3 (Safety Integrity Level)
- Degree of protection IP66, IP67, dust-tight and protected against water jets
- Operating range -20 to 70 °C ambient temperature
Applications
For process valves and butterfly valves with quarter-turn actuators in process engineering. To reorder, the type SRBK-CA5-YR90-MW-1-1WG-C2 or Festo number 8191215 is sufficient.
Technical data
| Feature | Value |
|---|---|
| Type | SRBK-CA5-YR90-MW-1-1WG-C2 |
| Festo part number | 8191215 |
| CE marking (see declaration of conformity) | to EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations, to UK electrical equipment regulations |
| Certificate issuing authority | Eurocert. 93927 |
| Note on materials | RoHS compliant |
| Safety Integrity Level (SIL) | SIL 3 |
| Measured variable | position |
| Measuring principle | mechanical/electrical |
| Sensing range | 0 to 90° |
| Ambient temperature | -20 to 70 °C |
| Switching output | contacting (gold) |
| Switching element function | changeover switch, single-pole |
| Max. switching output voltage DC | 30 V |
| Max. output current DC | 100 mA |
| Max. switching capacity DC | 3 W |
| Operating voltage range DC | 0 to 30 V |
| Microswitch type | Omron SS-01 |
| Electrical connection | screw terminal |
| Electrical connection 1, connection type | terminal strip |
| Electrical connection 1, cable outlet | straight |
| Electrical connection 1, design | square |
| Electrical connection 1, connection technology | screw terminal |
| Electrical connection 1, number of pins/wires | 10 |
| Connectable conductor cross-section | 0.25 to 2.5 mm² |
| Cable gland | M20x1.5 |
| Dimensions W x L x H | 119 mm x 85 mm x 89 mm |
| Type of mounting | on flange to ISO 5211 |
| Mounting position | any |
| Product weight | 360 g |
| Housing colour | black |
| Material housing | PA |
| Material seals | NBR |
| Material shaft | PA |
| Material screws | stainless steel |
| Material circlip | high-alloy stainless steel |
| Material protective cap | PC |
| Switching status indication | optical |
| Position indicator | yellow / red |
| Angle detection setting range | 0 to 90° |
| Storage temperature | -20 to 50 °C |
| Degree of protection | IP66, IP67 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Pollution degree | 3 |
| Weight | 0.42 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SRBK-CA5-YR90-MW-1-1WG-C2 |
| EAN | 4052568641092 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Black |
| Material | PA |
| Seal material | NBR |
| Housing material | PA |
| Protection rating | IP66 |
| Temperaturbereich | -20-70 °C |
| Temperature (max.) | 70 |
