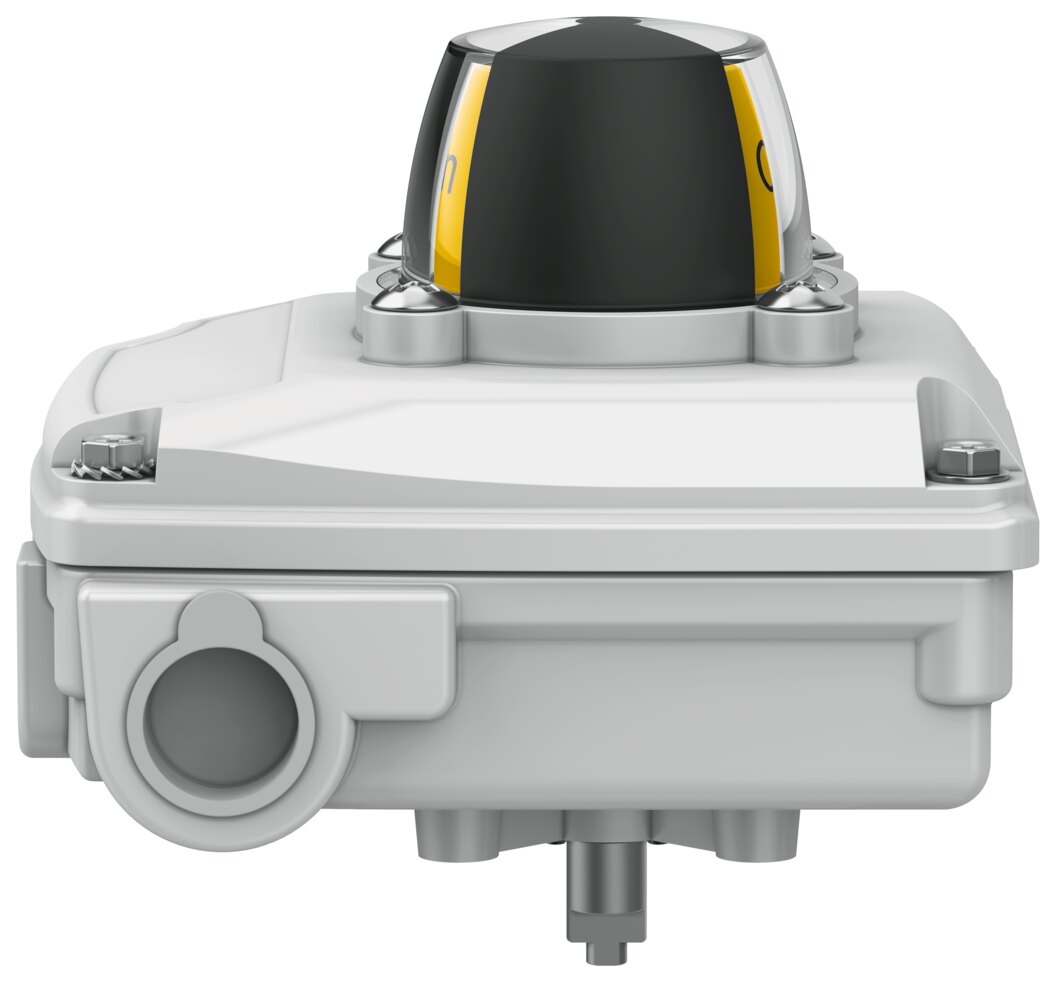

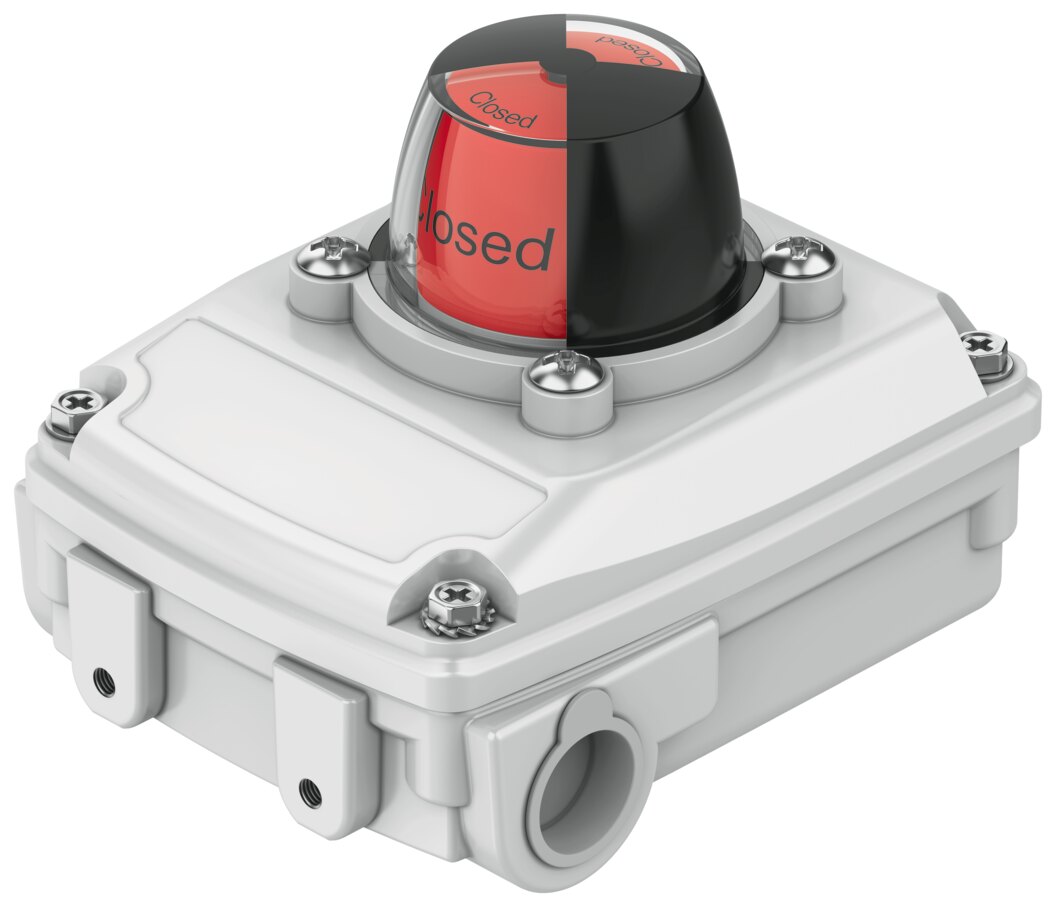

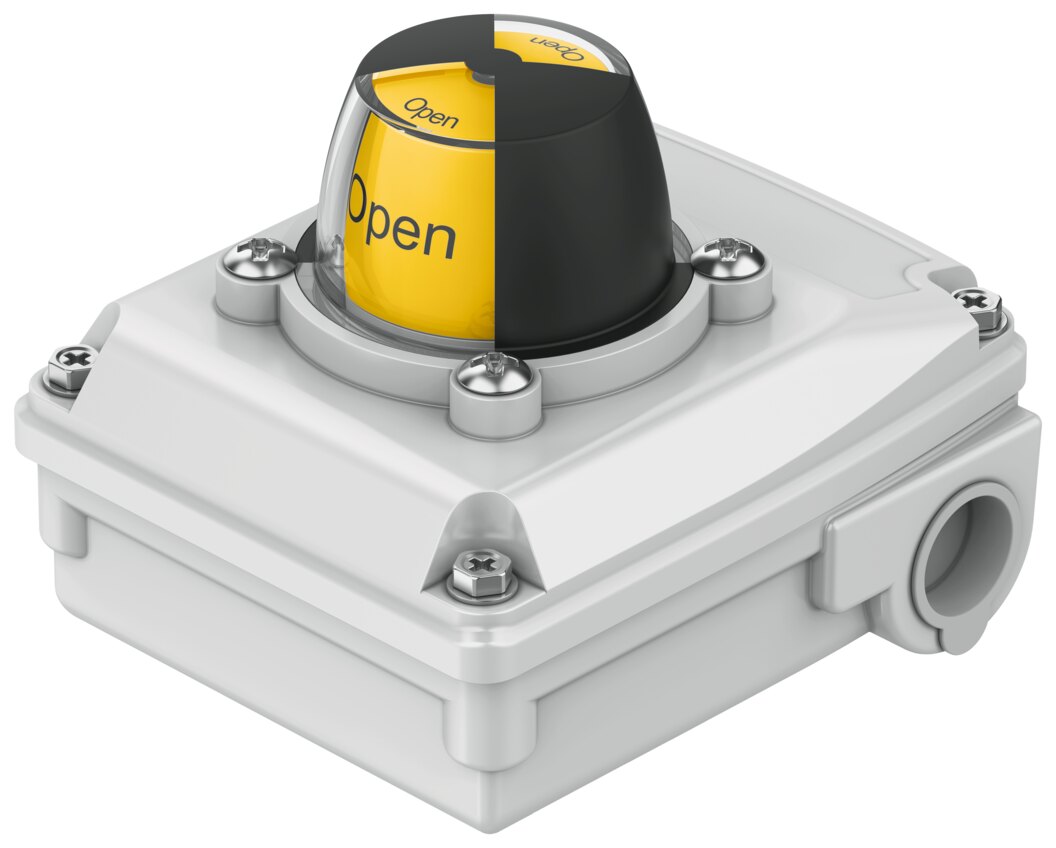

Limit switch box ATEX switching output NAMUR inductive angle 0 to 90° switching element P&F NCB2-V3-N0 SRBC-CA5-YR90-N-20N-ZC-C2-EX6 - Festo 8137105

Festo ✓ Original product Brand new

Monitors the position of quarter-turn actuators. Mounting is direct on the actuator interface. Festo limit switch box SRBC-CA5-YR90-N-20N-ZC-C2-EX6 comes with angle detection adjustable 0 to 90° and switching output NAMUR, switching function N/C contact.

Net
€169.75
excl. VAT
Item FES-8137105
Manufacturer no. SRBC-CA5-YR90-N-20N-ZC-C2-EX6
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Festo limit switch box SRBC-CA5-YR90-N-20N-ZC-C2-EX6: angle detection adjustable 0 to 90°, plus switching output NAMUR, switching function N/C contact. Monitors the position of quarter-turn actuators. Mounting is direct on the actuator interface.

Benefits

  • Angle detection adjustable 0 to 90°
  • Switching output NAMUR, switching function N/C contact
  • Switching element P&F NCB2-V3-N0
  • ATEX category II 1G (gas) and II 1D (dust)
  • Suitable up to SIL 3 (Safety Integrity Level)
  • Degree of protection IP67, NEMA 4/4X for harsh industrial environments

Applications

For process valves and butterfly valves with quarter-turn actuators in process engineering. The order code SRBC-CA5-YR90-N-20N-ZC-C2-EX6 defines the version unambiguously.

Technical data

FeatureValue
TypeSRBC-CA5-YR90-N-20N-ZC-C2-EX6
Festo part number8137105
CertificationRCM mark
CE marking (see declaration of conformity)to EU EMC Directive, to EU Explosion Protection Directive (ATEX), to EU RoHS Directive
UKCA marking (see declaration of conformity)to UK RoHS regulations
Explosion protectionZone 0 (ATEX), Zone 0 (CN), Zone 0 (IEC-EX), Zone 0 (UKEX), Zone 1 (ATEX), Zone 2 (ATEX), Zone 20 (ATEX), Zone 20 (CN), Zone 20 (IEC-EX), Zone 20 (UKEX), Zone 21 (ATEX), Zone 22 (ATEX)
ATEX category gasII 1G
Ex ignition protection type gasEx ia IIC T6/T5 Ga
ATEX category dustII 1D
Ex ignition protection type dustEx ia IIIC Txx°C Da
Ex protection approval outside the EUEPL Ga (CN), EPL Ga (GB), EPL Ga (IEC-EX)
Ex ambient temperaturesee ATEX certificate, see IECEx certificate
Max. input voltage Ui16 V
Effective internal inductance Li100 µH
Effective internal capacitance Ci100 nF
Max. input parameters of intrinsically safe circuitsee IECEx certificate, see ATEX certificate
Certificate issuing authorityEurocert. 93927, FTZU 17 ATEX 0105X, GYJ20.1409X, IECEx FTZU 17.0017X
Note on materialsRoHS compliant
Safety Integrity Level (SIL)SIL 3
Measuring principleinductive
Ambient temperature-20 to 80 °C
Switching outputNAMUR
Switching element functionN/C contact
Max. switching frequency2000 Hz
Max. output current DC3 mA
Residual current0 to 0.5 mA
Operating voltage range DC8.2 V
Microswitch typeP&F NCB2-V3-N0
Electrical connectionscrew terminal
Electrical connection 1, connection typeterminal strip
Electrical connection 1, cable outletstraight
Electrical connection 1, connection technologyspring-loaded terminal
Electrical connection 1, number of pins/wires10
Connectable conductor cross-section0.25 to 2.5 mm²
Permissible cable diameter6 to 12 mm
Dimensions W x L x H114 mm x 98 mm x 122 mm
Type of mountingon flange to ISO 5211
Mounting positionany
Product weight800 g
Housing colourgrey
Material housingdie-cast aluminium
Material sealsNBR
Material shafthigh-alloy stainless steel
Material screwshigh-alloy stainless steel
Material mounting brackethigh-alloy stainless steel
Material circliphigh-alloy stainless steel
Material washerhigh-alloy stainless steel
Material cover capPC
Position indicatoryellow / red
Angle detection setting range0 to 90°
Storage temperature-20 to 50 °C
Degree of protectionIP67, NEMA 4/4X
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Corrosion resistance class CRC0 - no corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriessuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Pollution degree3
Weight0.75 kg
ManufacturerFesto
Hersteller-NrSRBC-CA5-YR90-N-20N-ZC-C2-EX6
EAN4052568586669
Zolltarifnummer85365080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ColourGrey
MaterialDie-cast aluminium
Seal materialNBR
Housing materialDie-cast aluminium
SeriesSRBC
Protection ratingIP67
Temperaturbereich-20-80 °C
Temperature (max.)80
