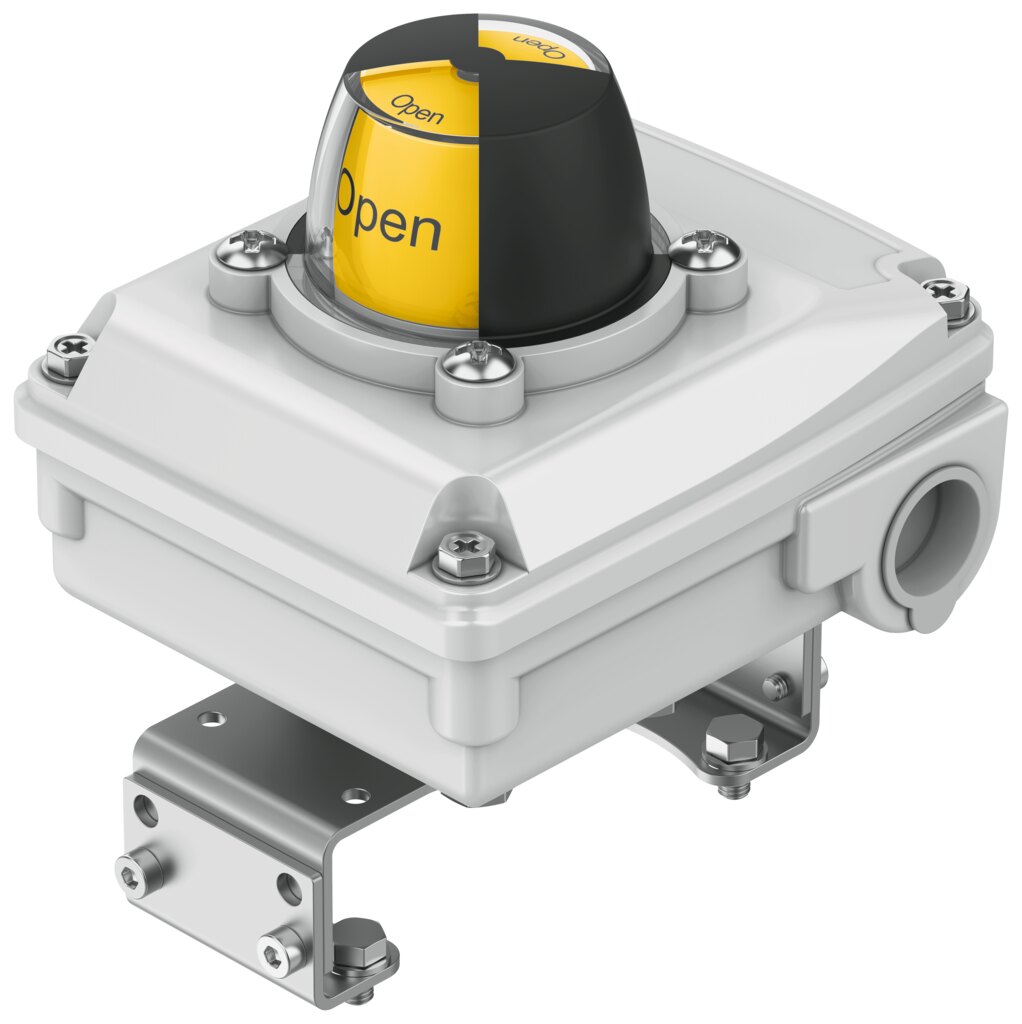

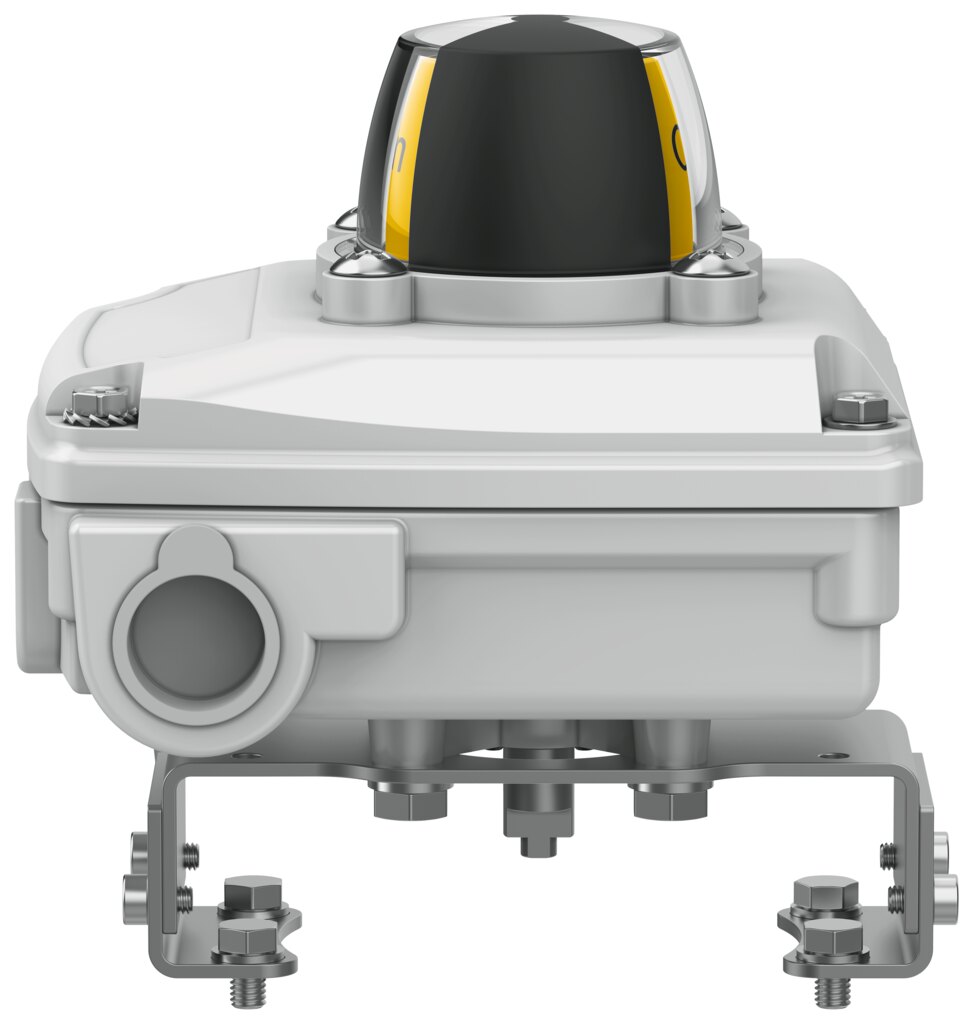

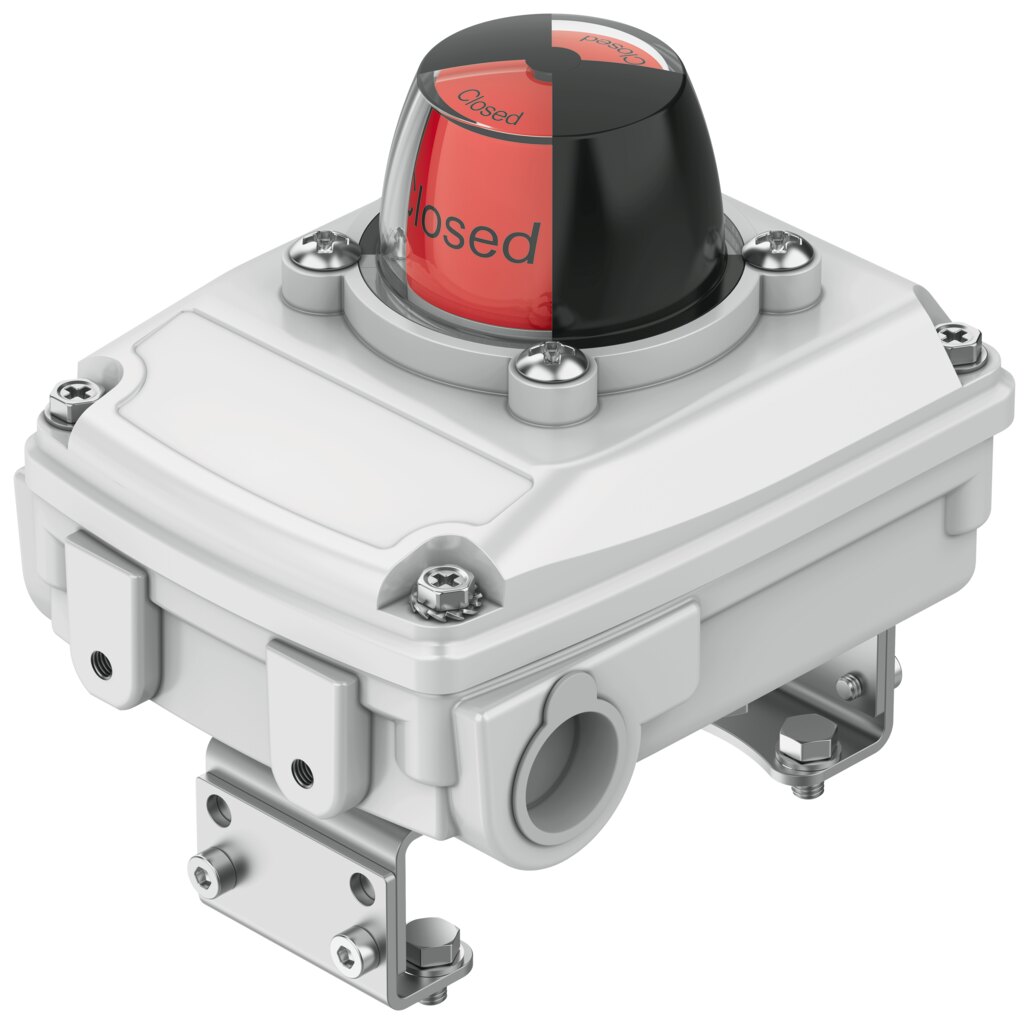

Limit switch box ATEX switching output NAMUR inductive angle 0 to 90° switching element P&F NCB2-V3-N0 SRBC-CA4-YR90-N-20N-ZC-C2-EX6 - Festo 8137096
Reports the position of a quarter-turn actuator to the PLC. Mounting is direct on the actuator interface. The Festo limit switch box SRBC-CA4-YR90-N-20N-ZC-C2-EX6 comes with angle detection adjustable 0 to 90° and switching output NAMUR, switching function N/C contact.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo limit switch box SRBC-CA4-YR90-N-20N-ZC-C2-EX6: angle detection adjustable 0 to 90°, plus switching output NAMUR, switching function N/C contact. Reports the position of a quarter-turn actuator to the PLC. Mounting is direct on the actuator interface.
Benefits
- Angle detection adjustable 0 to 90°
- Switching output NAMUR, switching function N/C contact
- Switching element P&F NCB2-V3-N0
- ATEX category II 1G (gas) and II 1D (dust)
- Suitable up to SIL 3 (Safety Integrity Level)
- Mounting interface to VDI/VDE 3845 size AA 1, VDI/VDE 3845 size AA 2, VDI/VDE 3845 size AA 3
Applications
For process valves and butterfly valves with quarter-turn actuators in process engineering. For replacements, compare the order code SRBC-CA4-YR90-N-20N-ZC-C2-EX6 with the installed part.
Technical data
| Feature | Value |
|---|---|
| Type | SRBC-CA4-YR90-N-20N-ZC-C2-EX6 |
| Festo part number | 8137096 |
| Certification | RCM mark |
| CE marking (see declaration of conformity) | to EU EMC Directive, to EU Explosion Protection Directive (ATEX), to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| Explosion protection | Zone 0 (ATEX), Zone 0 (CN), Zone 0 (IEC-EX), Zone 0 (UKEX), Zone 1 (ATEX), Zone 2 (ATEX), Zone 20 (ATEX), Zone 20 (CN), Zone 20 (IEC-EX), Zone 20 (UKEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| ATEX category gas | II 1G |
| Ex ignition protection type gas | Ex ia IIC T6/T5 Ga |
| ATEX category dust | II 1D |
| Ex ignition protection type dust | Ex ia IIIC Txx°C Da |
| Ex protection approval outside the EU | EPL Ga (CN), EPL Ga (GB), EPL Ga (IEC-EX) |
| Ex ambient temperature | see ATEX certificate, see IECEx certificate |
| Max. input voltage Ui | 16 V |
| Effective internal inductance Li | 100 µH |
| Effective internal capacitance Ci | 100 nF |
| Max. input parameters of intrinsically safe circuit | see IECEx certificate, see ATEX certificate |
| Certificate issuing authority | Eurocert. 93927, FTZU 17 ATEX 0105X, GYJ20.1409X, IECEx FTZU 17.0017X |
| Note on materials | RoHS compliant |
| Safety Integrity Level (SIL) | SIL 3 |
| Measuring principle | inductive |
| Ambient temperature | -20 to 80 °C |
| Switching output | NAMUR |
| Switching element function | N/C contact |
| Max. switching frequency | 2000 Hz |
| Max. output current DC | 3 mA |
| Operating voltage range DC | 8.2 V |
| Microswitch type | P&F NCB2-V3-N0 |
| Electrical connection | screw terminal |
| Electrical connection 1, connection type | terminal strip |
| Electrical connection 1, cable outlet | straight |
| Electrical connection 1, connection technology | spring-loaded terminal |
| Electrical connection 1, number of pins/wires | 10 |
| Connectable conductor cross-section | 0.25 to 2.5 mm² |
| Permissible cable diameter | 6 to 12 mm |
| Dimensions W x L x H | 127 mm x 98 mm x 122 mm |
| Interface for positioner and position feedback to standard | VDI/VDE 3845 size AA 1, VDI/VDE 3845 size AA 2, VDI/VDE 3845 size AA 3 |
| Mounting position | any |
| Product weight | 800 g |
| Housing colour | grey |
| Material housing | die-cast aluminium |
| Material seals | NBR |
| Material shaft | high-alloy stainless steel |
| Material screws | high-alloy stainless steel |
| Material mounting bracket | high-alloy stainless steel |
| Material circlip | high-alloy stainless steel |
| Material washer | high-alloy stainless steel |
| Material cover cap | PC |
| Position indicator | yellow / red |
| Angle detection setting range | 0 to 90° |
| Storage temperature | -20 to 50 °C |
| Degree of protection | IP66, IP67, NEMA 4/4X |
| Corrosion resistance class CRC | 0 - no corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Pollution degree | 3 |
| Manufacturer | Festo |
| Hersteller-Nr | SRBC-CA4-YR90-N-20N-ZC-C2-EX6 |
| EAN | 4052568586072 |
| Zolltarifnummer | 85365080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Grey |
| Material | Die-cast aluminium |
| Seal material | NBR |
| Housing material | Die-cast aluminium |
| Series | SRBC |
| Protection rating | IP66 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
