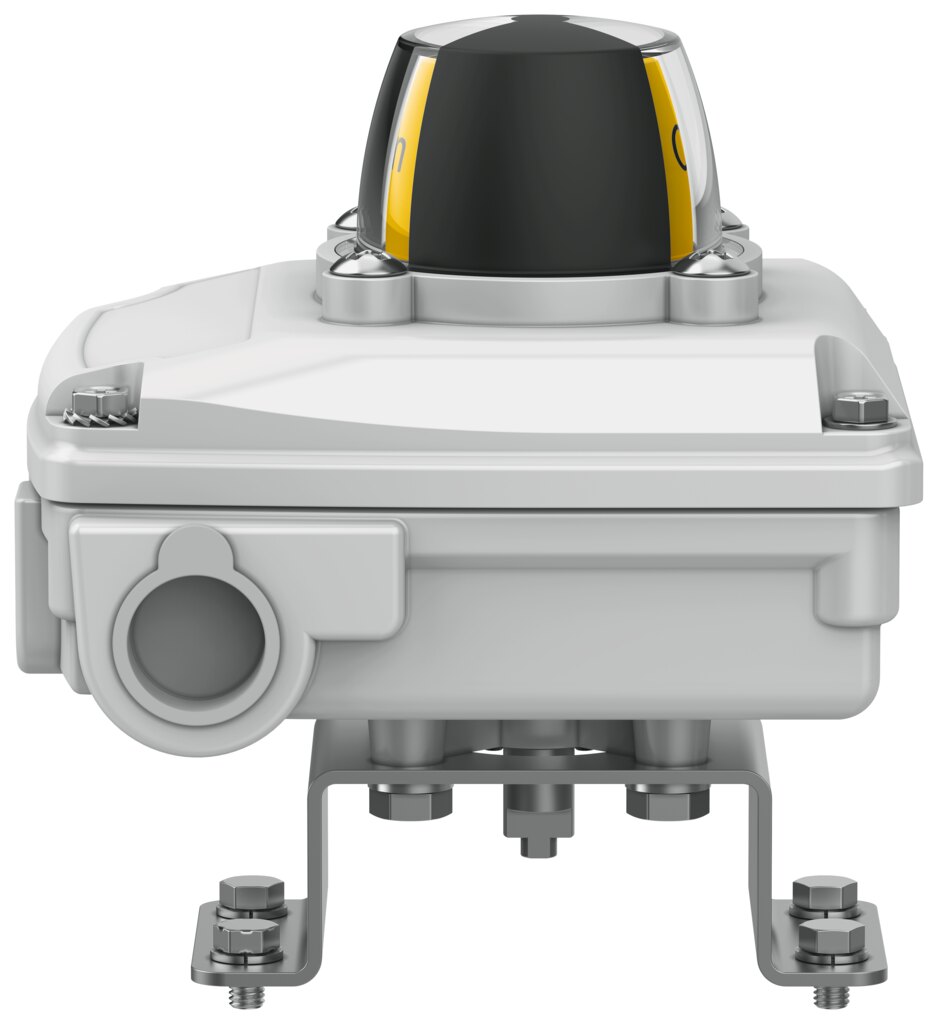

Limit switch box ATEX switching output contacting (gold) mechanical/electrical angle 0 to 90° SRBC-CA3-YR90-MW-1-1WG-C2-EX6 - Festo 8137093
Signals the end positions of a quarter-turn actuator. Mounting is direct on the actuator interface. Festo limit switch box SRBC-CA3-YR90-MW-1-1WG-C2-EX6 comes with angle detection adjustable 0 to 90° and switching output contacting (gold), switching function changeover switch, single-pole.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo limit switch box SRBC-CA3-YR90-MW-1-1WG-C2-EX6: angle detection adjustable 0 to 90°, plus switching output contacting (gold), switching function changeover switch, single-pole. Signals the end positions of a quarter-turn actuator. Mounting is direct on the actuator interface.
Benefits
- Angle detection adjustable 0 to 90°
- Switching output contacting (gold), switching function changeover switch, single-pole
- Switching element Omron D2SW-01L1T
- ATEX category II 1G (gas) and II 1D (dust)
- Suitable up to SIL 3 (Safety Integrity Level)
- Mounting interface to VDI/VDE 3845 size AA 1
Applications
For process valves and butterfly valves with quarter-turn actuators in process engineering. To reorder, the type SRBC-CA3-YR90-MW-1-1WG-C2-EX6 or Festo number 8137093 is sufficient.
Technical data
| Feature | Value |
|---|---|
| Type | SRBC-CA3-YR90-MW-1-1WG-C2-EX6 |
| Festo part number | 8137093 |
| CE marking (see declaration of conformity) | to EU Explosion Protection Directive (ATEX), to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| Explosion protection | Zone 0 (ATEX), Zone 0 (CN), Zone 0 (IEC-EX), Zone 0 (UKEX), Zone 1 (ATEX), Zone 2 (ATEX), Zone 20 (ATEX), Zone 20 (CN), Zone 20 (IEC-EX), Zone 20 (UKEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| ATEX category gas | II 1G |
| Ex ignition protection type gas | Ex ia IIC T6/T5 Ga |
| ATEX category dust | II 1D |
| Ex ignition protection type dust | Ex ia IIIC Txx°C Da |
| Ex protection approval outside the EU | EPL Ga (CN), EPL Ga (GB), EPL Ga (IEC-EX) |
| Ex ambient temperature | see ATEX certificate, see IECEx certificate |
| Max. input voltage Ui | 30 V |
| Effective internal inductance Li | negligible |
| Effective internal capacitance Ci | negligible |
| Max. input parameters of intrinsically safe circuit | see IECEx certificate, see ATEX certificate |
| Certificate issuing authority | Eurocert. 93927, FTZU 17 ATEX 0105X, GYJ20.1409X, IECEx FTZU 17.0017X |
| Note on materials | RoHS compliant |
| Safety Integrity Level (SIL) | SIL 3 |
| Measuring principle | mechanical/electrical |
| Ambient temperature | -40 to 80 °C |
| Switching output | contacting (gold) |
| Switching element function | changeover switch, single-pole |
| Max. output current DC | 100 mA |
| Operating voltage range DC | 0 to 30 V |
| Microswitch type | Omron D2SW-01L1T |
| Electrical connection | screw terminal |
| Electrical connection 1, connection type | terminal strip |
| Electrical connection 1, cable outlet | straight |
| Electrical connection 1, connection technology | spring-loaded terminal |
| Electrical connection 1, number of pins/wires | 10 |
| Connectable conductor cross-section | 0.25 to 2.5 mm² |
| Permissible cable diameter | 6 to 12 mm |
| Dimensions W x L x H | 127 mm x 98 mm x 122 mm |
| Interface for positioner and position feedback to standard | VDI/VDE 3845 size AA 1 |
| Mounting position | any |
| Product weight | 800 g |
| Housing colour | grey |
| Material housing | die-cast aluminium |
| Material seals | VMQ (silicone) |
| Material shaft | high-alloy stainless steel |
| Material screws | high-alloy stainless steel |
| Material mounting bracket | high-alloy stainless steel |
| Material circlip | high-alloy stainless steel |
| Material washer | high-alloy stainless steel |
| Material cover cap | PC |
| Position indicator | yellow / red |
| Angle detection setting range | 0 to 90° |
| Storage temperature | -20 to 50 °C |
| Degree of protection | IP66 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Corrosion resistance class CRC | 0 - no corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Pollution degree | 3 |
| Weight | 0.8 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SRBC-CA3-YR90-MW-1-1WG-C2-EX6 |
| EAN | 4052568586041 |
| Zolltarifnummer | 85365080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Grey |
| Material | Die-cast aluminium |
| Housing material | Die-cast aluminium |
| Series | SRBC |
| Protection rating | IP66 |
| Temperaturbereich | -40-80 °C |
| Temperature (max.) | 80 |
