Pressure sensor -1 to 10 bar 4 mm tubing SPAN-B11R-Q4-PN-PN-L1 - Festo 8134894

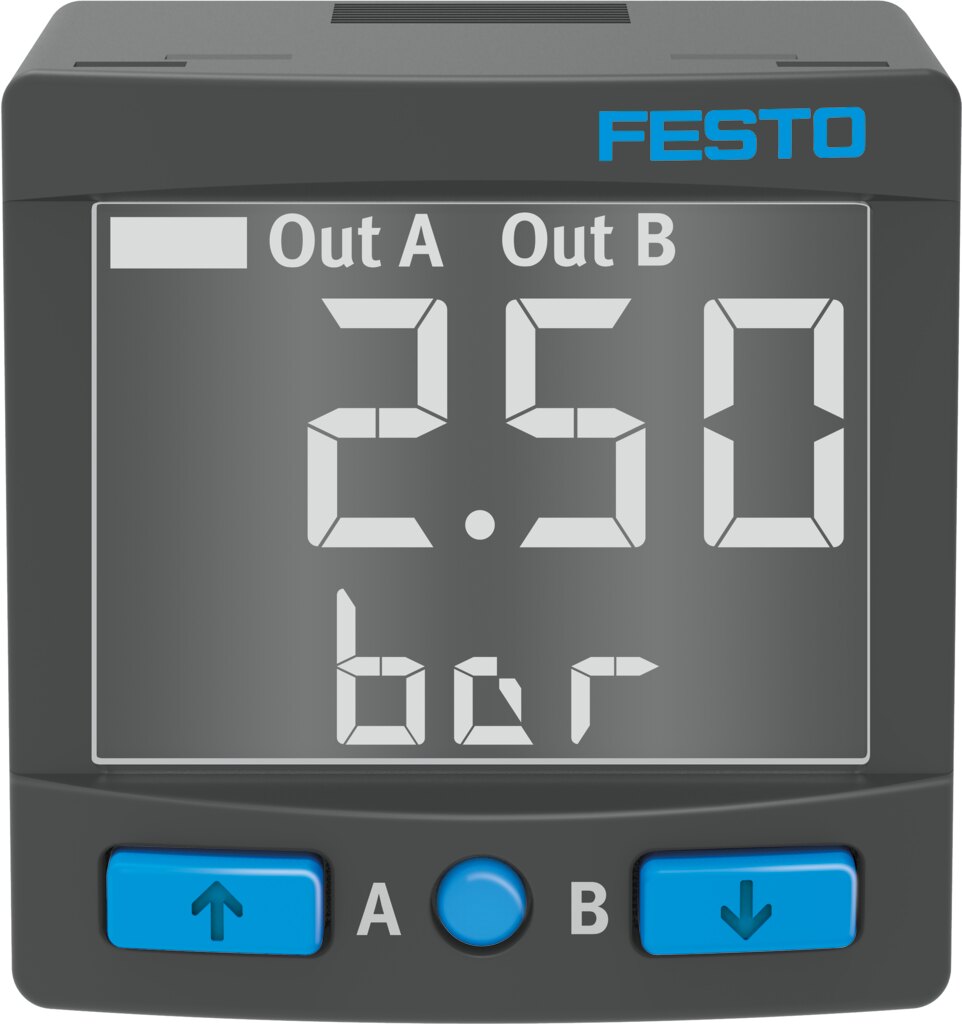

The pressure sensor SPAN-B11R-Q4-PN-PN-L1 is designed for relative pressure from -1 to 10 bar and switches via two switching outputs, PNP or NPN selectable. The SPAN measures with ±1.5 %FS accuracy and repeats readings to ±0.3 %FS, display illuminated LCD. The pneumatic connection is a push-in connection for 4 mm tubing, the electrical connection a 4-pin plug.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo SPAN-B11R-Q4-PN-PN-L1 keeps relative pressure between -1 and 10 bar under control.
Benefits
- Measuring range -1 to 10 bar, overload pressure 15 bar
- Accuracy ±1.5 %FS, repetition accuracy ±0.3 %FS
- Two switching outputs, PNP or NPN selectable, switching function window comparator, threshold value comparator, auto difference monitoring
- Illuminated LCD, setting via teach-in, via display and buttons
- Degree of protection IP40, corrosion resistance class 2 (moderate corrosion stress)
Applications
Operating medium of the SPAN-B11R-Q4-PN-PN-L1: compressed air to ISO 8573-1:2010 [7:4:4], inert gas, mounting front panel mounting, with thread, via wall/surface bracket. One device for positive pressure and vacuum: the -1 to 10 bar range suits circuits that alternate between suction and blow-off. Supply voltage is 15 to 30 V DC.
Technical data
| Type | SPAN-B11R-Q4-PN-PN-L1 |
|---|---|
| Festo part number | 8134894 |
| Approval | RCM, c UL us - Listed (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC, To UK RoHS instructions |
| Certificate issuing authority | UL E322346 |
| Note on materials | RoHS compliant |
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor |
| Start value for pressure measuring range | -1 bar |
| End value for pressure measuring range | 10 bar |
| Max. overload pressure | 15 bar |
| Overload pressure | 15 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Lubricated operation possible |
| Media temperature | 0 to 50 °C |
| Ambient temperature | 0 to 50 °C |
| Accuracy in ± % FS | 1.5 %FS |
| Repetition accuracy in ± %FS | 0.3 %FS |
| Temperature coefficient in ± %FS/K | 0.05 %FS/K |
| Switching output | 2 x PNP or 2 x NPN, switchable |
| Switching function | Window comparator, Threshold value comparator, Auto difference monitoring |
| Switching element function | NC or NO, switchable |
| Max. output current | 100 mA |
| Short circuit current rating | Yes |
| Operational voltage range DC | 15 to 30 V |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connector system | Plug pattern L1J |
| Electrical connection 1, number of connections/cores | 4 |
| Type of mounting | Front panel mounting, With thread, Via wall/surface bracket |
| Mounting position | Any |
| Pneumatic connection | For tubing O.D. 4 mm |
| Product weight | 25 g |
| Material housing | Reinforced PA |
| Material in contact with the medium | Fluoro rubber, NBR, Reinforced PA |
| Display type | Illuminated LCD |
| Setting options | Teach-in, Via display and buttons |
| Protection against tampering | PIN code |
| Setting range threshold value | 0 to 100 % |
| Setting range hysteresis | 0 to 90 % |
| Degree of protection | IP40 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Weight | 0.031 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SPAN-B11R-Q4-PN-PN-L1 |
| EAN | 4052568553142 |
| Zolltarifnummer | 90262020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Measuring range max. [bar] | 10 |
| Medientemperatur [°C] | 0 bis 50 |
| Series | SPAN |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
