Through-beam sensor operating range up to 20000 mm, red laser light SOOE-TB-L-PNLK-T - Festo 8075671

Festo ✓ Original product Brand new

The through-beam sensor SOOE-TB-L-PNLK-T detects objects between transmitter and receiver at up to 20000 mm using red laser light. Push-pull switching output (switchable, PNP dark switching, NPN light switching), plus IO-Link.

Net
€163.60
excl. VAT
Item FES-8075671
Manufacturer no. SOOE-TB-L-PNLK-T
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo through-beam sensor SOOE-TB-L-PNLK-T detects objects between transmitter and receiver at up to 20000 mm using red laser light. It comes in a block design with a housing made of PC, PMMA.

Benefits

  • Operating range up to 20000 mm, light spot max 50 mm at 20000 mm
  • M8x1 plug (3-pin), operating voltage 10 to 30 V DC
  • IO-Link interface, setting via teach-in, IO-Link or potentiometer
  • Laser class 1
  • Push-pull switching output, switching frequency up to 1250 Hz
  • Degree of protection IP65, IP67, IP69K, ambient temperature -40 to 60 °C

Application

Typical tasks include presence checks, pass-through monitoring and counting parts on conveyor lines. Mounting is via through-holes for M3 screws.

Technical data

TypeSOOE-TB-L-PNLK-T
DesignBlock design
Conforms to standardEN 60947-5-2
ApprovalRCM, c UL us - Listed (OL)
CE mark (see declaration of conformity)To EU EMC Directive, in accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS regulations
Certificate issuing authorityUL E232949
Note on materialsRoHS compliant
Measuring principleOptoelectronic
Detection methodThrough-beam sensor, transmitter, receiver
Type of lightLaser, red
Maximum light spot50 mm at 20000 mm
Operating distance0 to 20000 mm
Ambient temperature-40 to 60 °C
Switching outputPush-pull
Switching element functionSwitchable, PNP dark switching, NPN light switching
Maximum switching frequency1250 Hz
Maximum output current100 mA
Voltage drop0 to 1.5 V
Timer functionVia IO-Link
Short circuit current ratingPulsed
ProtocolIO-Link
IO-Link, Protocol versionDevice V 1.1
IO-Link, communication modeCOM2 (38.4 kBaud)
IO-Link, SIO-Mode supportYes
IO-Link, Port classA
IO-Link, Process data length OUT1 bit (Emitter), 2 bit (Receiver)
IO-Link, Process data content OUT1 bit (emitter disable), 1 bit (Hold)
IO-Link, Process data length IN2 bit (Receiver)
IO-Link, Process data content IN1 bit (Stability Alarm), 1 bit SSC (Switching Signal)
IO-Link, Min. cycle time2.3 ms
IO-Link, Data storage required2000 byte
Operational voltage range DC10 to 30 V
Residual ripple10%
No-load supply current14 mA
Reverse polarity protectionFor all electrical connections

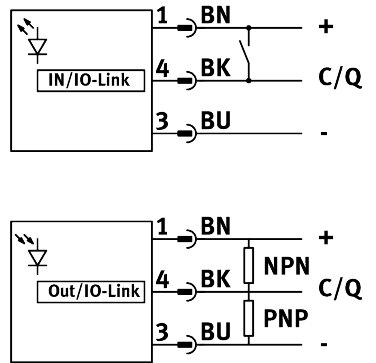

Electrical connection 1, connection typePlug
Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
Electrical connection 1, number of connections/cores3
Electrical connection 1, type of mountingScrew-type lock
Material electrical contactGold-plated brass
Type of mountingVia through-hole for M3 screw
Tightening torque0.8 Nm
Mounting positionAny
Product weight20 g
Material housingPC, PMMA
Ready status indicationGreen LED
Switching status indicationYellow LED
Function reserve indicationFlashing yellow LED
Setting optionsIO-Link, poti, Teach-in
Degree of protectionIP65, IP67, IP69K
Insulation voltage500 V
Immunity to surge1 kV
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Laser safety class1
Pollution degree3
Weight0.03 kg
ManufacturerFesto
Hersteller-NrSOOE-TB-L-PNLK-T
EAN4052568446437
Zolltarifnummer85365019
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Protection ratingIP65
Temperaturbereich-40-60 °C
Temperature (max.)60
