Retro-reflective sensor push-pull PNP/NPN range 0 to 1000 mm SOOD-RS-R-PN - Festo 8075657

Festo ✓ Original product Brand new

Transmitter and receiver share one housing, a reflector on the opposite side closes the light path. Festo retro-reflective sensor SOOD-RS-R-PN comes with operating range 0 to 1000 mm and switching output push-pull, switching function PNP dark switching, NPN light switching.

Net
€115.13
excl. VAT
Item FES-8075657
Manufacturer no. SOOD-RS-R-PN
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Operating range 0 to 1000 mm and switching output push-pull, switching function PNP dark switching, NPN light switching: these are the key data of the Festo retro-reflective sensor SOOD-RS-R-PN. Transmitter and receiver share one housing, a reflector on the opposite side closes the light path.

Benefits

  • Operating range 0 to 1000 mm
  • Switching output push-pull, switching function PNP dark switching, NPN light switching
  • Switching frequency up to 800 Hz
  • Light type red, LED, light spot max. 60 mm with 800 mm
  • Degree of protection IP65, IP67 for harsh industrial environments
  • Electrical connection M8x1, A-coded to EN 61076-2-104

Applications

Typical tasks are presence checks, counting and positioning on conveyors, in assembly and in packaging. To reorder, the type SOOD-RS-R-PN or Festo number 8075657 is sufficient.

Technical data

FeatureValue
TypeSOOD-RS-R-PN
Festo part number8075657
Designblock design
Conforms to standardEN 60947-5-2
CertificationRCM mark, c UL us - Recognized (OL)
CE marking (see declaration of conformity)to EU EMC Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)to UK RoHS regulations
Certificate issuing authorityUL E232949
Note on materialsRoHS compliant
Measuring principleoptoelectronic
Detection methodretro-reflective sensor
Type of lightred, LED
Max. light spot60 mm with 800 mm
Operating range0 to 1000 mm
Distance sensor to reflector40 to 1000 mm SARA-R-Q50-S, 100 to 1200 mm SARA-R-Q50-MC, 100 to 800 mm SARA-RF-Q100-S, 100 to 2000 mm SARA-RF-Q100-MC, 40 to 1000 mm SARA-R-Q20-S, 100 to 800 mm SARA-R-Q20-MC, 100 to 500 mm SARA-R-Q14-M, 100 to 800 mm SARA-R-D20-M
Ambient temperature-25 to 60 °C
Reference materialreference reflector: SARA-R-Q50-S

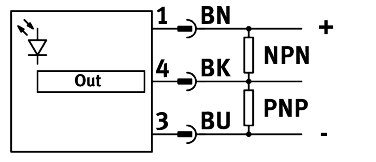

Switching outputpush-pull
Switching element functionPNP dark switching, NPN light switching
Max. switching frequency800 Hz
Max. output current50 mA
Voltage drop0 to 1.5 V
Short-circuit protectionpulsed
Operating voltage range DC10 to 30 V
Residual ripple10 %
No-load supply current10 mA
Reverse polarity protectionfor all electrical connections
Electrical connection 1, connection typecable with plug
Electrical connection 1, connection technologyM8x1, A-coded to EN 61076-2-104
Electrical connection 1, number of pins/wires3
Electrical connection 1, type of mountingscrew-type lock with AF 9
Material plug contactsbrass, gold-plated
Cable length0.15 m
Cable characteristicsstandard
Material cable sheathTPE-U(PUR)
Type of mountingwith through-holes
Tightening torque0.5 Nm
Mounting positionany
Product weight10 g
Material housingPC, TPE-U(PU)
Ready status indicationLED green
Switching status indicationLED yellow
Function reserve indicationLED yellow, flashing
Degree of protectionIP65, IP67
Insulation voltage500 V
Surge immunity1 kV
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Pollution degree3
Weight0.031 kg
ManufacturerFesto
Hersteller-NrSOOD-RS-R-PN
EAN4052568446291
Zolltarifnummer85365019
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
BauformBlockbauweise
NormDIN EN 60947-5-2
Protection ratingIP65
Temperature (max.)60
