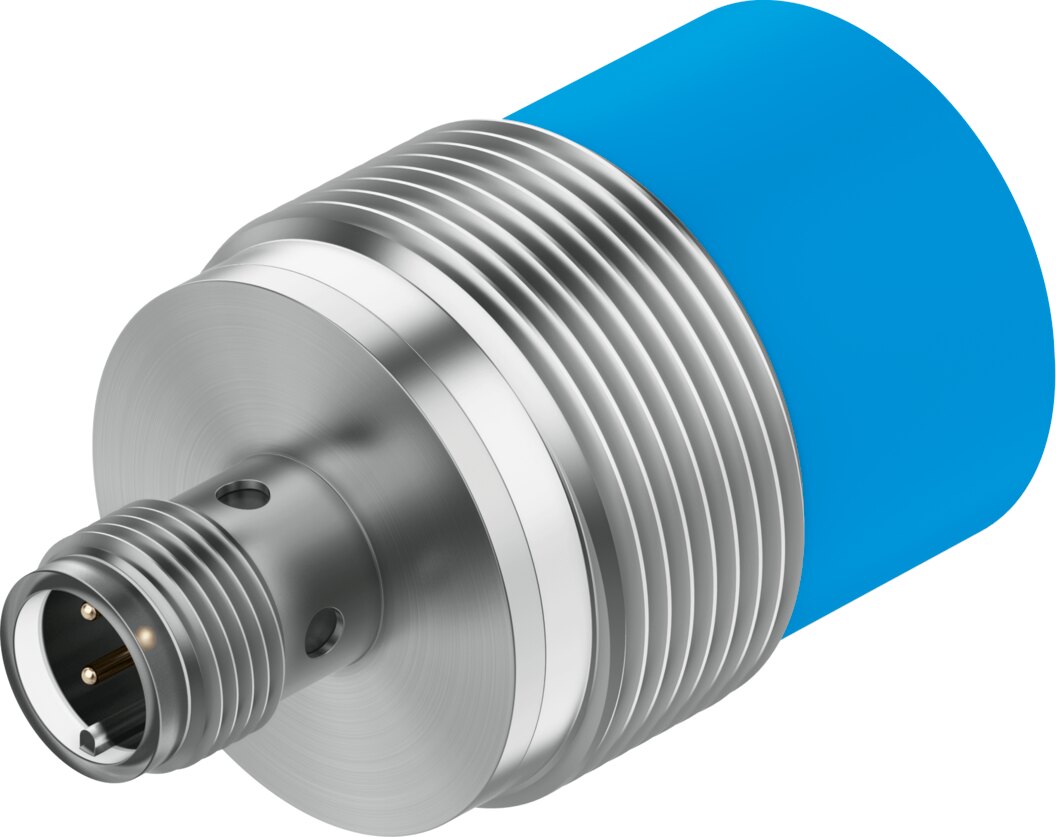

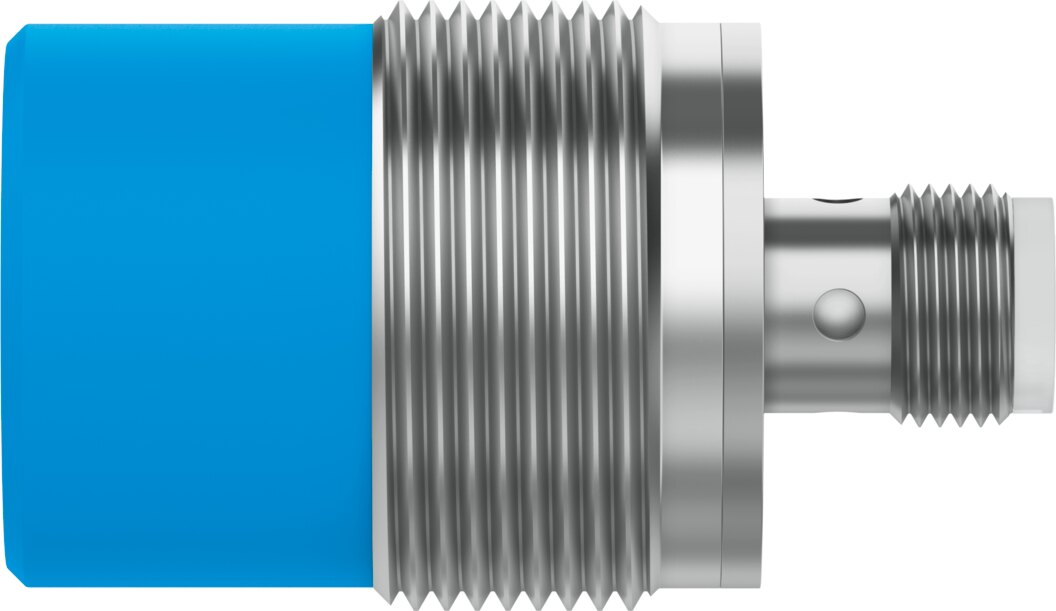

Inductive distance sensor M30 non-flush measuring range 0 to 20 mm IO-Link M12x1 plug SOIA-M30PNB-PNLK-M12 - Festo 8161209

Festo ✓ Original product Brand new

Measures the distance to metal objects within 0 to 20 mm at 0.01 mm resolution. IO-Link provides the measured value, speed and diagnostics, plus a switching output (PNP/NPN switchable). M30 housing for non-flush mounting, IP65, IP67 protection.

Net
€80.04
excl. VAT
Item FES-8161209
Manufacturer no. SOIA-M30PNB-PNLK-M12
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Instead of a plain switching signal, the Festo inductive distance sensor SOIA-M30PNB-PNLK-M12 outputs the displacement as a measured value, range 0 to 20 mm. It also captures speeds of 1 to 3000 mm/s.

Benefits

  • 0.01 mm resolution for displacement
  • ±0.2 mm repetition accuracy
  • Linearity error 3 % FS according to the manufacturer
  • IO-Link V1.1 for parameterisation and diagnostics
  • IP65, IP67 protection, dust-tight and protected against temporary immersion

Applications

Suited to monitoring gripper strokes, clamping travel and workpiece positions where a simple limit switch is not enough. Connection via M12x1 plug.

Technical data

FeatureValue
TypeSOIA-M30PNB-PNLK-M12
Festo part number8161209
Designround
Conforms to standardEN 60947-5-2
Approvalc UL us - Listed (OL)
CE mark (see declaration of conformity)to EU EMC Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)to UK RoHS regulations
Note on materialsRoHS-compliant
Measured variableposition, displacement
Measuring principleinductive
Measuring methoddistance sensor
Rated switching distance0 to 20 mm
Note on rated switching distanceSSC1.SP1: 17.0 mm, SSC2.SP1: 10.0 mm, factory setting
Displacement measuring range0 to 20 mm
Ambient temperature-25 to 70 °C
Displacement resolution0.01 mm
Repetition accuracy±0.2 mm
Temperature drift±10 %

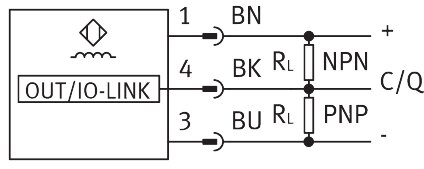

Switching outputPNP/NPN switchable, push-pull
Switching element functionswitchable
Note on hysteresisfactory setting 5 %FS
Hysteresis1 to 20 %FS
Linearity error FS3 %
Switch-on time100 ms
Speed measuring range1 to 3000 mm/s
Speed accuracy± 20 %FS
Speed repetition accuracy± 5 %FS
Acceleration value range-3270 to 3270 m/s²
Max switching frequency400 Hz
Max output current100 mA
Voltage drop1 V
Inductive protective circuitintegrated
Min load current0 mA
Off-state current0.03 mA
Short circuit protectionpulsed
Overload protectionavailable
ProtocolIO-Link
IO-Link, revision IDV1.1
IO-Link, device profileFunction Object detection, Function Product URI, Function Teach two values, identification and diagnostics, Smart Sensor - SSP 4.1.1
IO-Link, transmission rateCOM2
IO-Link, SIO mode supportyes
IO-Link, port typeClass A
IO-Link, process data length input32 bit
IO-Link, process data content INMaintenance warning 1 bit DSC, Motion diagnostic 2 bit DSC
IO-Link, minimum cycle time3.2 ms
IO-Link, data storage required308 byte
Operating voltage range DC10 to 30 V
Note on operating voltage range DC18 to 30 V in IO-Link mode
Residual ripple20 %
No-load supply current17 mA
Reverse polarity protectionyes
Electrical connection, connection typeplug
Electrical connection, connector systemM12x1, A-coded to EN 61076-2-101
Electrical connection, number of pins/wires3
Electrical connection, type of mountingscrew-type lock, not rotatable
SizeM30
Type of mountingwith locknut
Tightening torque0 to 30 Nm
Mounting typenon-flush
Housing colourblue, grey
Housing materialPBT
Material locknutbrass
Reference materialstructural steel, 1.0037, S235JR
Switching status indicationyellow LED
Storage temperature-40 to 85 °C
Degree of protectionIP65, IP67
Housing pressure resistance1 bar
Immunity to magnetic fieldsbelow 50 µT
Insulation voltage30 V
Surge immunity0.5 kV
Corrosion resistance class CRC3 - high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Weight0.11 kg
ManufacturerFesto
Hersteller-NrSOIA-M30PNB-PNLK-M12
EAN4052568785000
Zolltarifnummer85365019
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
NormDIN EN 61076-2-101, DIN EN 60947-5-2
Protection ratingIP65
Temperature (max.)70
