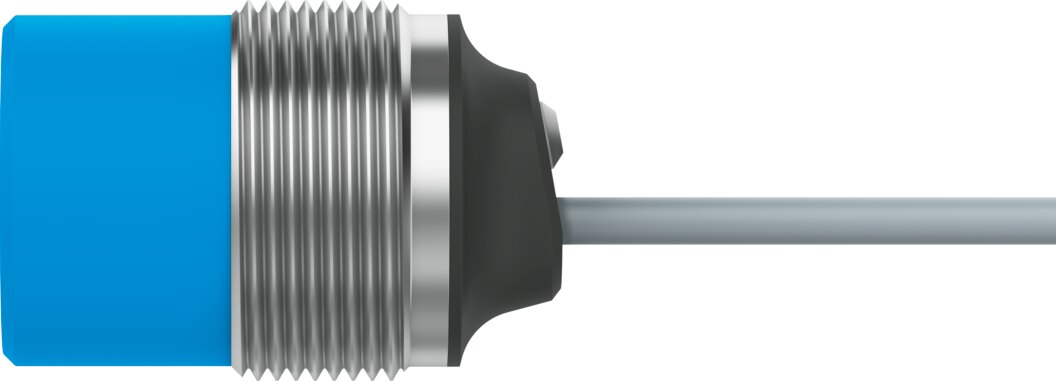

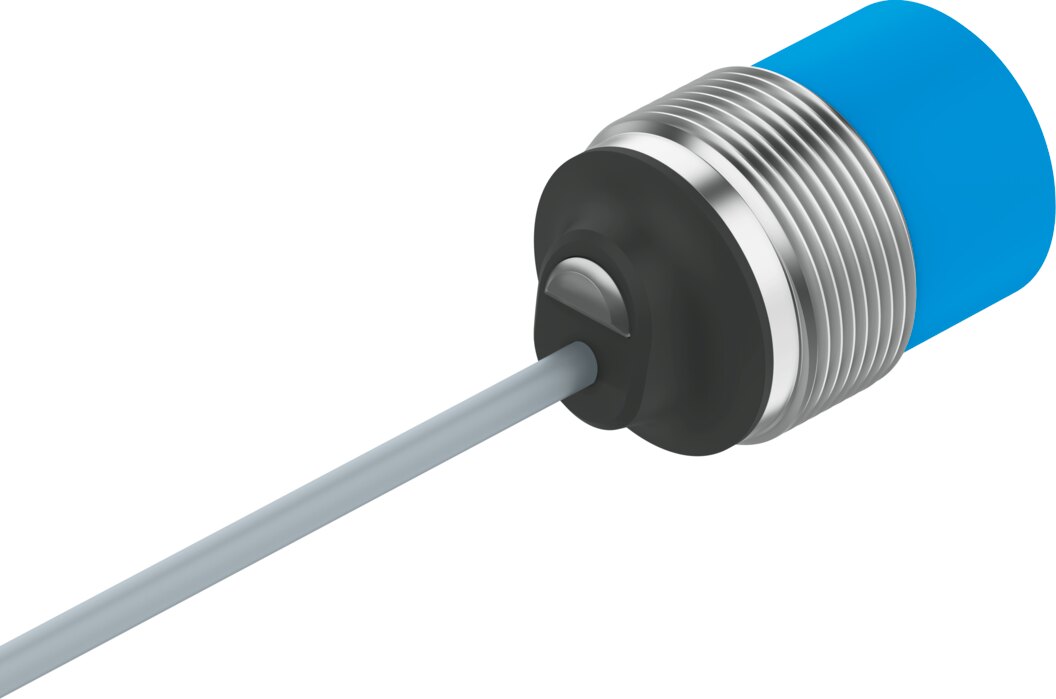

Inductive distance sensor M30 non-flush measuring range 0 to 20 mm IO-Link 2.5 m cable SOIA-M30PNB-PNLK-LE - Festo 8161208
Measures the distance to metal objects within 0 to 20 mm at 0.01 mm resolution. IO-Link provides the measured value, speed and diagnostics, plus a switching output (PNP/NPN switchable). M30 housing for non-flush mounting, IP65, IP67 protection.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Instead of a plain switching signal, the Festo inductive distance sensor SOIA-M30PNB-PNLK-LE outputs the displacement as a measured value, range 0 to 20 mm. It also captures speeds of 1 to 3000 mm/s.
Benefits
- 0.01 mm resolution for displacement
- ±0.2 mm repetition accuracy
- Linearity error 3 % FS according to the manufacturer
- IO-Link V1.1 for parameterisation and diagnostics
- IP65, IP67 protection, dust-tight and protected against temporary immersion
Applications
Suited to monitoring gripper strokes, clamping travel and workpiece positions where a simple limit switch is not enough. Connection via 2.5 m cable.
Technical data

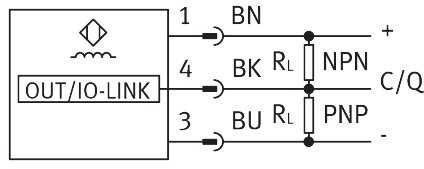

| Feature | Value |
|---|---|
| Type | SOIA-M30PNB-PNLK-LE |
| Festo part number | 8161208 |
| Design | round |
| Conforms to standard | EN 60947-5-2 |
| Approval | c UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU EMC Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| Note on materials | RoHS-compliant |
| Measured variable | position, displacement |
| Measuring principle | inductive |
| Measuring method | distance sensor |
| Rated switching distance | 0 to 20 mm |
| Note on rated switching distance | SSC1.SP1: 17.0 mm, SSC2.SP1: 10.0 mm, factory setting |
| Displacement measuring range | 0 to 20 mm |
| Ambient temperature | -25 to 70 °C |
| Displacement resolution | 0.01 mm |
| Repetition accuracy | ±0.2 mm |
| Temperature drift | ±10 % |
| Switching output | PNP/NPN switchable, push-pull |
| Switching element function | switchable |
| Note on hysteresis | factory setting 5 %FS |
| Hysteresis | 1 to 20 %FS |
| Linearity error FS | 3 % |
| Switch-on time | 100 ms |
| Speed measuring range | 1 to 3000 mm/s |
| Speed accuracy | ± 20 %FS |
| Speed repetition accuracy | ± 5 %FS |
| Acceleration value range | -3270 to 3270 m/s² |
| Max switching frequency | 400 Hz |
| Max output current | 100 mA |
| Voltage drop | 1 V |
| Inductive protective circuit | integrated |
| Min load current | 0 mA |
| Off-state current | 0.03 mA |
| Short circuit protection | pulsed |
| Overload protection | available |
| Protocol | IO-Link |
| IO-Link, revision ID | V1.1 |
| IO-Link, device profile | Function Object detection, Function Product URI, Function Teach two values, identification and diagnostics, Smart Sensor - SSP 4.1.1 |
| IO-Link, transmission rate | COM2 |
| IO-Link, SIO mode support | yes |
| IO-Link, port type | Class A |
| IO-Link, process data length input | 32 bit |
| IO-Link, process data content IN | Maintenance warning 1 bit DSC, Motion diagnostic 2 bit DSC |
| IO-Link, minimum cycle time | 3.2 ms |
| IO-Link, data storage required | 308 byte |
| Operating voltage range DC | 10 to 30 V |
| Note on operating voltage range DC | 18 to 30 V in IO-Link mode |
| Residual ripple | 20 % |
| No-load supply current | 17 mA |
| Reverse polarity protection | yes |
| Electrical connection, connection type | cable |
| Electrical connection, number of pins/wires | 3 |
| Cable length | 2.5 m |
| Cable sheath colour | grey |
| Cable sheath material | PUR |
| Cable diameter | 3.8 mm |
| Nominal conductor cross section | 0.25 mm² |
| Size | M30 |
| Type of mounting | with locknut |
| Tightening torque | 0 to 30 Nm |
| Mounting type | non-flush |
| Housing colour | blue, grey |
| Housing material | PBT |
| Material locknut | brass |
| Reference material | structural steel, 1.0037, S235JR |
| Switching status indication | yellow LED |
| Storage temperature | -40 to 85 °C |
| Degree of protection | IP65, IP67 |
| Housing pressure resistance | 1 bar |
| Immunity to magnetic fields | below 50 µT |
| Insulation voltage | 30 V |
| Surge immunity | 0.5 kV |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Weight | 0.145 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SOIA-M30PNB-PNLK-LE |
| EAN | 4052568784997 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Norm | DIN EN 60947-5-2 |
| Protection rating | IP65 |
| Temperature (max.) | 70 |
