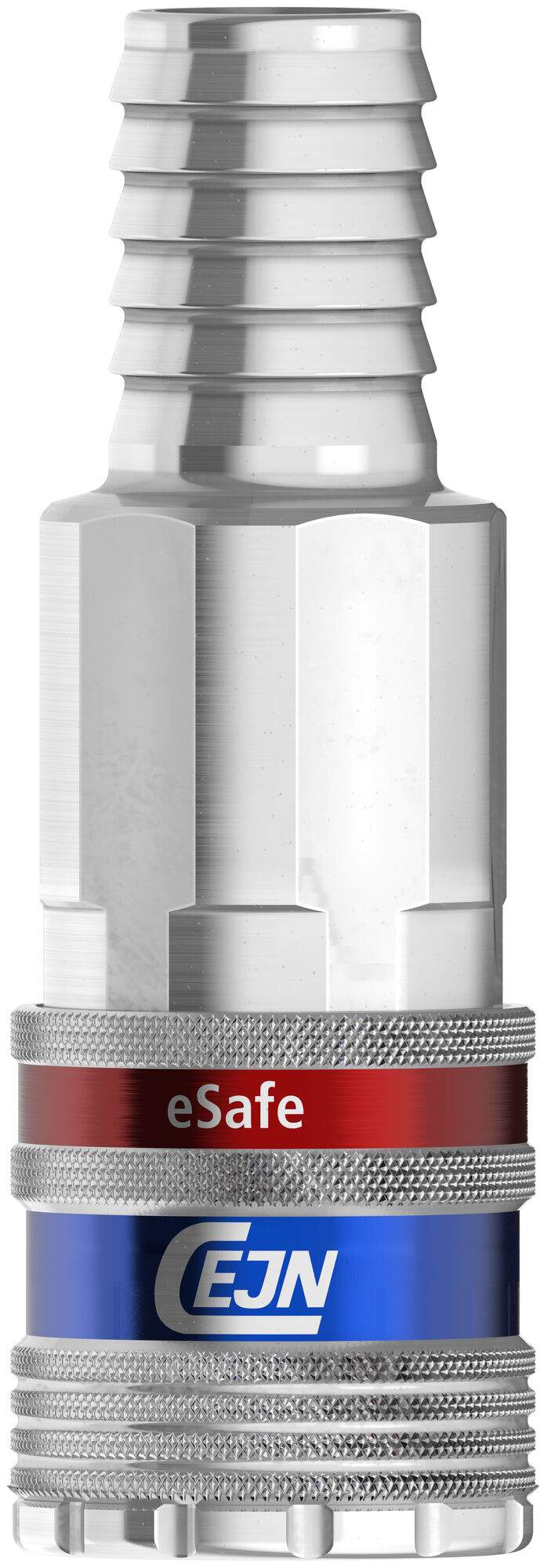

eSafe vented safety coupling ISO 6150 B 5.3 mm, hose connection 13.0 mm, 1000 l/min, steel - Cejn 103102005

Connect with one hand, disconnect with one hand: coupling 103102005 is connected with hose connection 13.0 mm, carries 1000 l/min and releases the pressure before separation.

Benefits

• Version with hose connection 13.0 mm.
• Soft-Line design as marked by the manufacturer.
• Net weight 0.085 kg.
• Air flow 1000 l/min at a working pressure of up to 16 bar.
• Nipple profile ISO 6150 B 5.3 mm, interchangeable with existing couplings of the same standard.
• Two-stage disconnection: the line is vented before the nipple comes free.

Applications

Typical places of use are assembly lines, workshop ring mains and mobile hose reels, always in combination with FRL units and air tools.

Standards and marking

Manufacturer marking: ISO 6150 B, A-A 59439. Nipple profile as stated by the manufacturer: ISO 6150 B A-A 59439 5.3 mm. It also carries the manufacturer marking Soft-Line.
