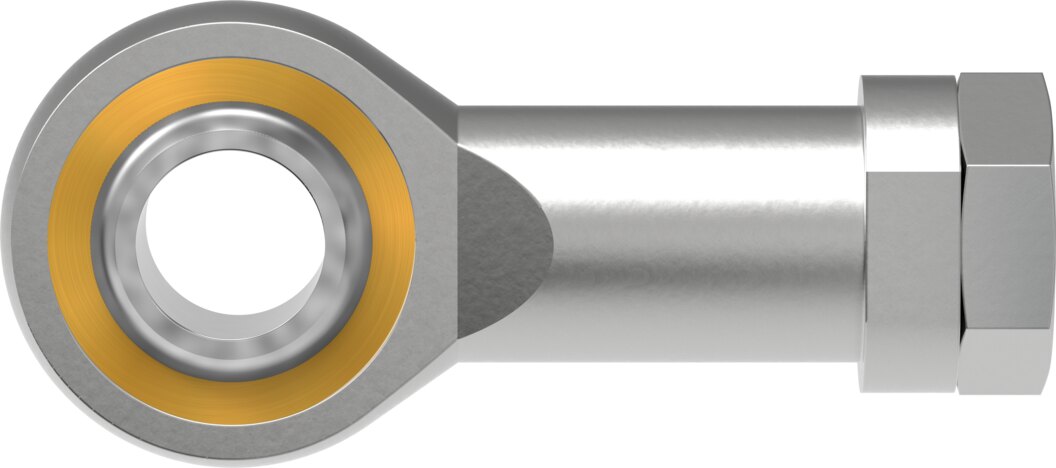

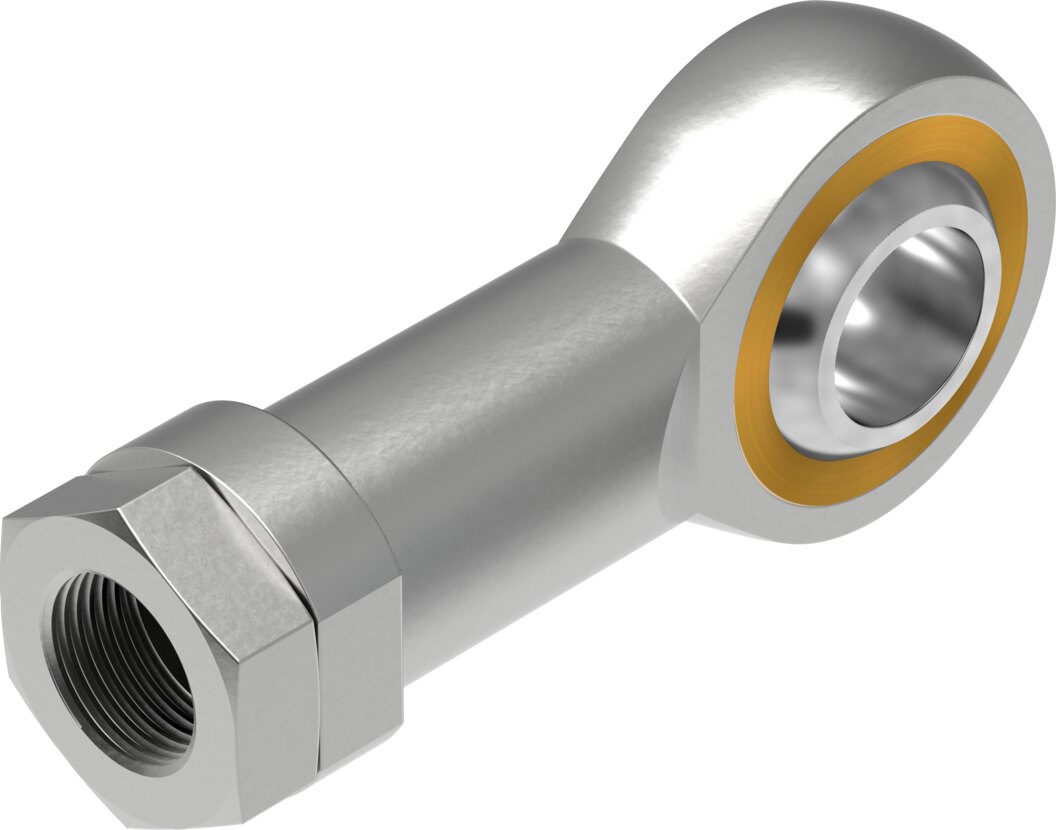

Rod eye thread 3/4-16 UNF-2B steel zinc-plated SGS-3/4-16 - Festo 532699

Festo ✓ Original product Brand new

The rod eye SGS-3/4-16 with thread 3/4-16 UNF-2B lets the piston rod swivel freely even when tilted, which protects seals and guides. Housing made of steel, zinc-plated, CRC 1 (low corrosion stress). Ambient temperature -40 to 150 °C.

Net
€62.95
excl. VAT
Item FES-532699
Manufacturer no. SGS-3/4-16
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The rod eye SGS-3/4-16 takes up small misalignments and swivel movements in its bearing, thread 3/4-16 UNF-2B, CRC 1 (low corrosion stress).

Benefits

  • Thread size 3/4-16 UNF-2B
  • Housing made of steel, zinc-plated
  • Bearing: outer ring made of brass, inner ring made of steel
  • Usable at ambient temperatures of -40 to 150 °C
  • Corrosion resistance class 1 - low corrosion stress
  • Materials: RoHS compliant

Typical applications

The SGS-3/4-16 suits swivel mountings, flaps and levers where the cylinder changes its position during the stroke.

Technical data

Order typeSGS-3/4-16
Festo part number532699
Size3/4-16 UNF-2B
Corrosion resistance class CRC1 - low corrosion stress
PWIS conformity (LABS)VDMA24364-B2-L
Ambient temperature-40 to 150 °C
Product weight464 g
Note on materialsRoHS compliant
Material outer ringbrass
Material housingsteel, zinc-plated
Material inner ringsteel
Material nutsteel, zinc-plated
Customs tariff number90330090
ManufacturerFesto
Hersteller-NrSGS-3/4-16
EAN4052568340032
Zolltarifnummer90330090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialGalvanised steel
SeriesSGS
Temperaturbereich-40-150 °C
Temperature (max.)150
