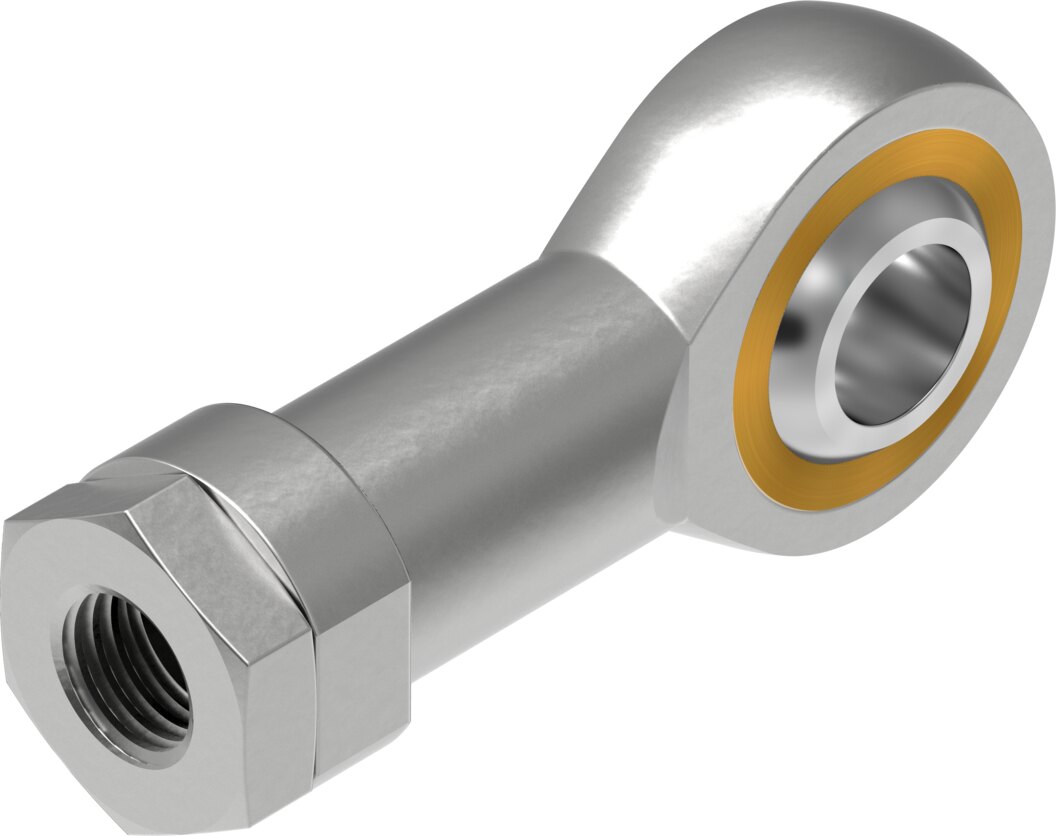

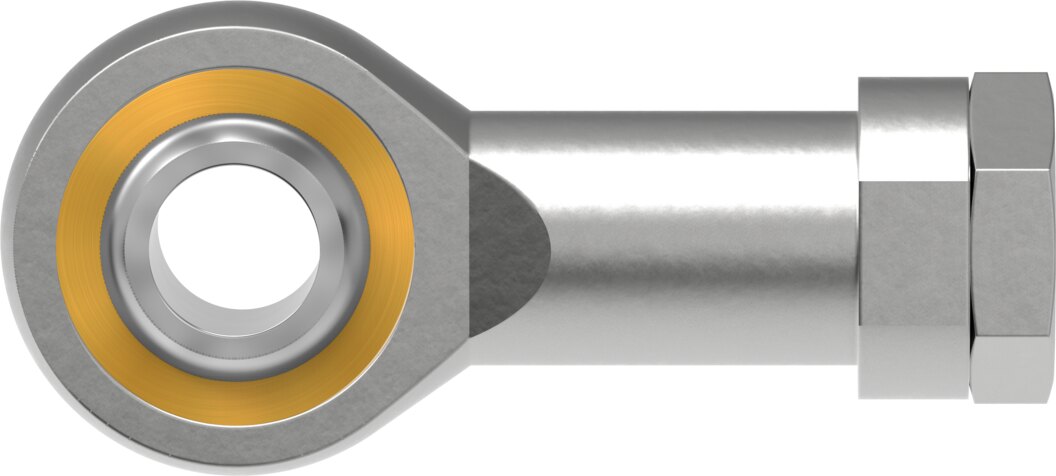

Rod eye thread 1-12 UNF-2B steel zinc-plated SGS-1-12 - Festo 532700

Festo ✓ Original product Brand new

The rod eye SGS-1-12 with thread 1-12 UNF-2B lets the piston rod swivel freely even when tilted, which protects seals and guides. Housing made of steel, zinc-plated, CRC 1 (low corrosion stress). Ambient temperature -40 to 150 °C.

Net
€119.56
excl. VAT
Item FES-532700
Manufacturer no. SGS-1-12
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo rod eye SGS-1-12 connects piston rod and attachment via a spherical bearing, thread size 1-12 UNF-2B.

Benefits

  • Thread size 1-12 UNF-2B
  • Housing made of steel, zinc-plated
  • Bearing: outer ring made of brass, inner ring made of steel
  • Ambient temperature -40 to 150 °C
  • Corrosion resistance class 1 - low corrosion stress
  • Materials: RoHS compliant

Use

The SGS-1-12 is typically used on cylinders with swivel mounting that move flaps, levers or gates.

Technical data

Order typeSGS-1-12
Festo part number532700
Size1-12 UNF-2B
Corrosion resistance class CRC1 - low corrosion stress
PWIS conformity (LABS)VDMA24364-B2-L
Ambient temperature-40 to 150 °C
Product weight1333 g
Note on materialsRoHS compliant
Material outer ringbrass
Material housingsteel, zinc-plated
Material inner ringsteel
Material nutsteel, zinc-plated
Customs tariff number90330090
ManufacturerFesto
Hersteller-NrSGS-1-12
EAN4052568340049
Zolltarifnummer90330090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialGalvanised steel
SeriesSGS
Temperaturbereich-40-150 °C
Temperature (max.)150
