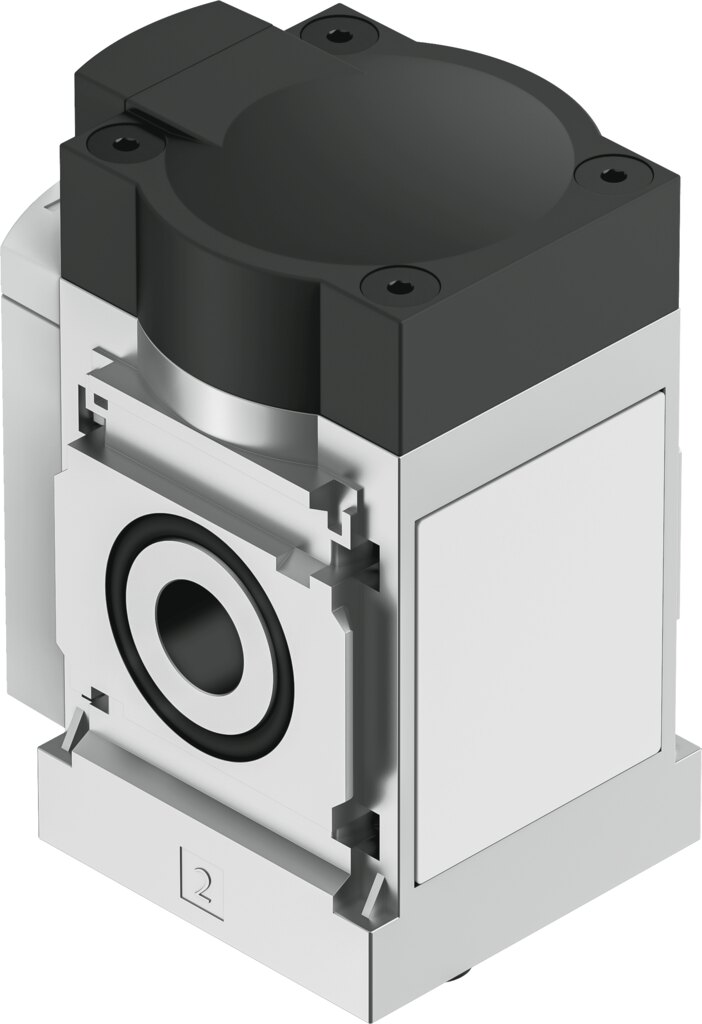

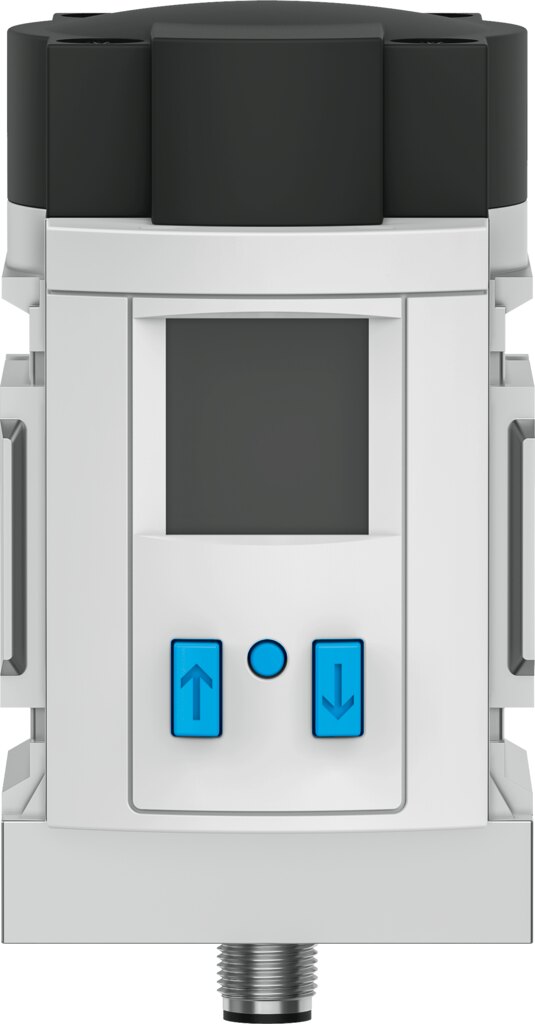

Flow sensor 10 to 1000 l/min for compressed air G1/2 IO-Link SFAM-62-1000L-TG12-PNLK-PNVBA-M12-EMD - Festo 8187364
The flow sensor SFAM-62-1000L-TG12-PNLK-PNVBA-M12-EMD measures pressure, mass flow, temperature, volume and volumetric flow of compressed air within 10 to 1000 l/min. Limit values are signalled via two switching outputs, PNP or NPN selectable, the measured value via analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link. Operating pressure 16 bar, connection G1/2.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SFAM-62-1000L-TG12-PNLK-PNVBA-M12-EMD makes pressure, mass flow, temperature, volume and volumetric flow of compressed air visible: measuring range 10 to 1000 l/min, thermal measuring principle.
Benefits
- Measuring range 10 to 1000 l/min, pressure drop 100 mbar
- Accuracy ± (3 % of measured value + 0.3 % FS), repetition accuracy zero point ±0.2 %FS, span ±0.8 %FS
- Measuring principle thermal, method Heat loss
- Additional temperature measurement 0 to 100 °C
- Switching output 2 x PNP or 2 x NPN, switchable, analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link
- Multi-colour illuminated LCD, units MPa, bar, kPa, kg, kg/min, l, l/min, m3, m3/h, psi, scfm, scft, °C, °F
Applications
Operating medium of the SFAM-62-1000L-TG12-PNLK-PNVBA-M12-EMD: argon, compressed air to ISO 8573-1:2010 [7:4:4], carbon dioxide, nitrogen, flow direction unidirectional, from left to right. Typical tasks up to 1000 l/min include consumption measurement on machines and monitoring the compressed air supply. The SFAM-62-1000L-TG12-PNLK-PNVBA-M12-EMD runs on 15 to 30 V DC.
Technical data
| Type | SFAM-62-1000L-TG12-PNLK-PNVBA-M12-EMD |
|---|---|
| Festo part number | 8187364 |
| Approval | RCM, c UL us - Listed (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Certificate issuing authority | UL E322346 |
| Note on materials | RoHS compliant |
| Measured variable | Pressure, Mass flow rate, Temperature, Volume, Volumetric flow rate |
| Flow direction | Unidirectional, from left to right |
| Measuring principle | Thermal |
| Measurement method | Heat loss |
| Start value for pressure measuring range | 0 bar |
| End value for pressure measuring range | 16 bar |
| Start value for flow rate measuring range | 10 l/min |
| End value for flow rate measuring range | 1000 l/min |
| Temperature measuring range start value | 0 °C |
| Temperature measuring range end value | 100 °C |
| Operating pressure | 16 bar |
| Overload pressure | 20 bar |
| Operating medium | Argon, Compressed air to ISO 8573-1:2010 [7:4:4], Carbon dioxide, Nitrogen |
| Media temperature | 0 to 50 °C |
| Ambient temperature | 0 to 50 °C |
| Nominal temperature | 23 °C |
| Accuracy of pressure value in ± %FS | 1.5 %FS |
| Accuracy of flow rate | ± (3 % of measured value + 0.3 % FS) |
| Accuracy temperature in ± °C | 5 °C |
| Repetition accuracy of pressure value in ± %FS | 0.3 %FS |
| Repetition accuracy offset in ± %FS | 0.2 %FS |
| Repetition accuracy span in ± %FS | 0.8 %FS |
| Temperature coefficient in ± %FS/K | 0.05 %FS/K |
| Temperature coefficient span in ± %FS/K | typ. 0.1%FS/K |
| Pressure influence on span in ± %FS/bar | 0.5 %FS/b. |
| Switching output | 2 x PNP or 2 x NPN, switchable |
| Switching function | Window comparator or threshold value comparator, adjustable |
| Switching element function | NC or NO, switchable |
| Max. output current | 100 mA |
| Analogue output | 0 - 10 V, 4 - 20 mA, 1 - 5 V |
| Flow characteristic curve start value | 0 l/min |
| Flow characteristic curve end value | 1000 l/min |
| Temperature characteristic curve start value | 0 °C |
| Temperature characteristic curve end value | 100 °C |
| Output characteristic curve start value | 0 V |
| Output characteristic curve end value | 10 V |
| Output characteristic curve start value | 4 mA |
| Output characteristic curve end value | 20 mA |
| Max. load resistance current output | 500 Ohm |
| Min. load resistance voltage output | 20 kOhm |
| Short circuit current rating | Yes |
| Overload protection | Available |
| Protocol | IO-Link |
| IO-Link, revision ID | V1.1 |
| IO-Link, device profile | Firmware update, Function locator, Function Product URI, Function quantity detection, Identification and diagnostics, Smart Sensor - SSP 4.1.3 |
| IO-Link, transmission rate | COM3 |
| IO-Link, SIO mode support | Yes |
| IO-Link, port type | Class A |
| IO-Link, process data length output | 0 bit |
| IO-Link, process data length input | 96 bit |
| IO-Link, process data content IN | Monitoring the average flow rate 1 bit SSC, Reference record unusable 1 bit, Monitoring the peak flow rate 1 bit SSC, Time monitoring of the active-static operating status 1 bit SSC |
| IO-Link, service data content IN | Volume/mass measured value 32 bit, Pneumatic energy measurement 32 bit, Pneumatic power measurement 32 bit |
| IO-Link, minimum cycle time | 1.5 ms |
| IO-Link, data storage required | 1000 byte |
| Operational voltage range DC | 15 to 30 V |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connector system | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of connections/cores | 5 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection 1, compatible type of mounting | Compatible with rotatable screw-type lock |
| Max. cable length | 20 m with IO-Link operation, 30 M |
| Type of mounting | Inline installation |
| Mounting position | Any |
| Pneumatic connection | G1/2 |
| Product weight | 600 g |
| Material housing | Die-cast aluminium, Reinforced PA |
| Display type | Illuminated LCD, multi-colour |
| Displayable units | MPa, bar, kPa, kg, kg/min, l, l/min, m3, m3/h, psi, scfm, scft, °C, °F |
| Setting options | IO-Link, Teach-in, Via display and buttons |
| Protection against tampering | IO-Link, PIN code |
| Setting range threshold value | 0 to 100 % |
| Setting range hysteresis | 0 to 90 % |
| Degree of protection | IP65 |
| Pressure drop | 100 mbar |
| Protection class | III |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Pollution degree | 3 |
| Weight | 1.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SFAM-62-1000L-TG12-PNLK-PNVBA-M12-EMD |
| EAN | 4052568629601 |
| Zolltarifnummer | 90268020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/2 |
| Medientemperatur [°C] | 0 bis 50 |
| Series | SFAM |
| Betriebsdruck max [bar] | 16 |
| Protection rating | IP65 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
