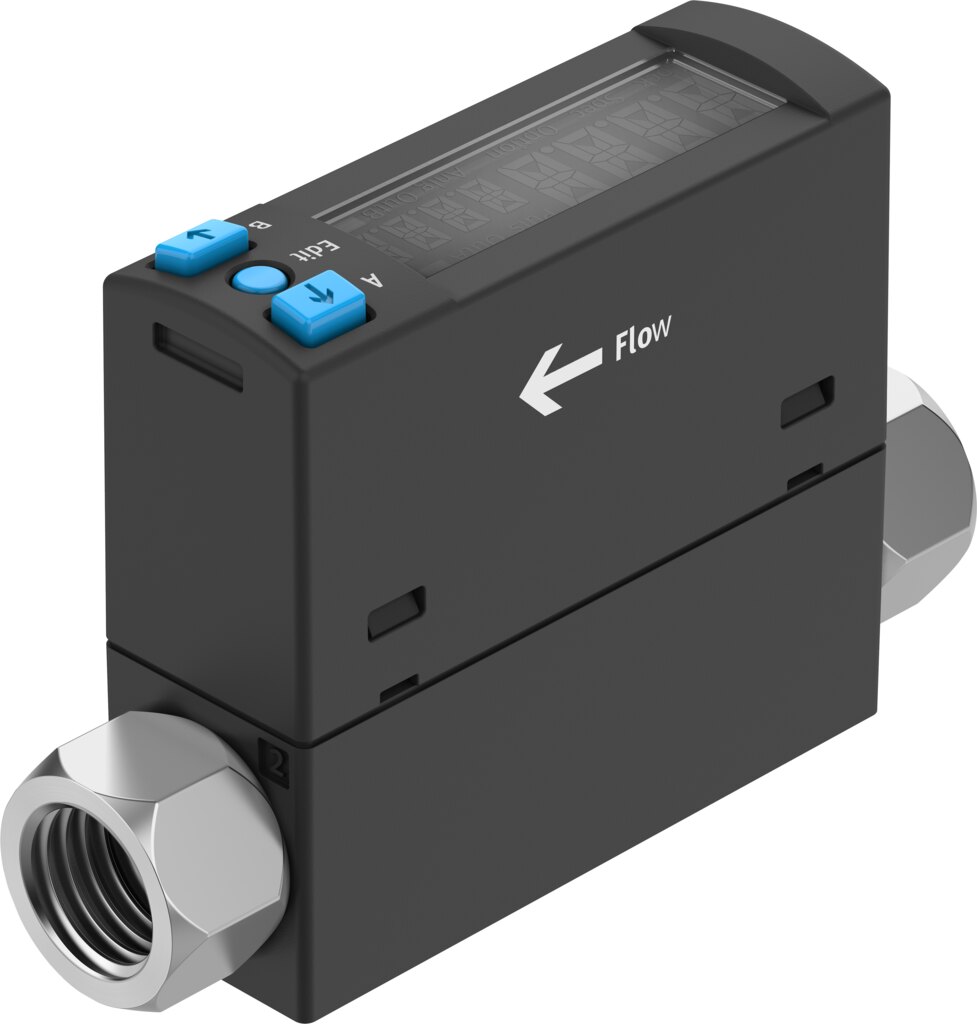

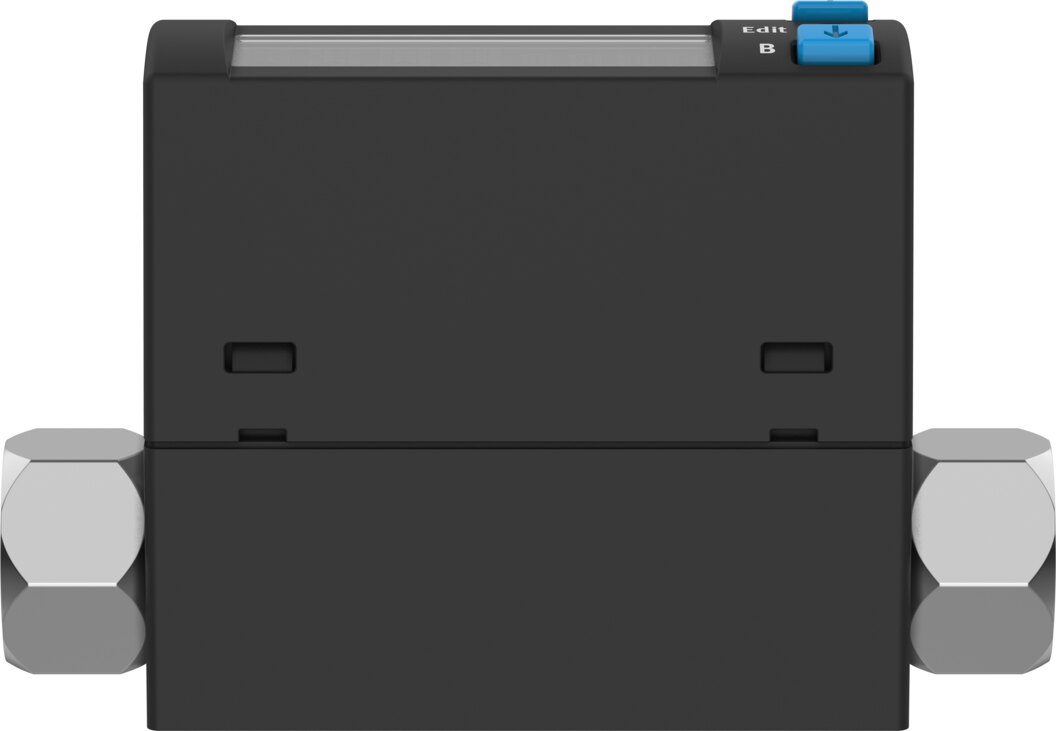

Flow sensor 2 to 100 l/min for compressed air G1/4 IO-Link SFAH-100U-G14FS-PNLK-PNVBA-L1-SE004 - Festo 8128657

Festo ✓ Original product Brand new

The flow sensor SFAH-100U-G14FS-PNLK-PNVBA-L1-SE004 is designed for flow rate of compressed air between 2 l/min and 100 l/min. For limit values up to 100 l/min there are two switching outputs, PNP or NPN selectable, the measured value is output via analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link. Operating pressure -0.9 to 10 bar, connection female thread G1/4.

Net
€540.05
excl. VAT
Item FES-8128657
Manufacturer no. SFAH-100U-G14FS-PNLK-PNVBA-L1-SE004
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The SFAH-100U-G14FS-PNLK-PNVBA-L1-SE004 makes flow rate of compressed air visible: measuring range 2 to 100 l/min.

Benefits

  • Measuring range 2 to 100 l/min
  • Switching output 2 x PNP or 2 x NPN, switchable, analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link
  • Operating pressure -0.9 to 10 bar

Applications

Flow direction of the SFAH-100U-G14FS-PNLK-PNVBA-L1-SE004: unidirectional. Typical tasks up to 100 l/min include flow monitoring on compressed air consumers and in test rigs.

Technical data

TypeSFAH-100U-G14FS-PNLK-PNVBA-L1-SE004
Festo part number8128657
Start value for flow rate measuring range2 l/min
End value for flow rate measuring range100 l/min
Flow directionUnidirectional
Pneumatic connectionFemale thread G1/4
Switching output2 x PNP or 2 x NPN, switchable
Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V
ProtocolIO-Link®
Operating pressure-0.9 to 10 bar
Weight0.135 kg
ManufacturerFesto
Hersteller-NrSFAH-100U-G14FS-PNLK-PNVBA-L1-SE004
Zolltarifnummer90262020
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
SeriesSFAH
Betriebsdruck max [bar]10
