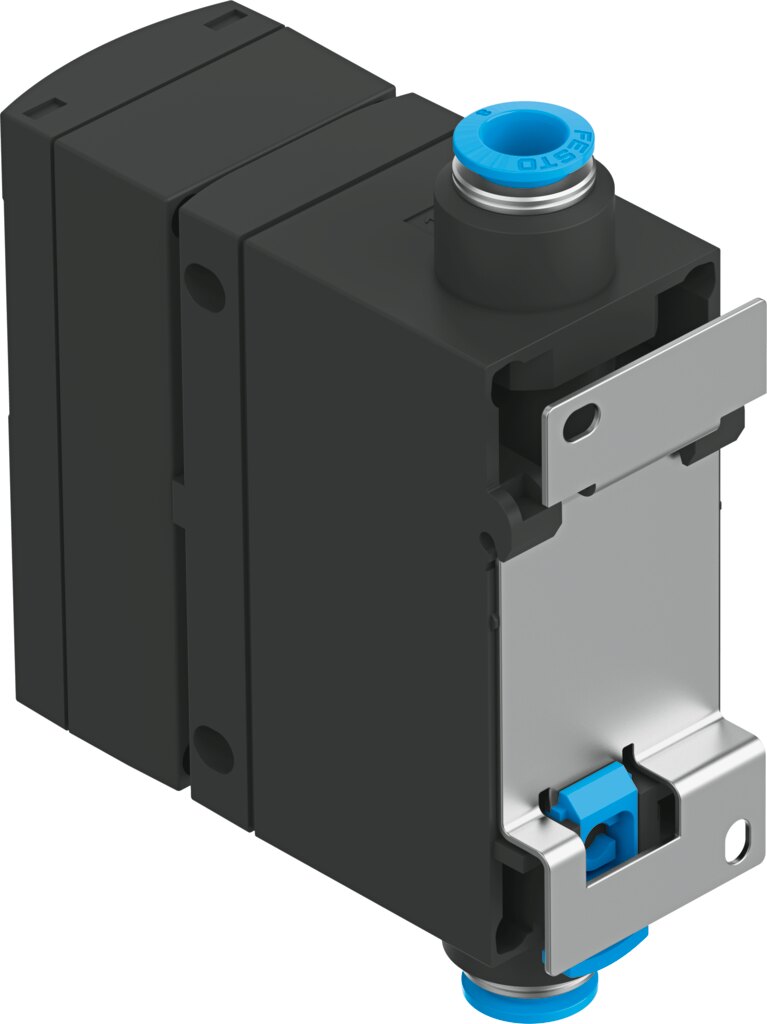

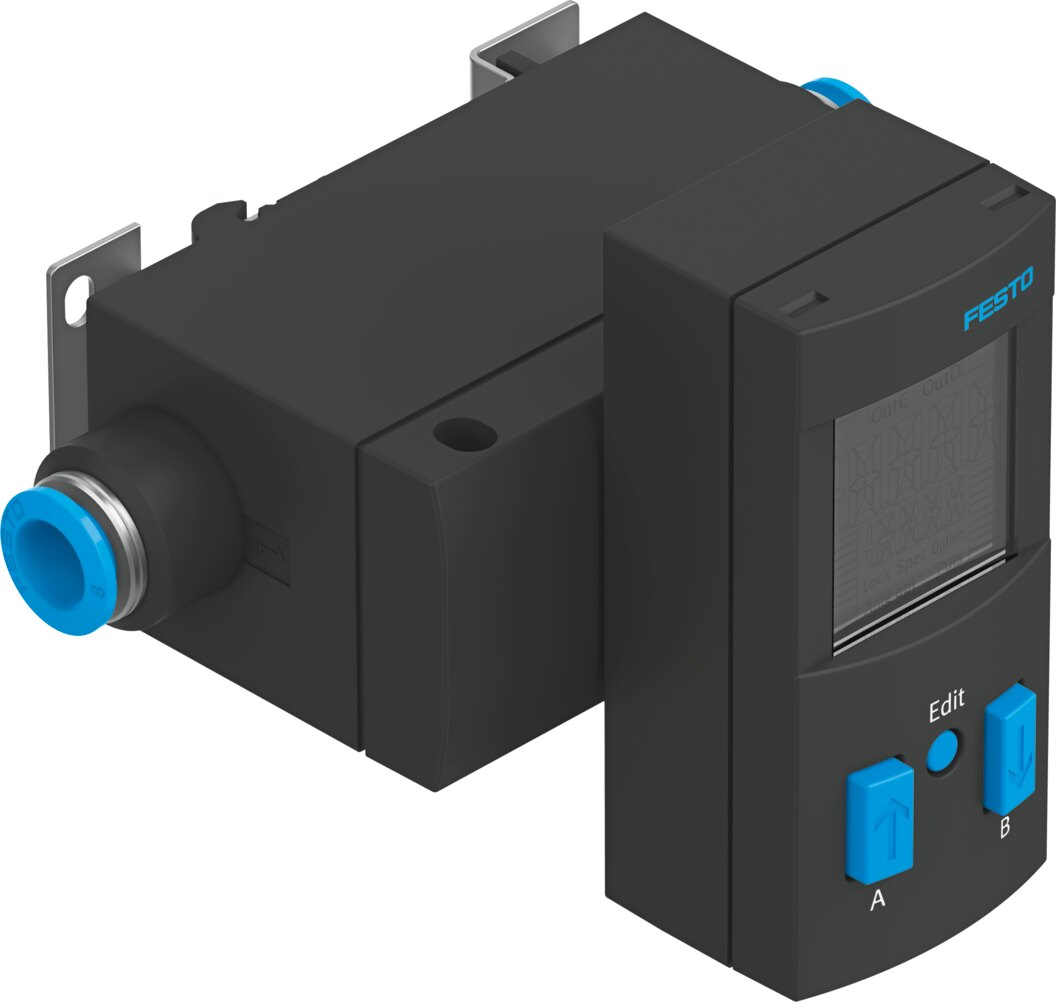

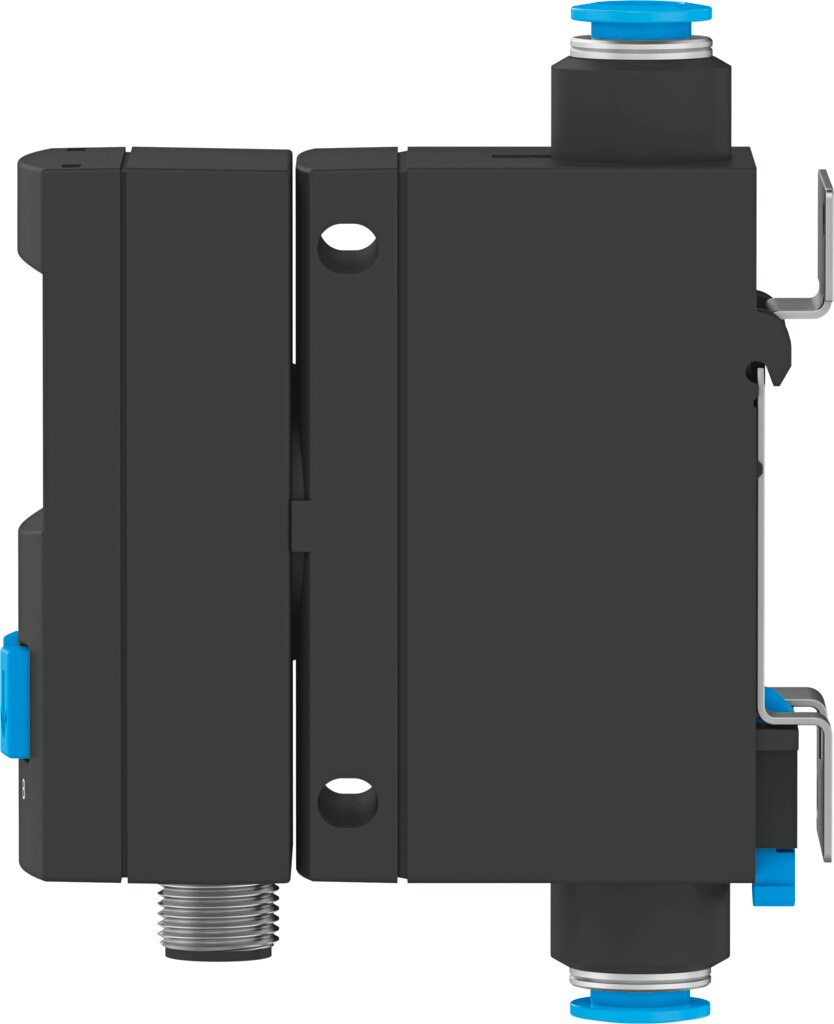

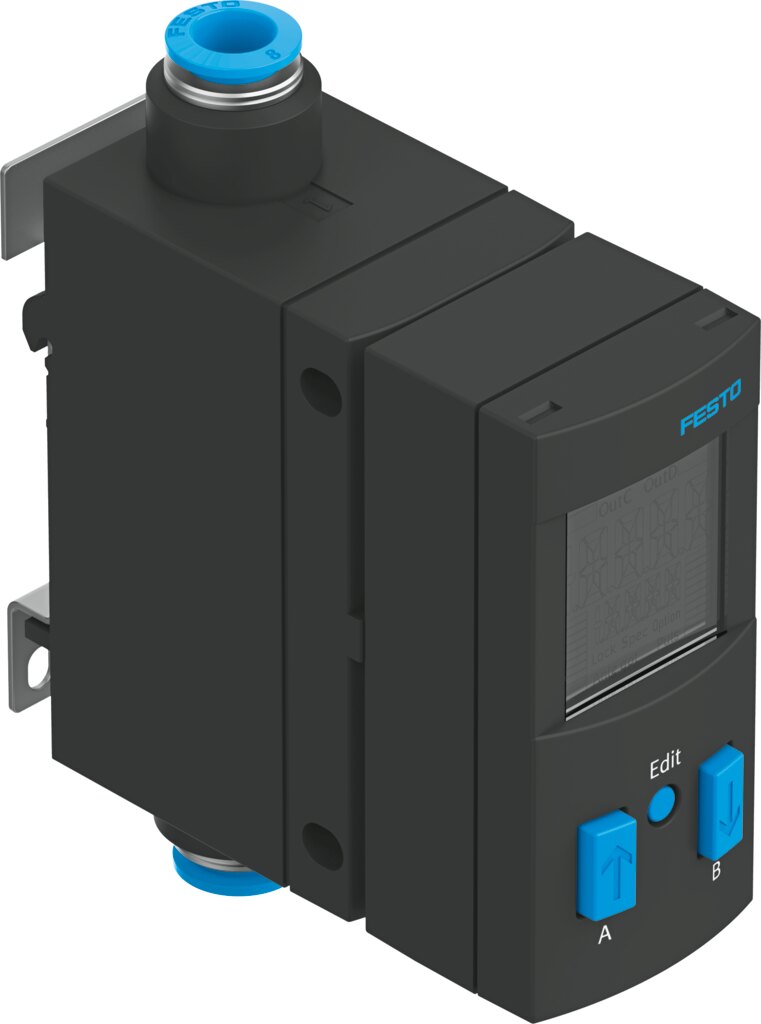

Flow sensor 0.5 to 50 l/min for compressed air 6 mm tubing IO-Link SFAB-50U-WQ6-PNLK-PNVBA-M12 - Festo 8162827

Festo ✓ Original product Brand new

The flow sensor SFAB-50U-WQ6-PNLK-PNVBA-M12 is designed for mass flow, temperature, volume and volumetric flow of compressed air between 0.5 l/min and 50 l/min. For limit values up to 50 l/min there are two switching outputs, PNP or NPN selectable, the measured value is output via analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link. Operating pressure 0 to 10 bar, connection for 6 mm tubing.

Net
€400.30
excl. VAT
Item FES-8162827
Manufacturer no. SFAB-50U-WQ6-PNLK-PNVBA-M12
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The SFAB-50U-WQ6-PNLK-PNVBA-M12 makes mass flow, temperature, volume and volumetric flow of compressed air visible: measuring range 0.5 to 50 l/min, thermal measuring principle.

Benefits

  • Measuring range 0.5 to 50 l/min, pressure drop 100 mbar
  • Accuracy ± (3 % of measured value + 0.3 % FS), repetition accuracy zero point ±0.2 %FS, span ±0.8 %FS
  • Measuring principle thermal, method Heat loss
  • Additional temperature measurement 0 to 50 °C
  • Switching output 2 x PNP or 2 x NPN, switchable, analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link

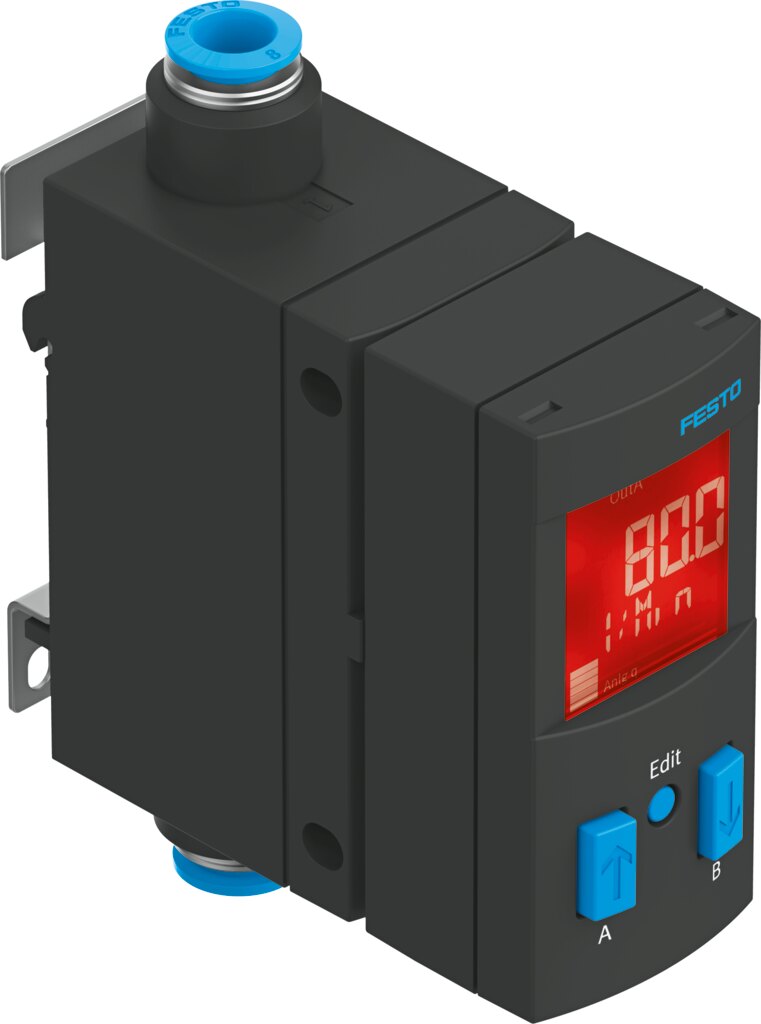

  • Multi-colour illuminated LCD, units g, g/min, l, l/min, m3, m3/h, scf, scfm

Applications

Operating medium of the SFAB-50U-WQ6-PNLK-PNVBA-M12: compressed air to ISO 8573-1:2010 [6:4:4], carbon dioxide, nitrogen, flow direction unidirectional, P1 to P2. Typical tasks up to 50 l/min include consumption measurement on machines and monitoring the compressed air supply. The SFAB-50U-WQ6-PNLK-PNVBA-M12 runs on 15 to 30 V DC.

Technical data

TypeSFAB-50U-WQ6-PNLK-PNVBA-M12
Festo part number8162827
ApprovalRCM, c UL us - Listed (OL)
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Certificate issuing authorityUL E322346
Note on materialsRoHS compliant
Measured variableMass flow rate, Temperature, Volume, Volumetric flow rate
Flow directionUnidirectional, P1 to P2
Measuring principleThermal
Measurement methodHeat loss
Start value for flow rate measuring range0.5 l/min
End value for flow rate measuring range50 l/min
Temperature measuring range start value0 °C
Temperature measuring range end value50 °C
Operating pressure0 to 10 bar
Operating mediumCompressed air to ISO 8573-1:2010 [6:4:4], Carbon dioxide, Nitrogen
Media temperature0 to 50 °C
Ambient temperature0 to 50 °C
Nominal temperature23 °C
Accuracy of flow rate± (3 % of measured value + 0.3 % FS)
Accuracy temperature in ± °C5 °C
Repetition accuracy offset in ± %FS0.2 %FS
Repetition accuracy span in ± %FS0.8 %FS
Temperature coefficient span in ± %FS/Ktyp. 0.1%FS/K
Pressure influence on span in ± %FS/bar0.5 %FS/b.
Switching output2 x PNP or 2 x NPN, switchable
Switching functionWindow comparator, Threshold value comparator
Switching element functionNC or NO, switchable
Switch-on time10 ms
Switch-off time10 ms
Max. output current100 mA
Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V
Flow characteristic curve start value0 l/min
Flow characteristic curve end value50 l/min
Temperature characteristic curve start value0 °C
Temperature characteristic curve end value100 °C
Output characteristic curve start value0 V
Output characteristic curve end value10 V
Output characteristic curve start value4 mA
Output characteristic curve end value20 mA
Max. load resistance current output500 Ohm
Min. load resistance voltage output20 kOhm
Short circuit current ratingYes
Overload protectionAvailable
ProtocolIO-Link
IO-Link, revision IDV1.1
IO-Link, device profileFunction Extended identification, Function Measurement data, standard resolution, Function Multiple switching signal, Firmware update, Function locator, Function Product URI, Function Teach single value, Identification and diagnostics, Smart Sensor - SSP 4.1.2
IO-Link, transmission rateCOM3
IO-Link, SIO mode supportYes
IO-Link, port typeClass A
IO-Link, process data length output0 bit
IO-Link, process data length input64 bit
IO-Link, process data content INFlow rate measurement 16 bit MDC, Flow rate monitoring 2-bit SSC, Measured temperature value 16 bit MDC, Temperature monitoring 2-bit SSC, Volume / mass pulse 1 bit SSC
IO-Link, service data content INVolume/mass measured value 32 bit
IO-Link, minimum cycle time1.2 ms
IO-Link, data storage required500 byte
Operational voltage range DC15 to 30 V
No-load supply current90 mA
Reverse polarity protectionFor all electrical connections
Electrical connection 1, connection typePlug
Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
Electrical connection 1, number of connections/cores5
Electrical connection 1, type of mountingScrew-type lock, Not rotatable
Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock
Type of mountingWith through-hole, via DIN rail, Via wall/surface bracket
Mounting positionAny
Pneumatic connectionFor tubing O.D. 6 mm
Product weight160 g
Material housingReinforced PA
Display typeIlluminated LCD, multi-colour
Displayable unitsg, g/min, l, l/min, m3, m3/h, scf, scfm
Setting optionsIO-Link, Teach-in, Via display and buttons
Protection against tamperingIO-Link, PIN code
Degree of protectionIP65
Pressure drop100 mbar
Protection classIII
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Weight0.24 kg
ManufacturerFesto
Hersteller-NrSFAB-50U-WQ6-PNLK-PNVBA-M12
EAN4052568594695
Zolltarifnummer90268020
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Medientemperatur [°C]0 bis 50
SeriesSFAB
Betriebsdruck max [bar]10
Protection ratingIP65
Temperaturbereich0-50 °C
Temperature (max.)50
