Quick exhaust valve 1/2 NPT, exhaust 6500 l/min SEU-1/2-NPT - Festo 9801

Festo ✓ Original product Brand new

The SEU-1/2-NPT quick exhaust valve vents a cylinder directly at the port instead of through the line to the directional valve. Key data: port 1/2 NPT, exhaust flow 6500 l/min, operating pressure 0.3 to 10 bar. This increases the piston speed. Ambient temperature -20 to 75 °C. Weight 320 g.

Net
€92.22
excl. VAT
Item FES-9801
Manufacturer no. SEU-1/2-NPT
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

6500 l/min standard flow rate, exhaust (6 to 0 bar): the SEU-1/2-NPT quick exhaust valve vents a cylinder directly at the port instead of through the line to the directional valve. This increases the piston speed.

Benefits

  • Flow rate: standard flow rate, exhaust (6 to 0 bar) 6500 l/min
  • Pressure range: 0.3 to 10 bar operating pressure
  • Connections: 1/2 NPT
  • Paint compatibility: LABS conformity VDMA24364-B1/B2-L
  • Temperature: -20 to 75 °C ambient temperature
  • Nominal size: 15 mm

Applications

Mounted directly at the cylinder port when large cylinders or long tubing lines must be exhausted quickly. Operating medium: compressed air to ISO 8573-1:2010 [7:-:-]. Mounting: screw-in. Once lubricated, lubrication must continue.

Technical data

TypeSEU-1/2-NPT
Festo part number9801

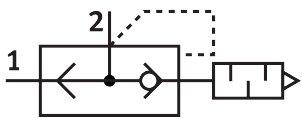

Valve functionQuick exhaust
Additional functionWith silencer
Pneumatic connection, port 11/2 NPT
Pneumatic connection, port 21/2 NPT
Type of mountingScrew-in
Standard nominal flow rate, exhaust (6 to 5 bar)4020 l/min
Standard flow rate, exhaust (6 to 0 bar)6500 l/min
Standard nominal flow rate, supply (6 to 5 bar)4560 l/min
Operating pressure0.3 to 10 bar
Ambient temperature-20 to 75 °C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Nominal size15 mm
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Medium temperature-20 to 75 °C
Sound pressure level86 dB(A)
Note on materialsRoHS-compliant
Weight (shipping)320 g
Weight0.32 kg
ManufacturerFesto
Hersteller-NrSEU-1/2-NPT
EAN4052568303518
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/2
Nominal size DN [mm]15
MediumCompressed air
FunctionQuick exhaust
Flow rate [l/min]6500
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/2
Temperaturbereich-20-75 °C
Temperature (max.)75
