Pressure sensor -1 to 10 bar, analogue output 0 to 10 V SDE5- - Festo 529027
The pressure sensor SDE5- detects differential or relative pressure in the range -1 to 10 bar and switches via a PNP or NPN switching output, plus analogue output 0 to 10 V. It connects pneumatically via push-in connector QS-4, QS-6, QS-5/32, QS-1/4 and electrically via M8x1 plug (3-pin).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Measuring range -1 to 10 bar: the Festo pressure sensor SDE5- detects differential or relative pressure and switches via a PNP or NPN switching output, plus analogue output 0 to 10 V. Operating medium for SDE5-: compressed air, medium temperature 0 to 50 °C.
Benefits
- Measuring range -1 to 10 bar, overload range up to 5 bis 15 bar
- Push-in connector QS-4, QS-6, QS-5/32, QS-1/4, electrical: M8x1 plug (3-pin)
- PNP or NPN switching output, switchable switching element, output current up to 5 bis 100 mA
- Degree of protection IP40, ambient temperature 0 to 50 °C
- Accuracy 0.5 bis 3 %FS, repeatability ± 0.3 %FS
- Analogue output 0 to 10 V
Application
The measuring range covers vacuum and positive pressure, making the device suitable for circuits with changing pressure conditions. The mounting position is freely selectable, mounting is with matching mounting accessories.
Technical data
| Type | SDE5- |
|---|---|
| Approval | RCM, c UL us - Recognized (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive, in accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS regulations |
| Note on materials | RoHS compliant |
| Measured variable | Differential pressure, relative pressure |
| Measurement method | Piezoresistive pressure sensor |
| Start value for pressure measuring range | -1 bar |
| End value for pressure measuring range | 10 bar |
| Overload pressure | 5 to 15 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Media temperature | 0 to 50 °C |
| Ambient temperature | 0 to 50 °C |
| Accuracy in ± % FS | 0.5 to 3 %FS |
| Repetition accuracy in ± %FS | 0.3 %FS |
| Temperature coefficient in ± %FS/K | 0.05 %FS/K |
| Long-term drift | ±0.5 % FS max. |

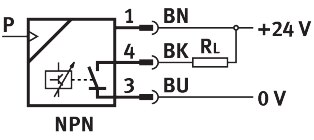

| Switching output | NPN, PNP |
| Switching function | Window comparator, freely programmable, threshold value with fixed hysteresis, threshold value with variable hysteresis |
| Switching element function | Switchable |
| Hysteresis in ± %FS | 1 to 99 %FS |
| Switch-on time | 2 ms |
| Switch-off time | 2 ms |
| Maximum output current | 5 to 100 mA |
| Voltage drop | 1.8 V |
| Analogue output | 0 - 10 V |
| Output characteristic curve start value | 0 V |
| Output characteristic curve end value | 10 V |
| Accuracy analogue output in ± %FS | 3 %FS |
| Linearity error in ± %FS | 0.3 %FS |
| Rise time | 5 ms |
| Minimum load resistance voltage output | 20 kOhm |
| Short circuit current rating | Yes |
| Overload protection | Yes |
| Operational voltage range DC | 15 to 30 V |
| Permissible voltage fluctuations | ±10% |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection type | Cable, plug |
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104, open end |
| Electrical connection 1, number of connections/cores | 3 |
| Electrical connection 1, type of mounting | Snap-locking, Screw-type lock, not rotatable |
| Electrical connection 1, compatible type of mounting | Compatible with latching lock, compatible with rotatable screw-type lock |
| Cable length | 2.5 m |
| Type of mounting | With accessories |
| Mounting position | Any |
| Pneumatic connection | QS-4, QS-6, QS-5/32, QS-1/4 |
| Product weight | 19 to 47 g |
| Material housing | Reinforced PA, reinforced POM |
| Material in contact with the medium | Reinforced POM |
| Material sealing ring | Fluoro rubber, NBR |
| Ready status indication | Green LED |
| Switching status indication | Yellow LED |
| Setting options | Teach-in |
| Setting range threshold value | 0 to 100 % |
| Degree of protection | IP40 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Weight | 0.032 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SDE5- |
| Zolltarifnummer | 90262020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Measuring range max. [bar] | 10 |
| Medium | Compressed air |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
