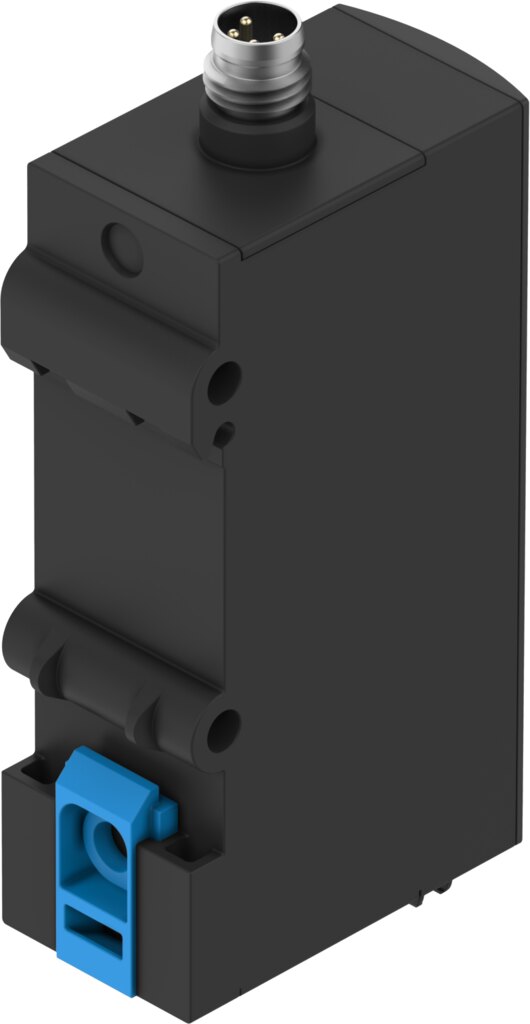

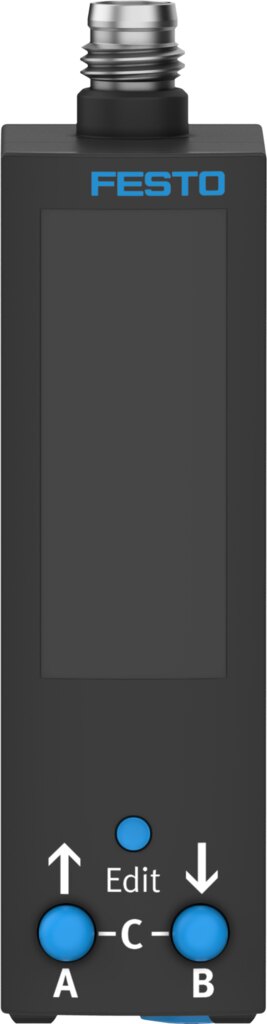

Pressure sensor 0 to 10 bar, 2x PNP, with display SDE3-D10S-B-HQ4-2P-M8 - Festo 540207
Designed for pressures of 0 to 10 bar, the pressure sensor SDE3-D10S-B-HQ4-2P-M8 measures relative pressure and switches via 2 PNP switching outputs. It connects pneumatically via push-in connector QS-4 and electrically via M8x1 plug (4-pin). Illuminated LCD, setting via teach-in.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo pressure sensor SDE3-D10S-B-HQ4-2P-M8 measures relative pressure in the range 0 to 10 bar and switches via 2 PNP switching outputs. Operating medium for SDE3-D10S-B-HQ4-2P-M8: compressed air, medium temperature 0 to 50 °C.
Benefits
- Measuring range 0 to 10 bar, overload range up to 15 bar
- Accuracy 2 bis 3 %FS, repeatability ± 0.3 %FS
- Degree of protection IP65, ambient temperature 0 to 50 °C
- Push-in connector QS-4, electrical: M8x1 plug (4-pin)
- 2 PNP switching outputs, switchable switching element, output current up to 100 mA
- Illuminated LCD, setting via teach-in
Application
The device is used to check system pressure, clamping pressure or leaks on pneumatic installations. SDE3-D10S-B-HQ4-2P-M8 is mounted via through-holes or on a DIN rail, in any position.
Technical data
| Type | SDE3-D10S-B-HQ4-2P-M8 |
|---|---|
| Approval | RCM, c UL us - Recognized (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive, in accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS regulations |
| Note on materials | RoHS compliant |
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor with display |
| Start value for pressure measuring range | 0 bar |
| End value for pressure measuring range | 10 bar |
| Overload pressure | 15 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Media temperature | 0 to 50 °C |
| Ambient temperature | 0 to 50 °C |
| Accuracy in ± % FS | 2 to 3 %FS |
| Repetition accuracy in ± %FS | 0.3 %FS |
| Temperature coefficient in ± %FS/K | 0.05 %FS/K |

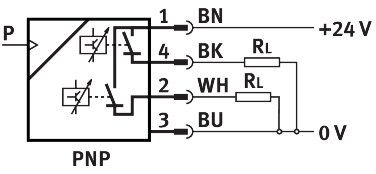

| Switching output | 2xPNP |
| Switching function | Freely programmable |
| Switching element function | Switchable |
| Reproducibility of switching value | 0.3 % |
| Switch-on time | 3 ms |
| Switch-off time | 3 ms |
| Maximum output current | 100 mA |
| Voltage drop | 1.5 V |
| Display range start value | 0 %FS |
| Display range end value | 100 %FS |
| Short circuit current rating | Yes |
| Overload protection | Yes |
| Operational voltage range DC | 15 to 30 V |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores | 4 |
| Electrical connection 1, type of mounting | Snap-locking, Screw-type lock, not rotatable |
| Electrical connection 1, compatible type of mounting | Compatible with latching lock, compatible with rotatable screw-type lock |
| Type of mounting | With through-hole, via DIN rail |
| Mounting position | Any |
| Pneumatic connection | QS-4 |
| Product weight | 37 g |
| Material housing | Reinforced PA |
| Material in contact with the medium | Fluoro rubber, brass, nickel-plated, NBR, reinforced PA |
| Display type | Illuminated LCD |
| Displayable units | bar |
| Switching status indication | LCD yellow |
| Setting options | Teach-in |
| Protection against tampering | PIN code |
| Setting range threshold value | 0 to 100 % |
| Setting range hysteresis | 0 to 90 % |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Weight | 0.06 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SDE3-D10S-B-HQ4-2P-M8 |
| EAN | 4052568178680 |
| Zolltarifnummer | 90262020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Measuring range max. [bar] | 10 |
| Medium | Compressed air |
| Protection rating | IP65 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
