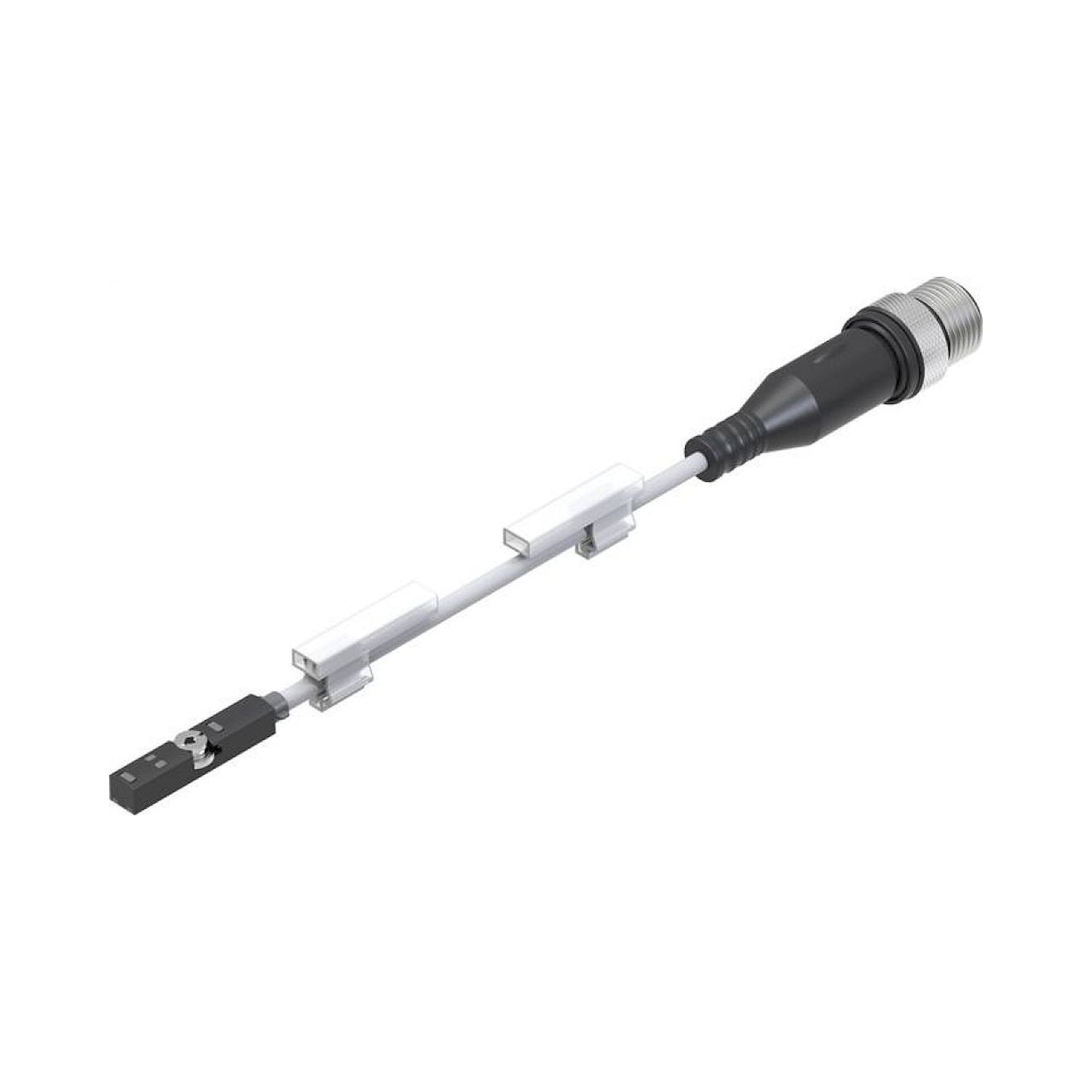

Magnetoresistive proximity sensor for C-slot PNP N/O 0.3 m cable with M8x1 plug in-line outlet SDBC-MSB-1L-PU-K-0.3-M8 - Festo 8139726

Festo ✓ Original product Brand new

Detects the piston magnet without contact using the magnetoresistive principle and signals the cylinder position in drives with C-slot. Connection via 0.3 m cable with M8x1 plug, cable standard, suitable for energy chains. A yellow LED shows the switching status directly on the sensor.

Net
€35.93
excl. VAT
Item FES-8139726
Manufacturer no. SDBC-MSB-1L-PU-K-0.3-M8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo magnetoresistive proximity sensor SDBC-MSB-1L-PU-K-0.3-M8 senses end positions and intermediate positions on pneumatic cylinders and grippers and fits into the C-slot.

Benefits

  • 0.2 mm repetition accuracy of the switching point
  • Up to 480 Hz switching frequency
  • Cable standard, suitable for energy chains, PUR sheath
  • 100 mA output current
  • In-line cable outlet, 0.3 m cable with M8x1 plug

Applications

Typically used on standard cylinders, compact cylinders, linear drives and grippers whose piston carries a magnet. Mounting screwed tight, insertable into the slot from above.

Technical data

FeatureValue
TypeSDBC-MSB-1L-PU-K-0.3-M8
Festo part number8139726
Designfor C-slot
Conforms to standardEN 60947-5-2
ApprovalRCM mark
CE mark (see declaration of conformity)to EU EMC Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)to UK RoHS regulations
KC markKC-EMV
Special characteristicsoil-resistant
Note on materialsRoHS-compliant, halogen-free, copper-free
Measured variableposition
Measuring principlemagnetoresistive
Ambient temperature-20 to 70 °C
Repetition accuracy0.2 mm
Switching outputPNP
Switching element functionN/O contact
Switch-on time2.5 ms
Switch-off time2.5 ms
Max switching frequency480 Hz
Max output current100 mA
Max switching capacity DC3 W
Voltage drop0.5 V
Short circuit protectionno
Overload protectionno
Rated operating voltage DC24 V
Operating voltage range DC10 to 30 V
Reverse polarity protectionfor all electrical connections
Electrical connection, connection typecable with plug
Electrical connection, connector systemM8x1, A-coded to EN 61076-2-104
Electrical connection, number of pins/wires3
Electrical connection, type of mountingscrew-type lock, rotatable
Electrical connection, compatible type of mountingcompatible with rotatable or non-rotatable screw-type lock
Electrical connection, connection pattern00991155
Connection outlet directionin-line
Material screw-type lockhigh-alloy stainless steel
Cable length0.3 m
Cable characteristicstandard, suitable for energy chains
Cable sheath materialPUR
Material insulating sheathPP
Type of mountingscrewed tight, insertable into the slot from above
Max tightening torque0.2 Nm
Mounting positionany
Housing materialPC
Switching status indicationyellow LED
Ambient temperature with moving cable-20 to 70 °C
Degree of protectionIP67, IP68, to IEC 60529
LABS (PWIS) conformityVDMA24364 zone III
Weight0.0091 kg
ManufacturerFesto
Hersteller-NrSDBC-MSB-1L-PU-K-0.3-M8
EAN4052568568528
Zolltarifnummer85365019
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
NormDIN EN 61076-2-104, DIN EN 60947-5-2
Operating voltage24 V DC
Protection ratingIP67
Temperaturbereich-20-70 °C
Temperature (max.)70
