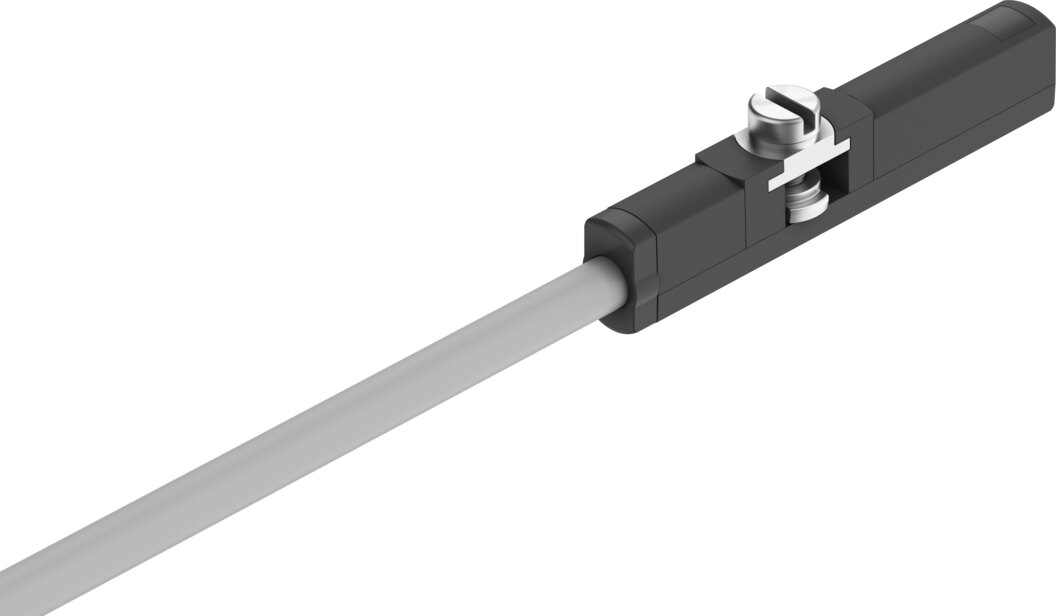

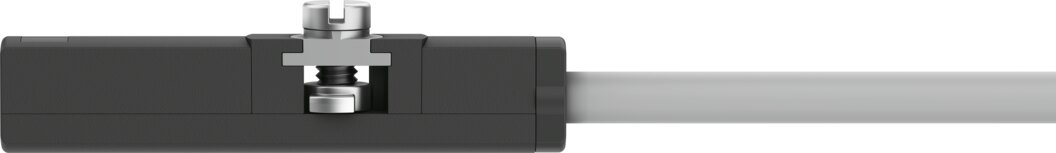

Magnetoresistive proximity sensor for C-slot NPN N/O 2 m cable with open end in-line outlet SDBC-MSB-1L-NU-K-2-LE - Festo 8139724
Detects the piston magnet without contact using the magnetoresistive principle and signals the cylinder position in drives with C-slot. NPN output, N/O, 10 to 30 V operating voltage, IP67, IP68 protection. A yellow LED shows the switching status directly on the sensor.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo magnetoresistive proximity sensor SDBC-MSB-1L-NU-K-2-LE senses end positions and intermediate positions on pneumatic cylinders and grippers and fits into the C-slot.
Benefits
- 0.2 mm repetition accuracy of the switching point
- Up to 480 Hz switching frequency
- Cable standard, suitable for energy chains, PUR sheath
- 100 mA output current
- In-line cable outlet, 2 m cable with open end
Applications
The SDBC-MSB-1L-NU-K-2-LE suits drives with a magnetic piston such as compact and standard cylinders, slides and grippers. Mounting screwed tight, insertable into the slot from above.
Technical data
| Feature | Value |
|---|---|
| Type | SDBC-MSB-1L-NU-K-2-LE |
| Festo part number | 8139724 |
| Design | for C-slot |
| Conforms to standard | EN 60947-5-2 |
| Approval | RCM mark |
| CE mark (see declaration of conformity) | to EU EMC Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS regulations |
| KC mark | KC-EMV |
| Special characteristics | oil-resistant |
| Note on materials | RoHS-compliant, halogen-free, copper-free |
| Measured variable | position |
| Measuring principle | magnetoresistive |
| Ambient temperature | -20 to 70 °C |
| Repetition accuracy | 0.2 mm |
| Switching output | NPN |
| Switching element function | N/O contact |
| Switch-on time | 2.5 ms |
| Switch-off time | 2.5 ms |
| Max switching frequency | 480 Hz |
| Max output current | 100 mA |
| Max switching capacity DC | 3 W |
| Voltage drop | 0.5 V |
| Short circuit protection | no |
| Overload protection | no |
| Rated operating voltage DC | 24 V |
| Operating voltage range DC | 10 to 30 V |
| Reverse polarity protection | for all electrical connections |
| Electrical connection, connection type | cable |
| Electrical connection, connector system | open end |
| Electrical connection, number of pins/wires | 3 |
| Connection outlet direction | in-line |
| Material screw-type lock | high-alloy stainless steel |
| Cable length | 2 m |
| Cable characteristic | standard, suitable for energy chains |
| Cable sheath material | PUR |
| Material insulating sheath | PP |
| Wire ends | cut off square |
| Type of mounting | screwed tight, insertable into the slot from above |
| Max tightening torque | 0.2 Nm |
| Mounting position | any |
| Housing material | PC |
| Switching status indication | yellow LED |
| Ambient temperature with moving cable | -20 to 70 °C |
| Degree of protection | IP67, IP68, to IEC 60529 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability to ISO 14644-14 | statically installed element, no meaningful evaluation possible to ISO 14644-1 |
| Weight | 0.017 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SDBC-MSB-1L-NU-K-2-LE |
| EAN | 4052568568504 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Norm | DIN EN 60947-5-2 |
| Operating voltage | 24 V DC |
| Protection rating | IP67 |
| Temperaturbereich | -20-70 °C |
| Temperature (max.) | 70 |
