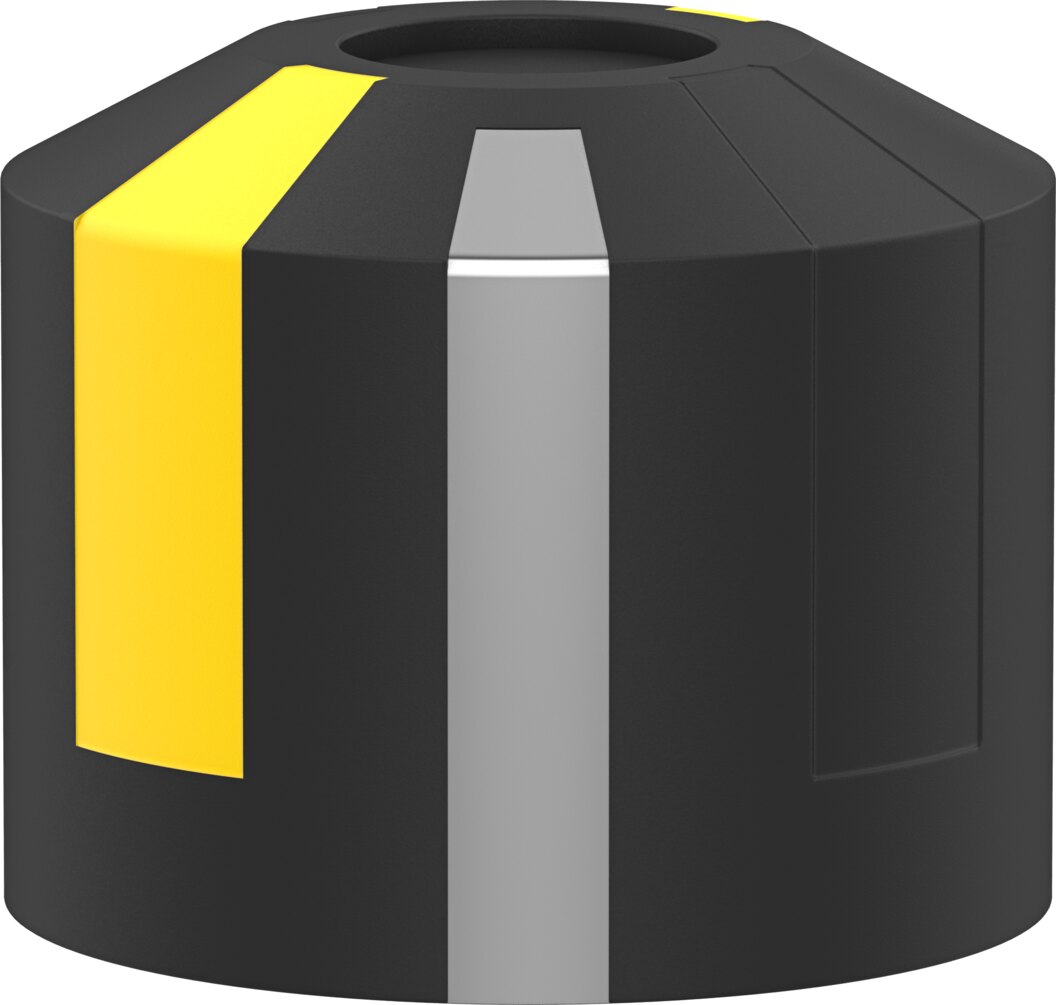

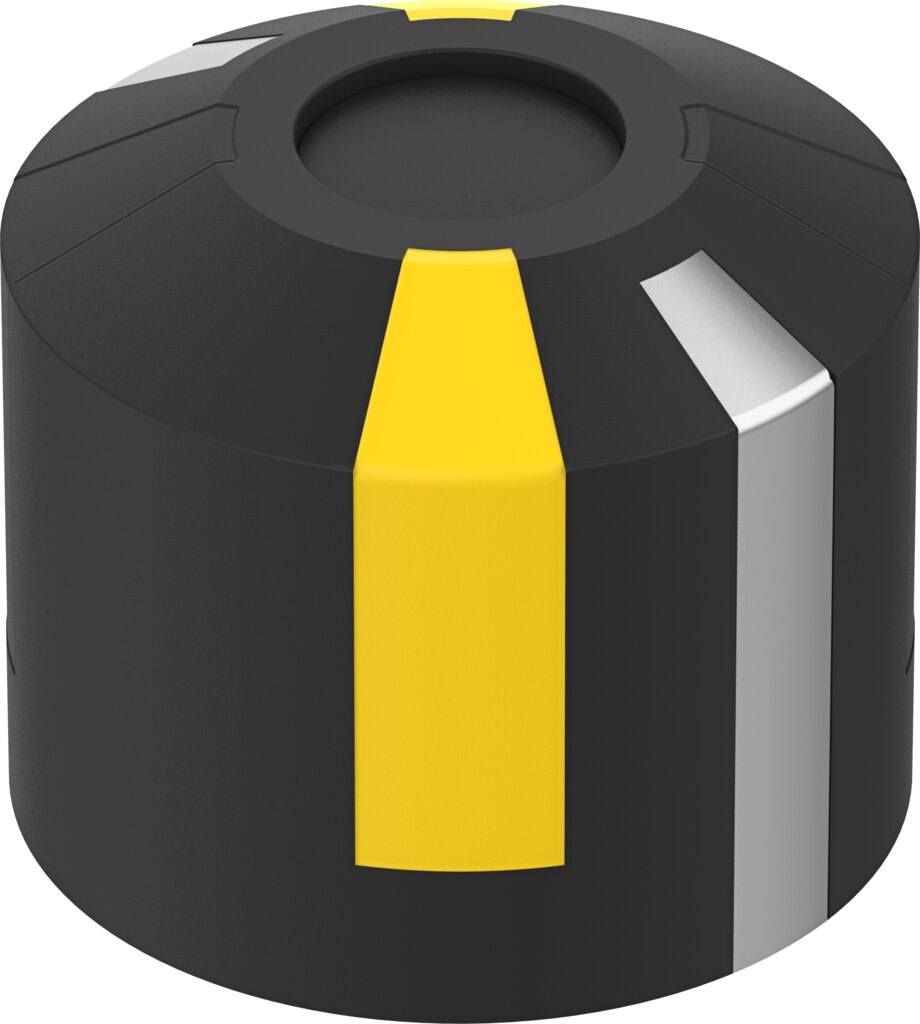

Position indicator SASF-S3-B-F-A20 - Festo 8140396
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Rotation angle adjustment range | 0 ... 180 deg |
|---|---|
| Connection point for positioner and position sensor conforms to standard | VDI/VDE 3845 size AA 1 |
| Dimensions (W x L x H) | Ø 40 x 32 |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | -25 ... 70 °C |
| Product weight | 24 g |
| Type of mounting | in accordance with VDI/VDE 3845 |
| Housing colour | Black |
| Note on materials | RoHS compliant |
| Material spacer | PP |
| Material housing | PP, High-alloy stainless steel |
| Material screws | High-alloy stainless steel |
| Weight | 0.024 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SASF-S3-B-F-A20 |
| EAN | 4052568568634 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
