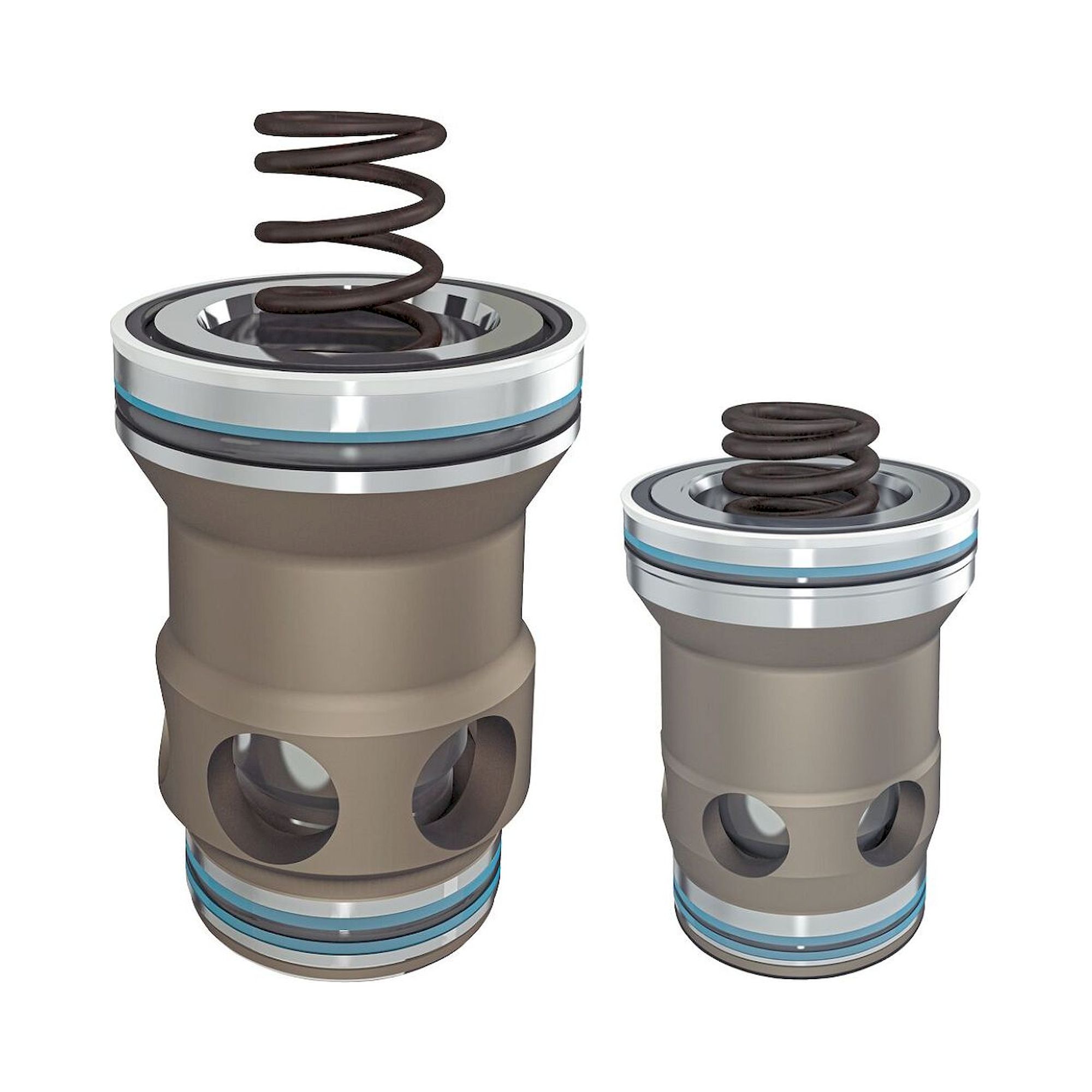

Logic cartridge valve LC40A40E7X/ size 40 2500 l/min 420 bar NBR - Bosch Rexroth R900927973

Bosch Rexroth LC40A40E7X/: size 40 2-way logic cartridge valve with 420 bar operating pressure and a max. flow of 2500 l/min. The valve is inserted into the NG 40 cartridge bore and piloted via a logic cover. According to the hydraulic symbol, the hydraulically actuated LC40A40E7X/ switches the oil flow direction.

Benefits

• High flow: max. 2500 l/min
• Maximum operating pressure 420 bar
• Installation dimensions to ISO 7368, size 40
• Spool symbol A40E, 2 switching positions
• NBR seals for hydraulic fluids HL, HLP, HLPD, HVLP, HVLPD, HFC
• Weight 1.76 kg

Applications

For control blocks with an NG 40 cartridge bore in stationary hydraulic systems, combined with a matching logic cover. Reorder using material number R900927973.
