Logic cover LFA16EWA-7X/CA20DQMG24 for 2-way cartridge valves size 16, 420 bar, NBR seals - Bosch Rexroth R900912640

Name: Logic cover LFA16EWA-7X/CA20DQMG24 for 2-way cartridge valves size 16, 420 bar, NBR seals - Bosch Rexroth R900912640
Brand: Bosch Rexroth
SKU: BRR-R900912640
Price: 1528.58 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

Logic cover LFA16EWA-7X/CA20DQMG24 closes 2-way cartridge valves in size 16 to ISO 7368 and is rated up to 420 bar. Max. 320 l/min, supply voltage 24 V DC, NBR seals, weight 3.78 kg.

Net

€1,528.58

excl. VAT

Item BRR-R900912640

Manufacturer no. R900912640

Question about this item

Datasheet (PDF) User manual 4 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The logic cover LFA16EWA-7X/CA20DQMG24 handles operating pressures up to 420 bar and 320 l/min and is built for cartridge valves in size 16. LFA16EWA-7X/CA20DQMG24 sits as a control cover on the 2-way cartridge valve, closes the ISO 7368 cavity and enables flow A to B, B to A.

Benefits

420 bar: maximum operating pressure of LFA16EWA-7X/CA20DQMG24 according to the manufacturer.
320 l/min flow: maximum throughput in size 16.
Connection diagram ISO 7368: LFA16EWA-7X/CA20DQMG24 fits standardised cavities in size 16.
NBR seals: LFA16EWA-7X/CA20DQMG24 is suitable for hydraulic fluid HL, HLP, HLPD, HVLP, HVLPD, HFC.

Applications

Cartridge valve controls in manifolds for industrial hydraulics with high flow rates. For replacement orders, type LFA16EWA-7X/CA20DQMG24 and material number R900912640 allow a reliable match.

Technical data

Type	LFA16EWA-7X/CA20DQMG24
Material number	R900912640
Product type	Control cover for 2-way cartridge valves
Size	16
Operating pressure (max.)	420 bar
Max. flow	320 l/min
Type of connection	Subplate mounting
Connection diagram	ISO 7368
Number of ports	2
Number of switching positions	2

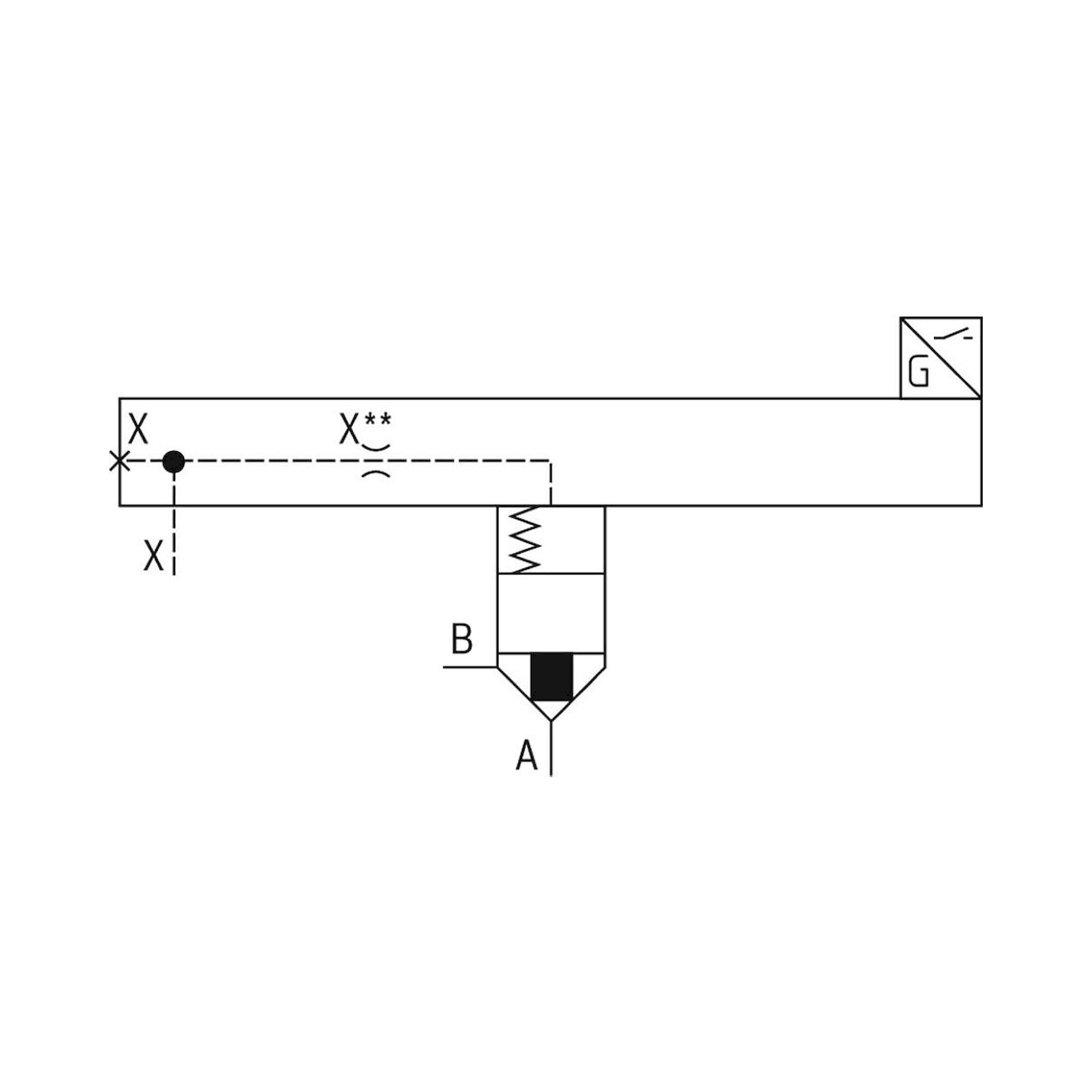

Spool symbol	A to B, B to A
Supply voltage	24 V DC
Seals	NBR
Hydraulic fluid	HL, HLP, HLPD, HVLP, HVLPD, HFC
Weight	3.78 kg
Manufacturer	Bosch Rexroth
Hersteller-Nr	R900912640
GPSR Herstellerdaten	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Artikelzustand	New
Artikel-Authentizität	Original product
Country of Manufacture	Germany
Bauform	Plattenaufbau
Seal material	NBR
Flow rate [l/min]	320
Norm	DIN EN 61076-2-101, ISO 7368
Operating voltage	24 V DC
Betriebsdruck max [bar]	420
