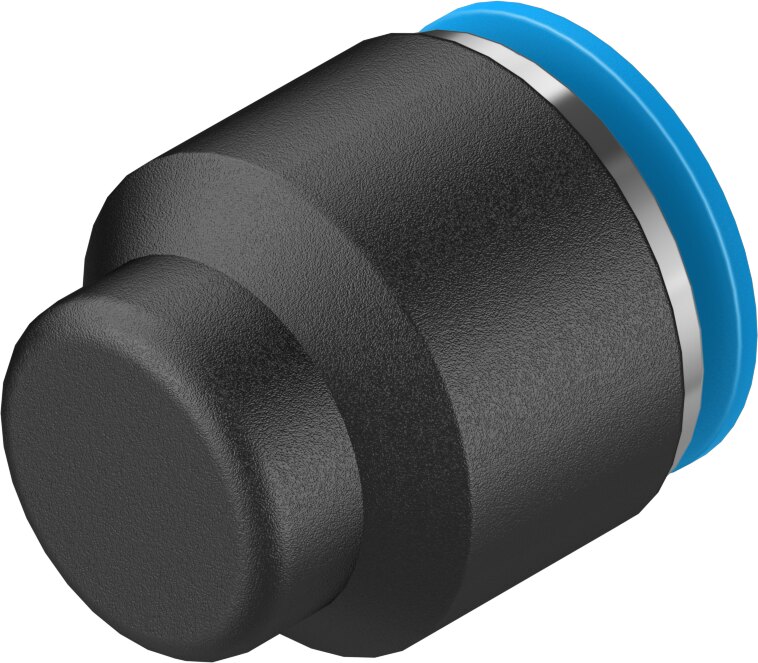

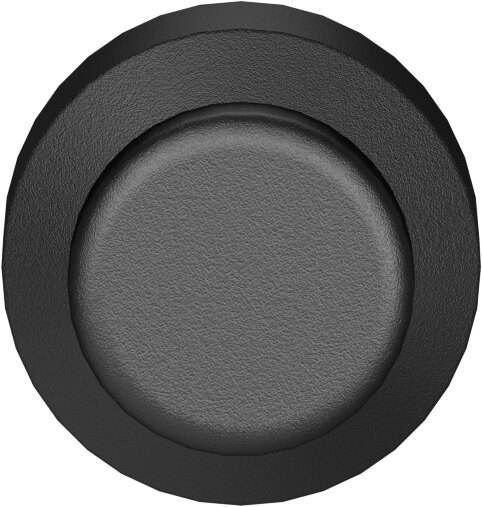

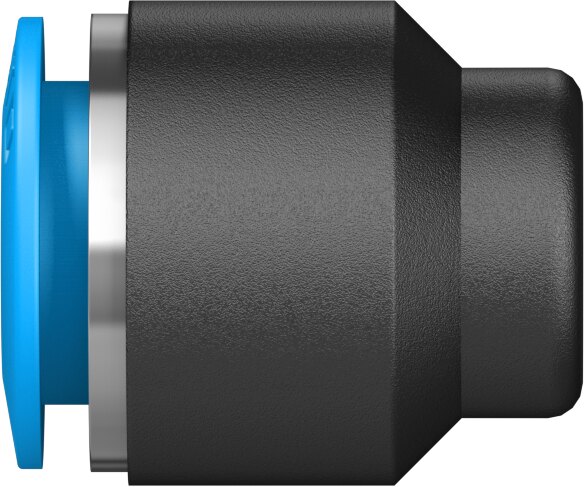

Push-in cap for tubing O.D. 3/8", -0.95 to 10 bar QSC-3/8-U - Festo 153832

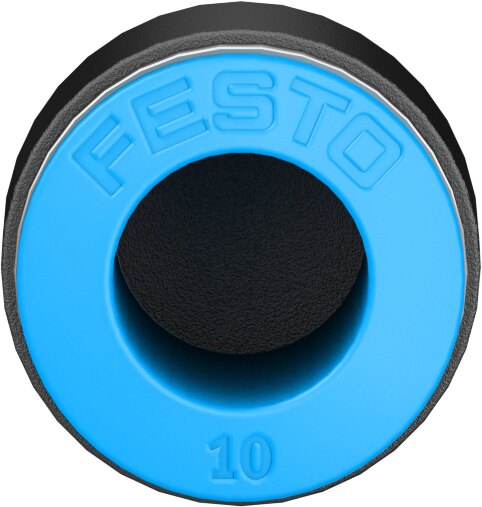

With the Festo push-in cap QSC-3/8-U, an open tube with O.D. 3/8" is reliably sealed. With -0.95 to 10 bar operating pressure it also suits vacuum lines, permitted ambient temperature is -10 to 60 °C. To connect, just push in the tube (3/8"), the grey release ring frees it again.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With the Festo push-in cap QSC-3/8-U, an open tube with O. D. 3/8" is reliably sealed. To connect, just push in the tube (3/8"), the grey release ring frees it again.
Benefits
- Pressure and vacuum -0.95 to 10 bar, so also suitable for vacuum
- Temperature range usable at -10 to 60 °C
- Flow free cross-section with nominal size 7.1 mm
- Grip and sealing clamping segment in high-alloy stainless steel, tubing seal in NBR
- PWIS PWIS conformity VDMA24364-B1/B2-L, relevant for paint shops
Applications
Handy during commissioning, testing and conversion to close lines with O. D. 3/8" temporarily. Designed for compressed air to ISO 8573-1:2010 [7:-:-] at 7.1 mm nominal size. Lubricated operation is possible. Housing in PBT, RoHS compliant.
Technical data
| Feature | Value |
|---|---|
| Type | QSC-3/8-U |
| Festo part number | 153832 |
| Size | Standard |
| Nominal size | 7.1 mm |
| Tubing insertion depth | 20.7 mm |
| Mounting position | Any |
| Design | Blanking plug |
| Construction | Push-pull principle |
| Operating pressure complete temperature range | -0.95 to 10 bar |
| Maritime classification | See certificate |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 to 60 °C |
| Product weight | 7.8 g |
| Pneumatic connection, port 1 | For tubing O. D. 3/8" |
| Colour of release ring | Grey |
| Note on materials | RoHS compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
| Weight | 0.008 kg |
| Manufacturer | Festo |
| Hersteller-Nr | QSC-3/8-U |
| EAN | 4052568311032 |
| Zolltarifnummer | 39269097 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Bauform | Blindstopfen |
| Nominal size DN [mm] | 7,1 |
| Size BG | Standard |
| Seal material | NBR |
| Medium | Compressed air |
| Series | QSC |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
