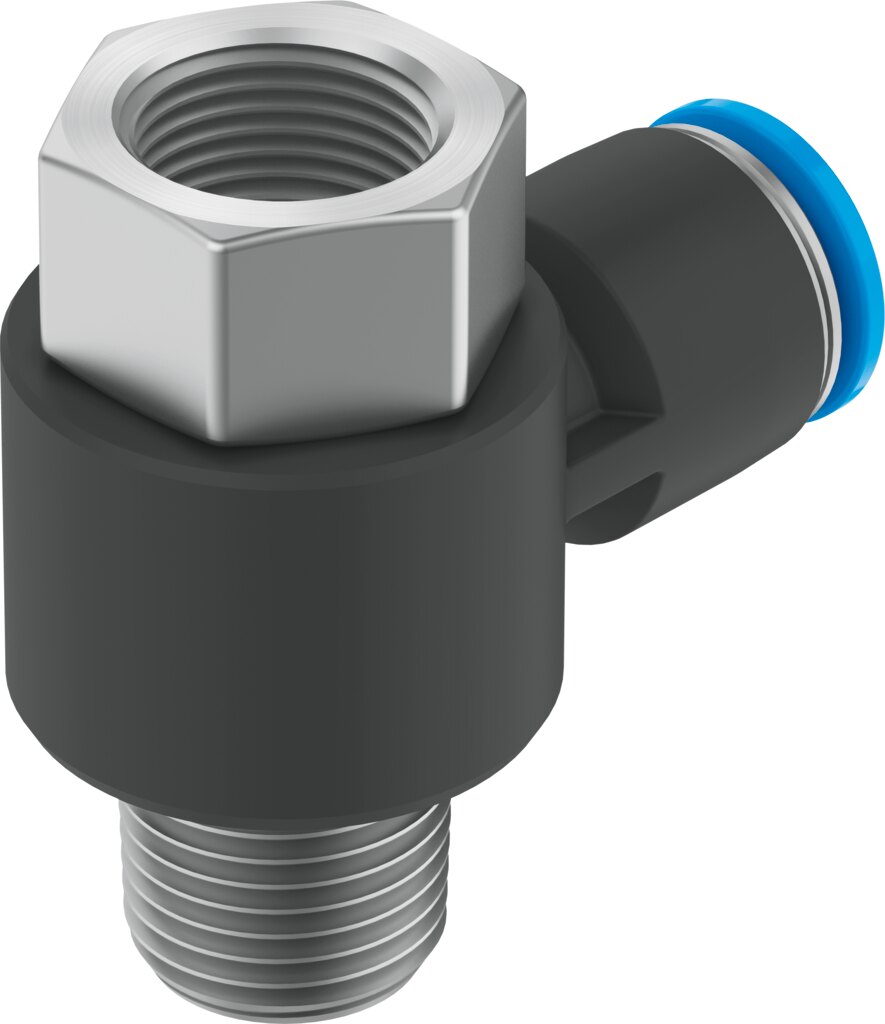

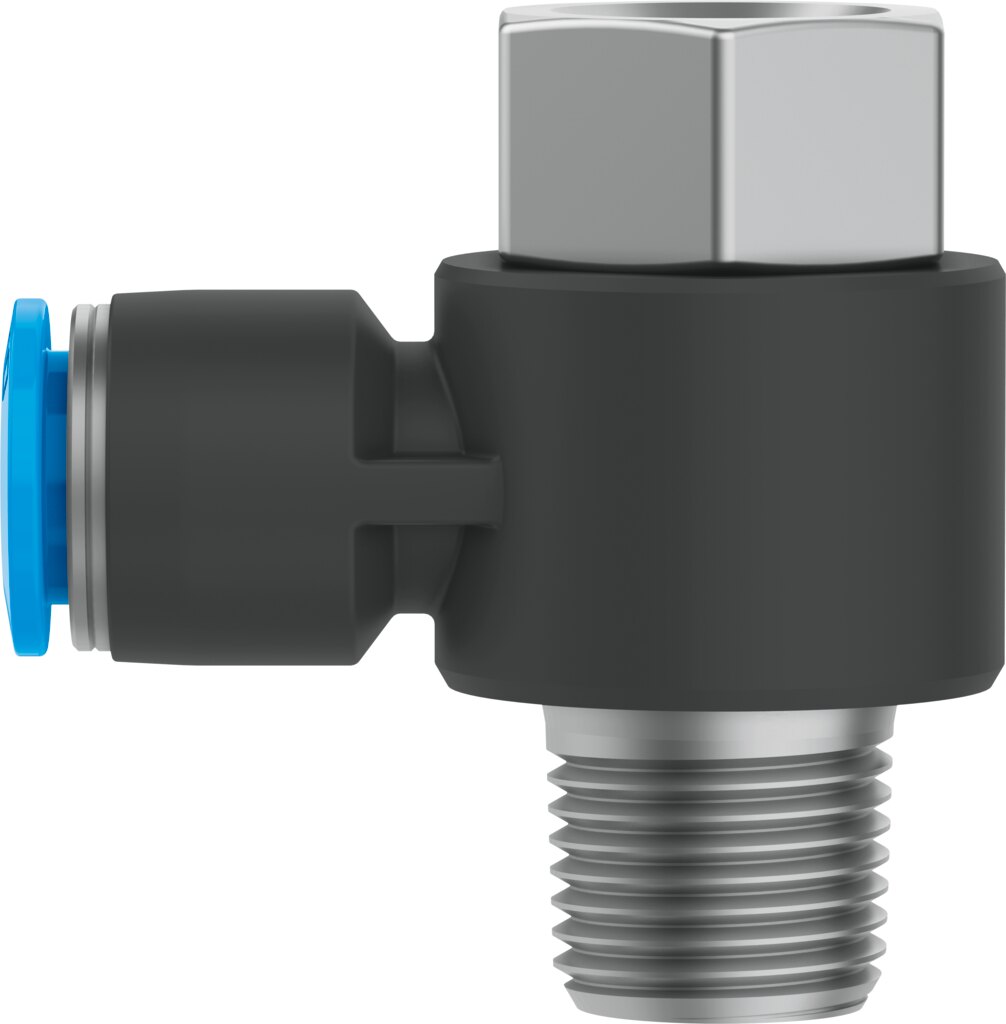

Push-in T-fitting male thread 3/8 NPT for tubing O.D. 3/8" QSTF-3/8-3/8-U - Festo 190831

Festo ✓ Original product Brand new

The Festo push-in T-fitting QSTF-3/8-3/8-U combines a male thread 3/8 NPT with a push-in port for tubing O.D. 3/8" and an additional female thread in line. Operating pressure is -0.95 to 10 bar, ambient temperature -10 to 60 °C.

Net
€10.84
excl. VAT
Item FES-190831
Manufacturer no. QSTF-3/8-3/8-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo push-in T-fitting QSTF-3/8-3/8-U combines a male thread 3/8 NPT with a push-in port for tubing O. D. 3/8" and an additional female thread in line. The 3/8" tube locks when pushed in and can be pulled out again after pressing the grey release ring.

Benefits

  • Pressure and vacuum -0.95 to 10 bar, so also suitable for vacuum
  • Temperature range permitted from -10 to 60 °C
  • Flow nominal size 8 mm
  • Grip and sealing clamping segment in high-alloy stainless steel, tubing seal in NBR
  • Thread threaded stud with sealing coating, no additional sealant needed
  • PWIS PWIS conformity VDMA24364-B1/B2-L, relevant for paint shops

Applications

The additional female thread takes a further component with a threaded port, without a separate tee. Permitted medium: compressed air to ISO 8573-1:2010 [7:-:-], nominal size 8 mm. Lubricated compressed air is also permitted. Housing in PBT, RoHS compliant.

Technical data

FeatureValue
TypeQSTF-3/8-3/8-U
Festo part number190831
SizeStandard
Nominal size8 mm
Type of seal on screwed plugCoating
Mounting positionAny
DesignL-shape, additional connection, female thread, lengthwise
ConstructionPush-pull principle
Operating pressure complete temperature range-0.95 to 10 bar
Maritime classificationSee certificate
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10 to 60 °C
Product weight71 g
Number of outputs2
Number of supply lines1
Type of mountingExternal hex 7/8
Pneumatic connection, port 1Male thread 3/8 NPT
Pneumatic connection, port 2For tubing outside diameter of 3/8"
Colour of release ringGrey
Note on materialsRoHS compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel
Weight0.07 kg
ManufacturerFesto
Hersteller-NrQSTF-3/8-3/8-U
EAN4052568324100
Zolltarifnummer74122000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPBT
BauformL-Form, Zusatzanschluss Innengewinde längs
ThreadNPT 3/8 AG
Nominal size DN [mm]8
Size BGStandard
Seal materialNBR
MediumCompressed air
SeriesQSTF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 3/8 AG
Temperaturbereich-10-60 °C
Temperature (max.)60
