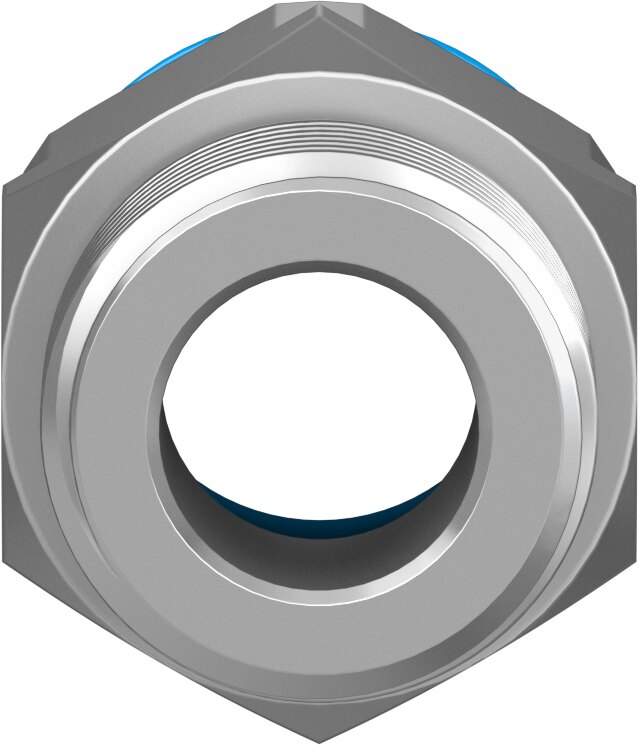

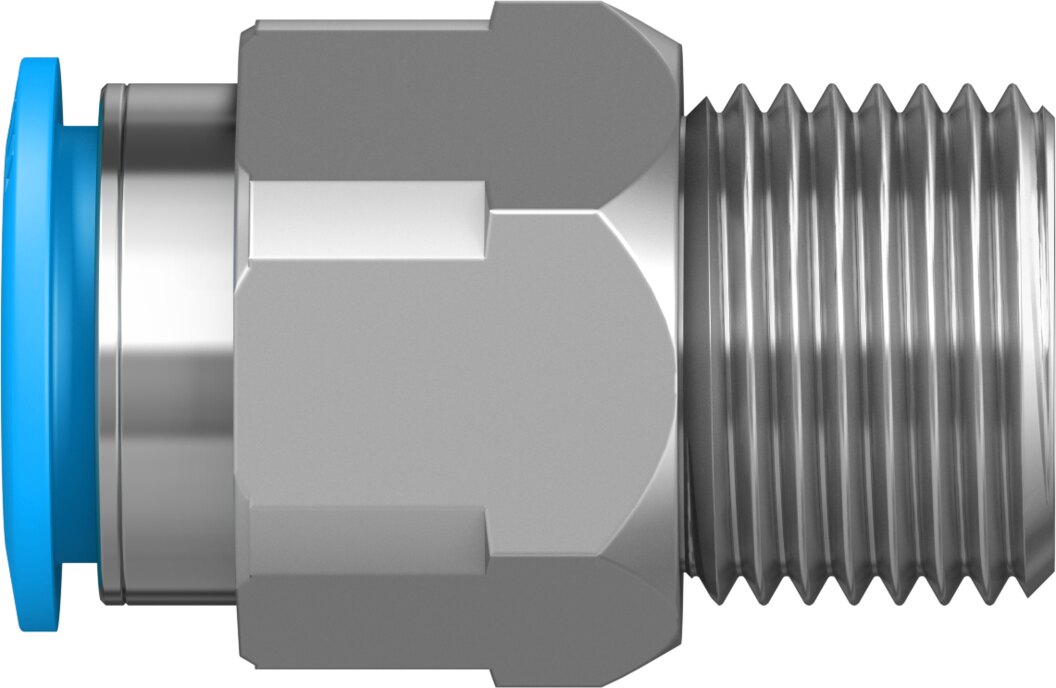

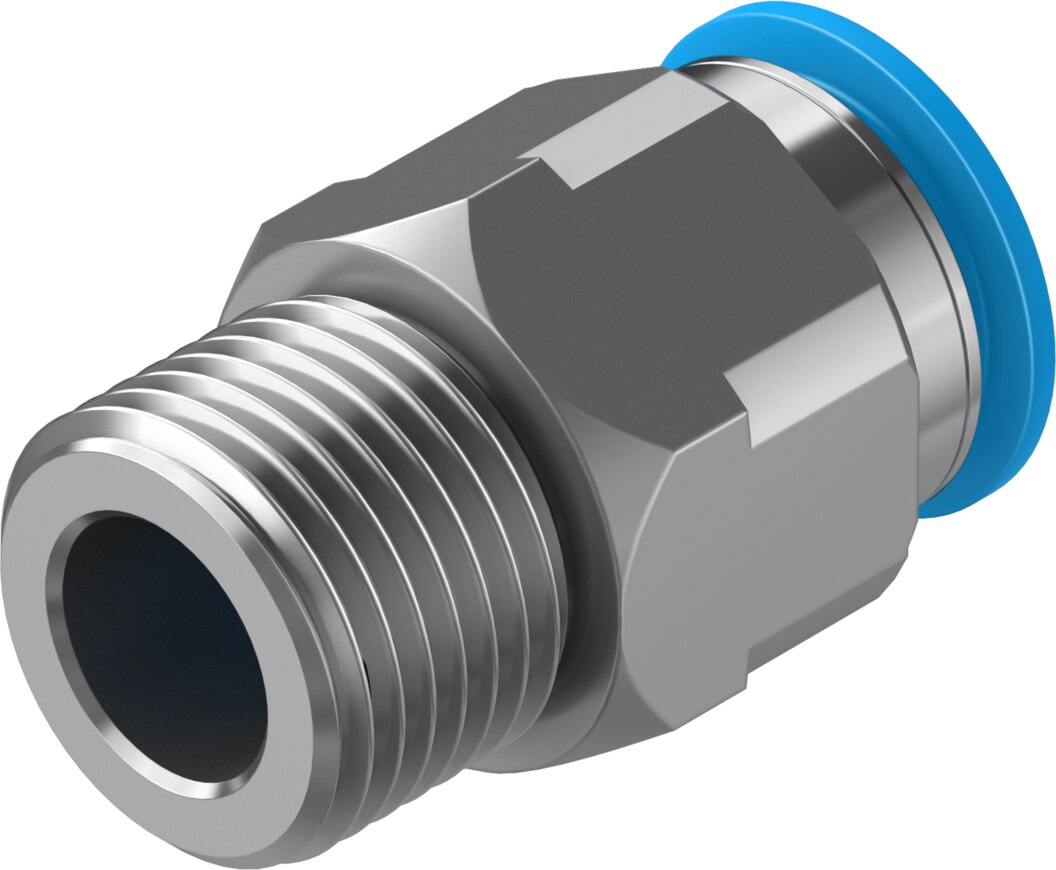

Push-in fitting male thread 1/2 NPT for tubing O.D. 5/8" QS-1/2-5/8-U - Festo 190682

Festo ✓ Original product Brand new

With the Festo push-in fitting QS-1/2-5/8-U, tubing with O.D. 5/8" is connected directly to a male thread 1/2 NPT. With -0.95 to 10 bar operating pressure it also suits vacuum lines, permitted ambient temperature is -10 to 60 °C.

Net
€8.82
excl. VAT
Item FES-190682
Manufacturer no. QS-1/2-5/8-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

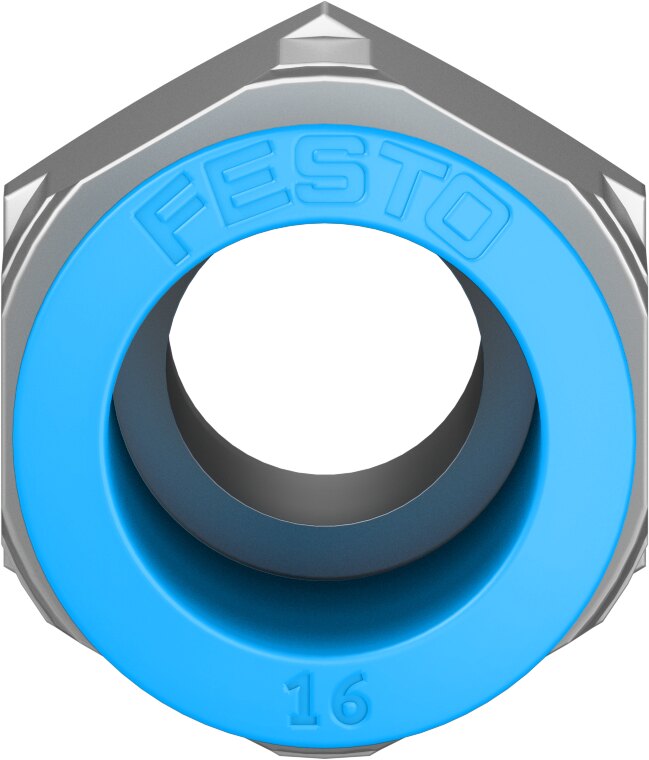

With the Festo push-in fitting QS-1/2-5/8-U, tubing with O. D. 5/8" is connected directly to a male thread 1/2 NPT. The 5/8" tube locks when pushed in and can be pulled out again after pressing the grey release ring.

Benefits

  • Pressure and vacuum -0.95 to 10 bar, so also suitable for vacuum
  • Temperature range usable at -10 to 60 °C
  • Flow free cross-section with nominal size 13 mm
  • Grip and sealing clamping segment in high-alloy stainless steel, tubing seal in NBR
  • Thread threaded stud with sealing coating, no additional sealant needed
  • PWIS PWIS conformity VDMA24364-B1/B2-L, relevant for paint shops

Applications

For connecting tubing with O. D. 5/8" directly to cylinders, valves and service units with male thread 1/2 NPT. Operating medium is compressed air to ISO 8573-1:2010 [7:-:-], nominal size 13 mm. Lubricated operation is possible. The body is nickel-plated.

Technical data

FeatureValue
TypeQS-1/2-5/8-U
Festo part number190682
SizeStandard
Nominal size13 mm
Type of seal on screwed plugCoating
Mounting positionAny
DesignStraight design
ConstructionPush-pull principle
Operating pressure complete temperature range-0.95 to 10 bar
Maritime classificationSee certificate
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10 to 60 °C
Product weight69 g
Type of mountingExternal hexagon 1
Pneumatic connection, port 1Male thread 1/2 NPT
Pneumatic connection, port 2For tubing outside diameter of 5/8"
Colour of release ringGrey
Note on materialsRoHS compliant
Material housingnickel-plated
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel
Weight0.08 kg
ManufacturerFesto
Hersteller-NrQS-1/2-5/8-U
EAN4052568323073
Zolltarifnummer74122000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Bauformgerade Form
ThreadNPT 1/2 AG
Nominal size DN [mm]13
Size BGStandard
Seal materialNBR
MediumCompressed air
SeriesQS
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/2 AG
Temperaturbereich-10-60 °C
Temperature (max.)60
