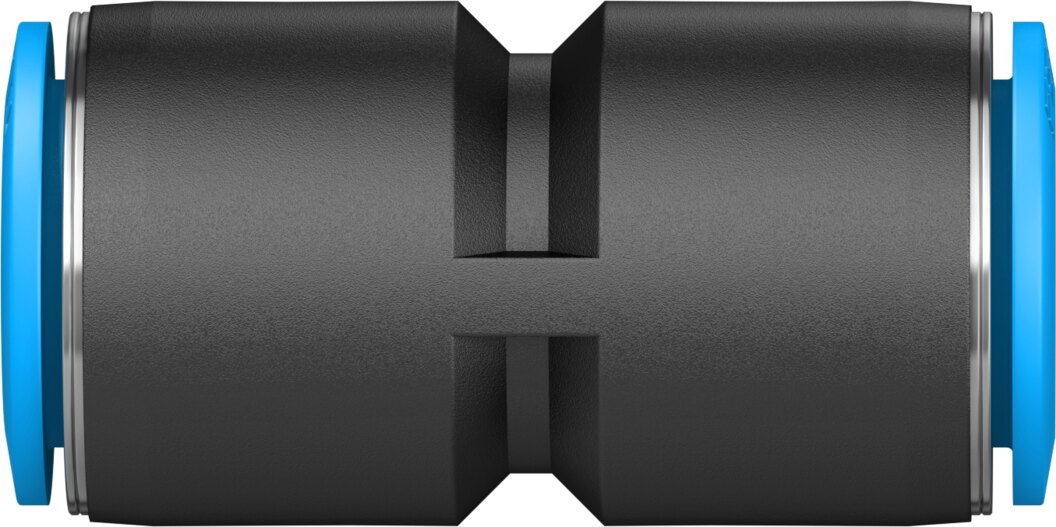

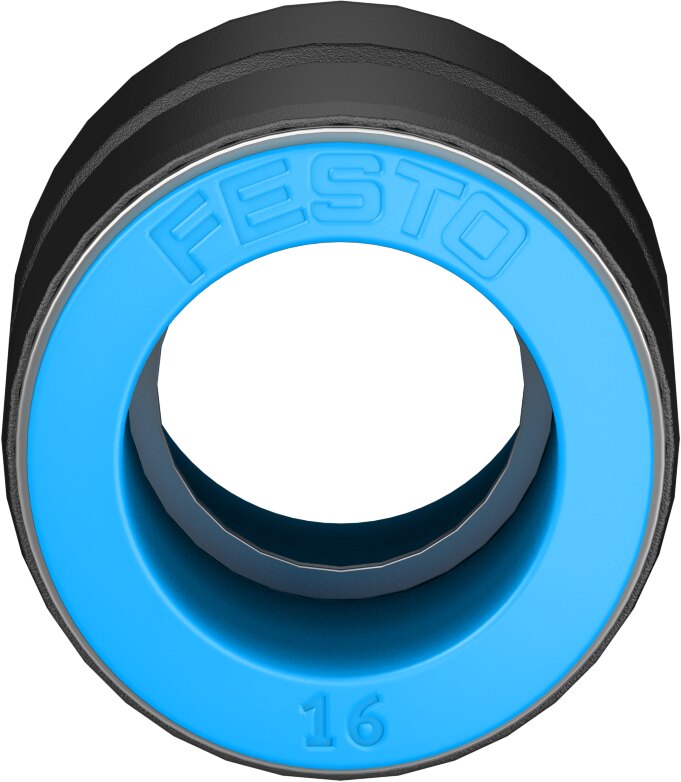

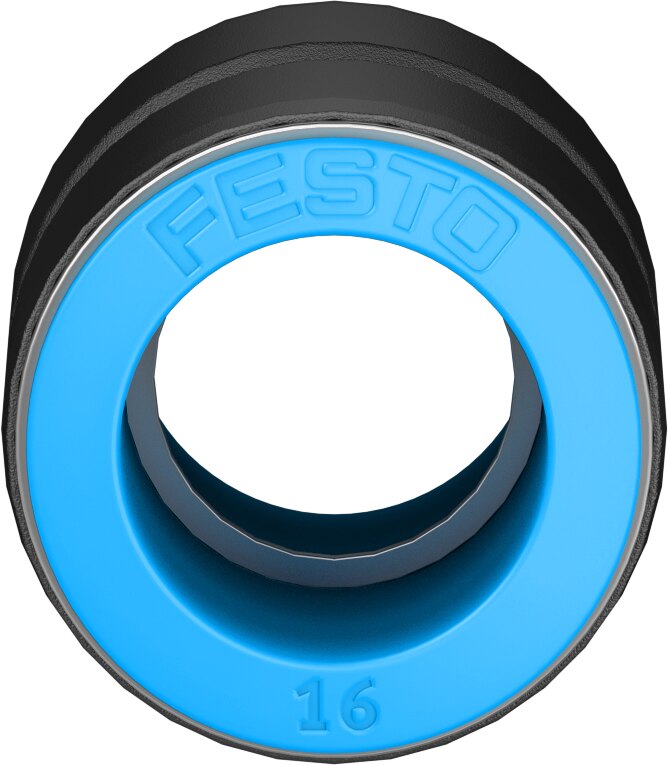

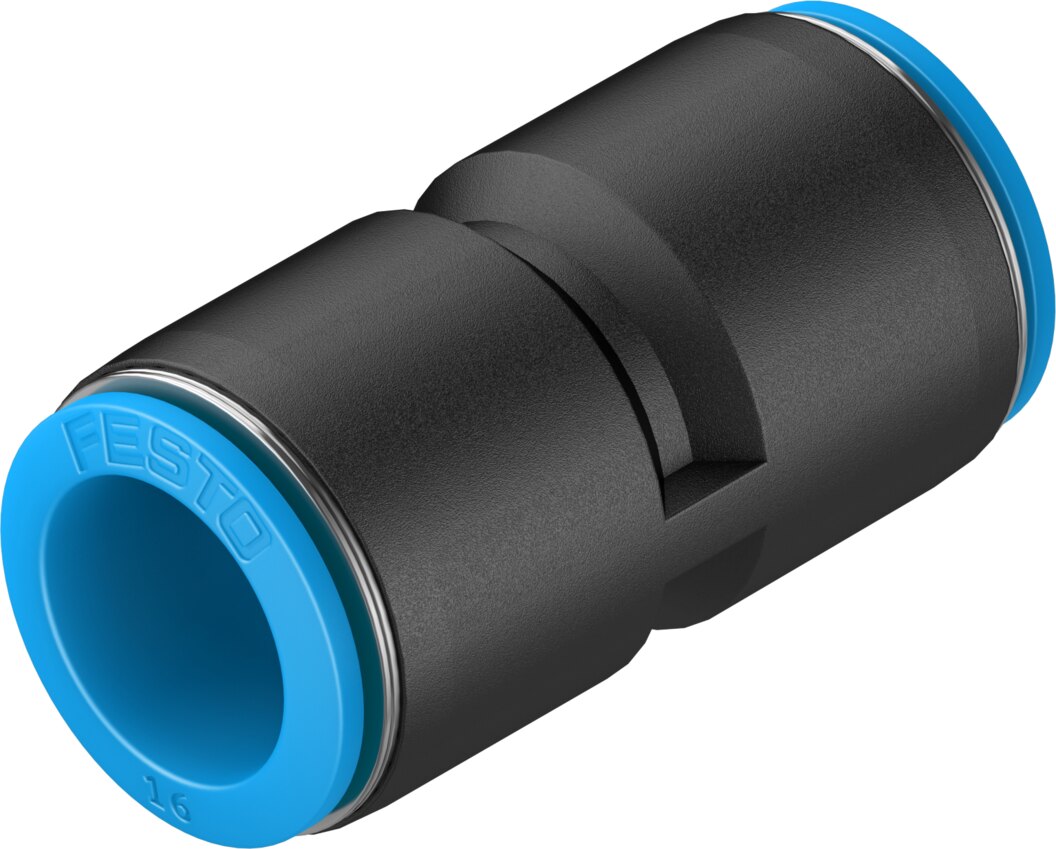

Push-in connector for tubing O.D. 5/8", -0.95 to 10 bar QS-5/8T-U - Festo 190589

Festo ✓ Original product Brand new

With the Festo push-in connector QS-5/8T-U, two lines with tubing O.D. 5/8" are connected in a straight line. It can be used from -0.95 to 10 bar and at -10 to 60 °C ambient temperature, so vacuum lines are covered too.

Net
€8.96
excl. VAT
Item FES-190589
Manufacturer no. QS-5/8T-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the Festo push-in connector QS-5/8T-U, two lines with tubing O. D. 5/8" are connected in a straight line. Following the push-pull principle, the tube (5/8") is simply pushed in and released again via the grey release ring.

Benefits

  • Pressure and vacuum -0.95 to 10 bar, so also suitable for vacuum
  • Temperature range usable at -10 to 60 °C
  • Flow free cross-section with nominal size 13 mm
  • Grip and sealing clamping segment in high-alloy stainless steel, tubing seal in NBR
  • PWIS PWIS conformity VDMA24364-B1/B2-L, relevant for paint shops

Applications

Handy for joining or repairing compressed-air lines with tubing O. D. 5/8". Designed for compressed air to ISO 8573-1:2010 [7:-:-] at 13 mm nominal size. Lubricated operation is possible. The body is made of PBT.

Technical data

FeatureValue
TypeQS-5/8T-U
Festo part number190589
SizeStandard
Nominal size13 mm
Mounting positionAny
DesignStraight design
ConstructionPush-pull principle
Operating pressure complete temperature range-0.95 to 10 bar
Maritime classificationSee certificate
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10 to 60 °C
Product weight26 g
Pneumatic connection, port 1For tubing O. D. 5/8"
Pneumatic connection, port 2For tubing outside diameter of 5/8"
Colour of release ringGrey
Note on materialsRoHS compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel
Weight0.026 kg
ManufacturerFesto
Hersteller-NrQS-5/8T-U
EAN4052568322748
Zolltarifnummer39174000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPBT
Bauformgerade Form
Nominal size DN [mm]13
Size BGStandard
Seal materialNBR
MediumCompressed air
SeriesQS
Betriebsdruck max [bar]10
Temperaturbereich-10-60 °C
Temperature (max.)60
