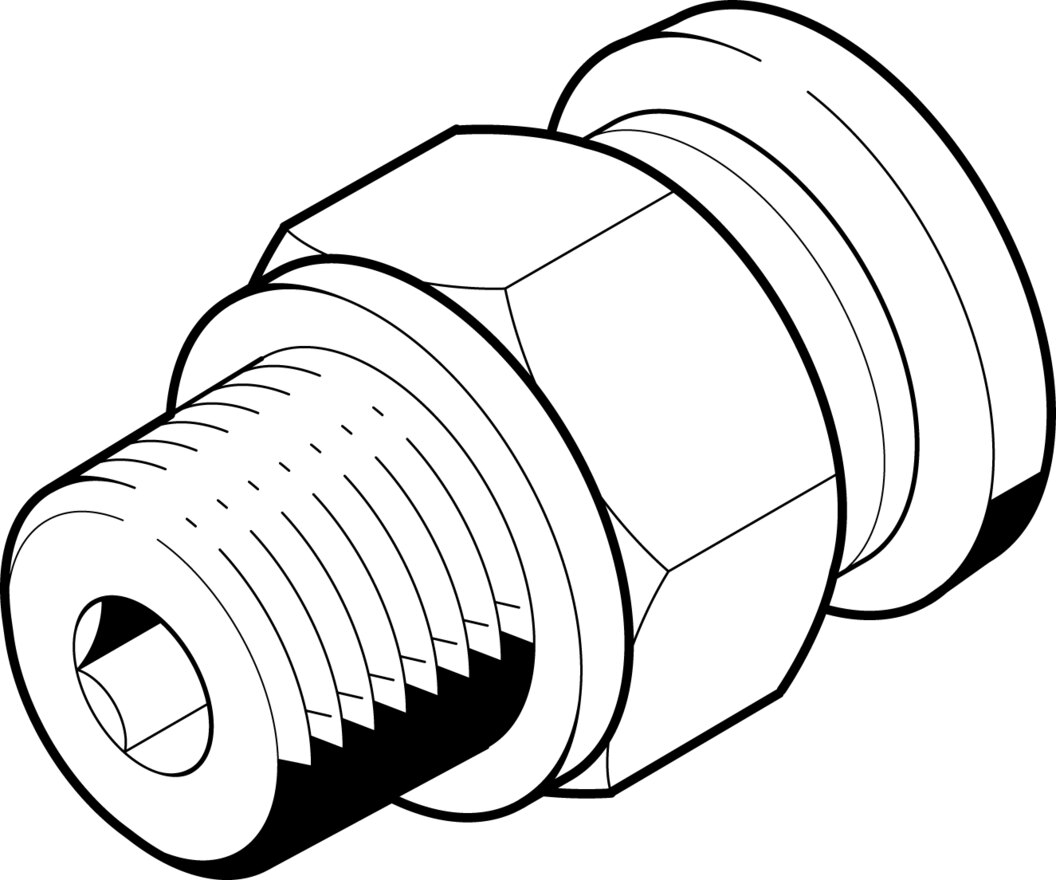

Push-in fitting in PBT with male thread R1/8 for tubing O.D. 3/16" QB-1/8-3/16-U-M - Festo 533215

Festo ✓ Original product Brand new

The push-in fitting QB-1/8-3/16-U-M combines male thread R1/8 with a connection for tubing O. D. 3/16". Operating pressure max. 10 bar, nominal width 2.997 mm, housing in PBT. Permitted ambient temperature: 0 to 60 °C. CRC 1, low corrosion stress. price per piece. RoHS compliant.

Net
€1.70
excl. VAT
Item FES-533215
Manufacturer no. QB-1/8-3/16-U-M
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The push-in fitting QB-1/8-3/16-U-M combines male thread R1/8 with a connection for tubing O. D. 3/16". Nominal width 2.997 mm, operating pressure max. 10 bar.

Benefits

  • Male thread R1/8 with sealing coating
  • Connection for tubing O. D. 3/16"
  • Nominal width 2.997 mm
  • Operating pressure max. 10 bar
  • Housing in PBT, corrosion resistance class 1
  • Ambient temperature 0 to 60 °C

Applications

The QB-1/8-3/16-U-M suits systems with inch tubing (O. D. 3/16") and connects via male thread R1/8 to valves, cylinders or service units.

Technical data

FeatureValue
TypeQB-1/8-3/16-U-M
Festo part number533215
Sizestandard
Nominal width2.997 mm
Seal type on screw-in studcoating
Designstraight
Operating pressure, full temperature rangemax. 10 bar
Maritime classificationsee certificate
Operating mediumcompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumlubricated operation possible
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Ambient temperature0 to 60 °C
Product weight14.799 g
Mounting typeexternal hex A/F 12, internal hex A/F 3
Pneumatic connection 1male thread R1/8
Pneumatic connection 2for tubing O. D. 3/16"
Release ring colourgrey
Material noteRoHS compliant
Housing materialPBT
Thread seal materialNBR
Release ring materialPOM
Tubing clamp segment materialhigh-alloy stainless steel
Weight0.01 kg
ManufacturerFesto
Hersteller-NrQB-1/8-3/16-U-M
EAN4052568340407
Zolltarifnummer74122000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPBT
ThreadR 1/8
Seal materialNBR
MediumCompressed air
Thread typeExternal thread
Schlüsselweite [mm]12
Betriebsdruck max [bar]10
Pneumatic connectionR1/8
Temperaturbereich0-60 °C
Temperature (max.)60
