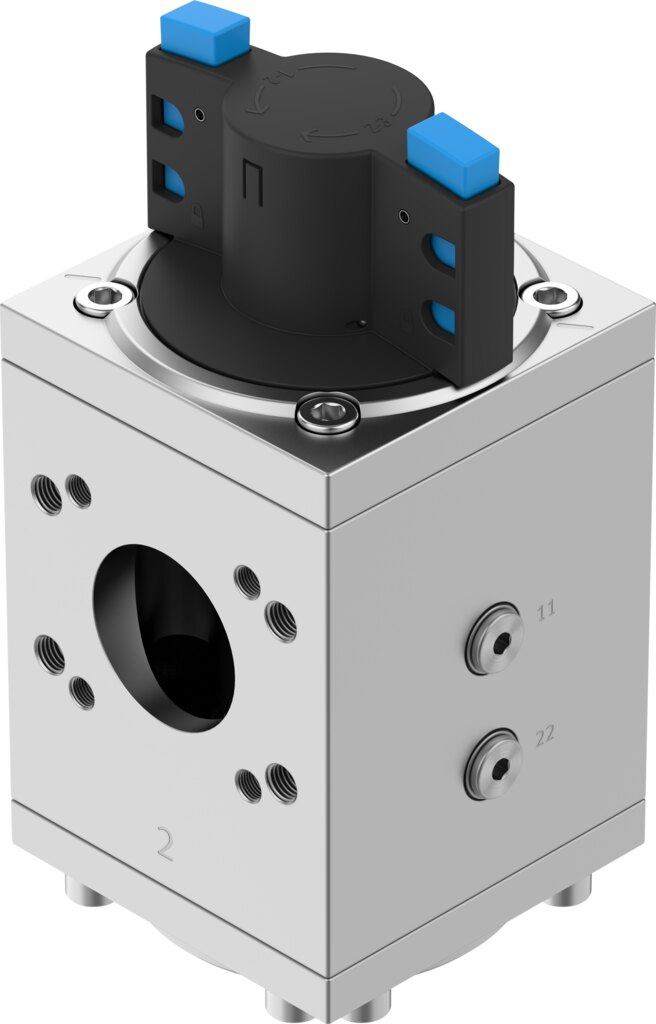

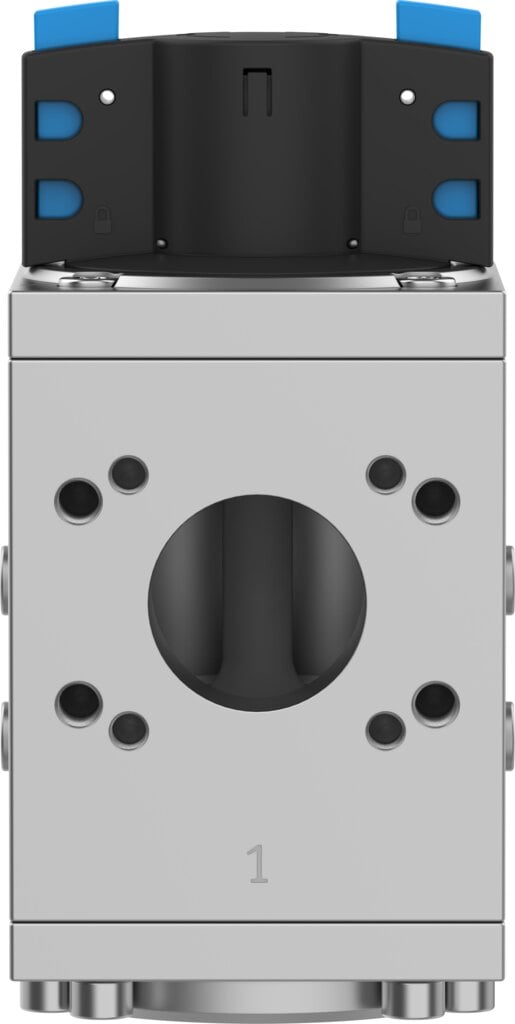

On-off valve for the compressed air supply, G1/2, 3/2-way, up to 50 bar PVEL-H-124-HP3 - Festo 1629207
The PVEL-H-124-HP3 on-off valve supplies the system with compressed air or exhausts it as required. Main data: port G1/2, operating pressure 0 to 50 bar, valve function 3/2-way, double solenoid and housing made of wrought aluminium alloy.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The PVEL-H-124-HP3 on-off valve supplies the system with compressed air or exhausts it as required. Decisive for selection: port G1/2 and operating pressure 0 to 50 bar.
Benefits
- Rated for an operating pressure of 0 to 50 bar
- Pneumatic port G1/2 for direct piping
- Valve function 3/2-way, double solenoid
- Suitable for ambient temperatures of 5 to 50 °C
- PWIS conformity VDMA24364 zone III
- CRC 2: designed for moderate corrosion stress
Application
It is installed in the service unit upstream of the consumers. The PVEL-H-124-HP3 works with compressed air to ISO 8573-1:2010 [7:4:4], inert gases.
Technical data
| Type | PVEL-H-124-HP3 |
|---|---|
| Festo part number | 1629207 |
| Series | L |
| Nominal size DN | 54 |
| Design | piston spool |
| Actuation type | manual |
| Sealing principle | soft |
| Exhaust function | not throttleable |
| Actuator lock | Rotary knob with detent, can be closed with accessories |
| Reset method | positive guidance |
| Pilot type | direct |
| Valve function | 3/2-way, double solenoid |
| Operating pressure | 0 to 50 bar |
| Overlap | negative overlap |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4], inert gases |
| Note on operating and pilot medium | lubricated operation possible (then required for further operation) |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| Note on materials | RoHS-compliant |
| PWIS conformity | VDMA24364 zone III |
| Medium temperature | 5 to 50 °C |
| Ambient temperature | 5 to 50 °C |
| CE marking (see declaration of conformity) | in accordance with EU Pressure Equipment Directive |
| UKCA marking (see declaration of conformity) | to UK Pressure Equipment Regulations |
| Food suitability | see supplementary material information |
| Mounting position | any |
| Product weight | 5900 g |
| Pneumatic port 3 | G1/2 |
| Piston spool material | wrought aluminium alloy |
| Housing material | wrought aluminium alloy |
| Weight | 7 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PVEL-H-124-HP3 |
| EAN | 4052568263645 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | G 1/2 |
| Medium | Compressed air |
| Function | 3/2 bistable |
| Betriebsdruck max [bar] | 50 |
| Temperature (max.) | 50 |
