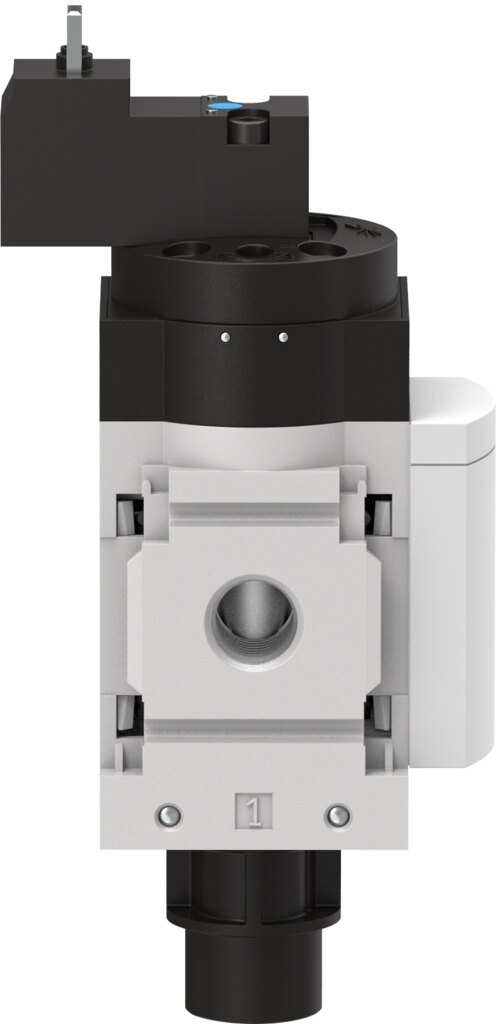

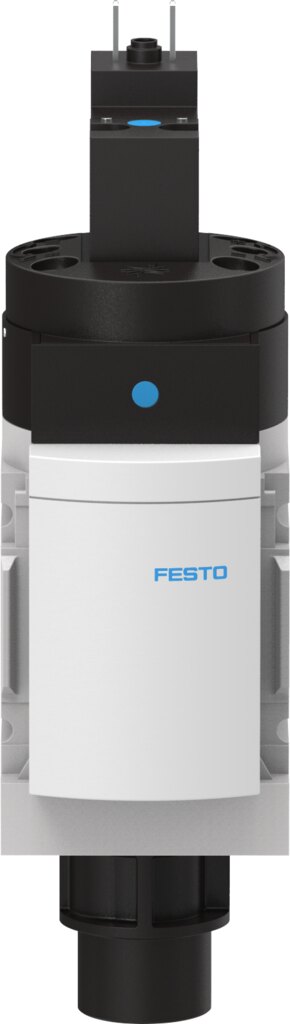

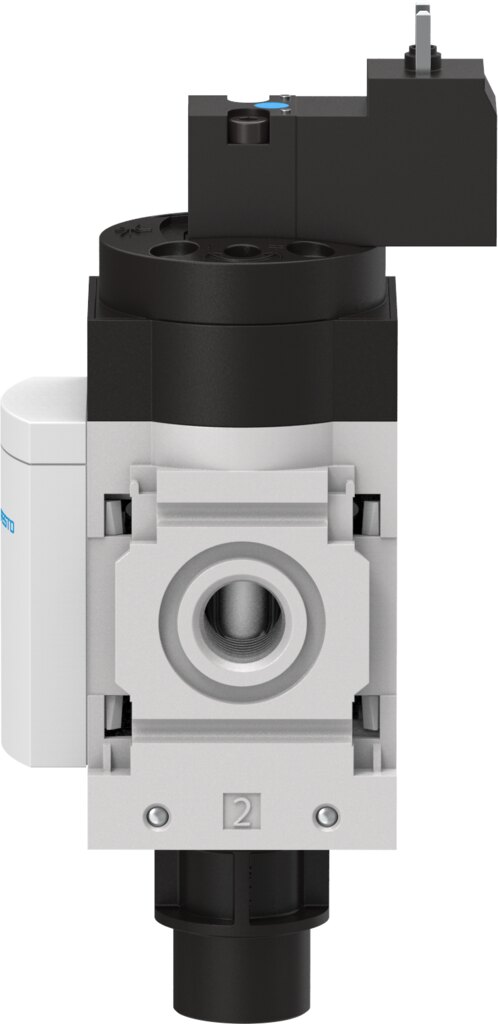

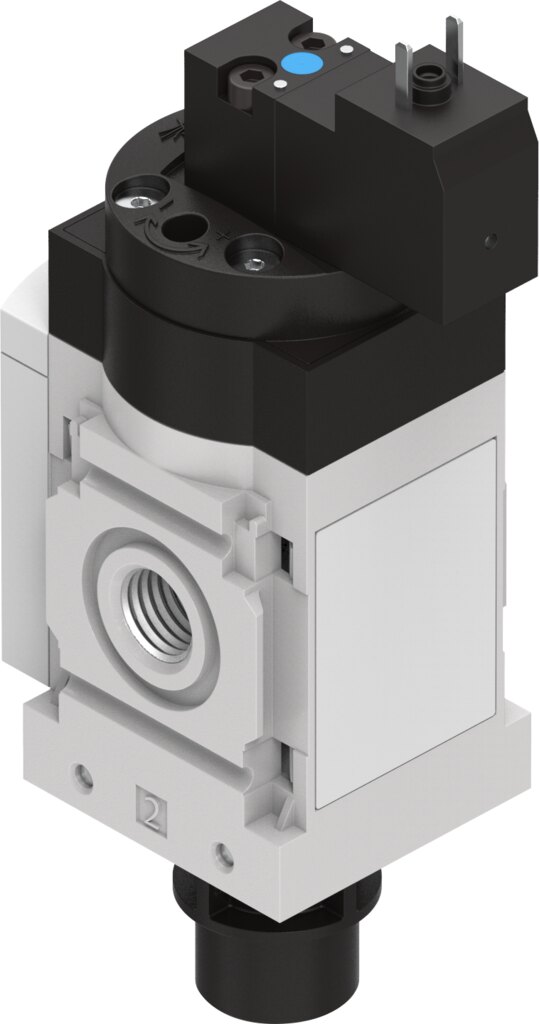

On/off valve 110 V AC, 3/2-way, MS4 series MS4-EE - Festo 527709
The on/off valve MS4-EE switches the compressed air supply of the system on and exhausts it when switched off. 1000 to 2000 l/min standard nominal flow rate. Electrically piloted, coil 110 V AC.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo MS4-EE switches the compressed air supply of the system on and exhausts it when switched off: 3/2-way, single solenoid, closed, operating pressure 4 to 14 bar.
Why it pays off
- 1000 to 2000 l/min standard nominal flow rate to DIN 1343
- Coil 110 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA, 230 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA, 24 V DC: 1.8 W
- Operating pressure 4 to 14 bar
- Degree of protection IP65
- Media temperature -10 to 60 °C
Applications
With the MS4-EE, compressed air is switched on centrally, and on switch-off the residual pressure escapes via the exhaust port.
Technical data
| Type | MS4-EE |
|---|---|
| Festo part number | 527709 |
| Design | Piston gate valve |
| Type of actuation | Electrical |
| Exhaust-air function | Cannot be throttled |
| Manual override | Detenting, none, Non-detenting |
| Type of reset | Mechanical spring |
| Type of piloting | Piloted |
| Valve function | 3/2-way, single solenoid, closed |
| Pressure indicator | Prepared for G1/4, prepared for G1/8, with pressure sensor, with pressure gauge |
| Operating pressure | 4 to 14 bar |
| Overlap | Overlap |
| Standard nominal flow rate (standardised to DIN 1343) | 1000 to 2000 l/min |
| Duty cycle | 100% |
| Characteristic coil data | 110 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA, 230 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA, 24 V DC: 1.8 W |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gas |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 to 60 °C |
| Degree of protection | IP65 |
| Ambient temperature | -10 to 60 °C |
| Approval | c UL us - Recognised (Oil) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, to EU Explosion Protection Directive (ATEX), to EU Low Voltage Directive, in accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC, to UK EX instructions, to UK RoHS instructions, to UK regulations for electrical equipment |
| Explosion protection certification outside the EU | EPL Gc (GB) |
| Explosion protection | Zone 2 (ATEX), zone 2 (UKEX), zone 22 (ATEX), zone 22 (UKEX) |
| ATEX category gas | II 3G |
| ATEX category dust | II 3D |
| Explosion ignition protection type for gas | Ex nA IIC T4 X Gc |
| Explosion ignition protection type for dust | Ex tc IIIC T105°C IP65 Dc X |
| Explosion ambient temperature | -10°C ≤ Ta ≤ +60°C |
| Suitable for use with food | See supplementary material information |
| Type of mounting | Either: Inline installation, with accessories |
| Mounting position | Any |
| Flow direction | Non-reversible |
| Product weight | 273 g |
| Pneumatic connection, port 3 | G1/4 |
| Pilot air supply | Internal |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
| Weight | 0.41 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS4-EE |
| Zolltarifnummer | 90330090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Seal material | NBR |
| Housing material | Die-cast aluminium |
| Medium | Compressed air, neutral gases |
| Function | 3/2 closed monostable |
| Actuation type | Electrical |
| Operating voltage | 110 V AC |
| Series | MS4 |
| Betriebsdruck max [bar] | 14 |
| Protection rating | IP65 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
