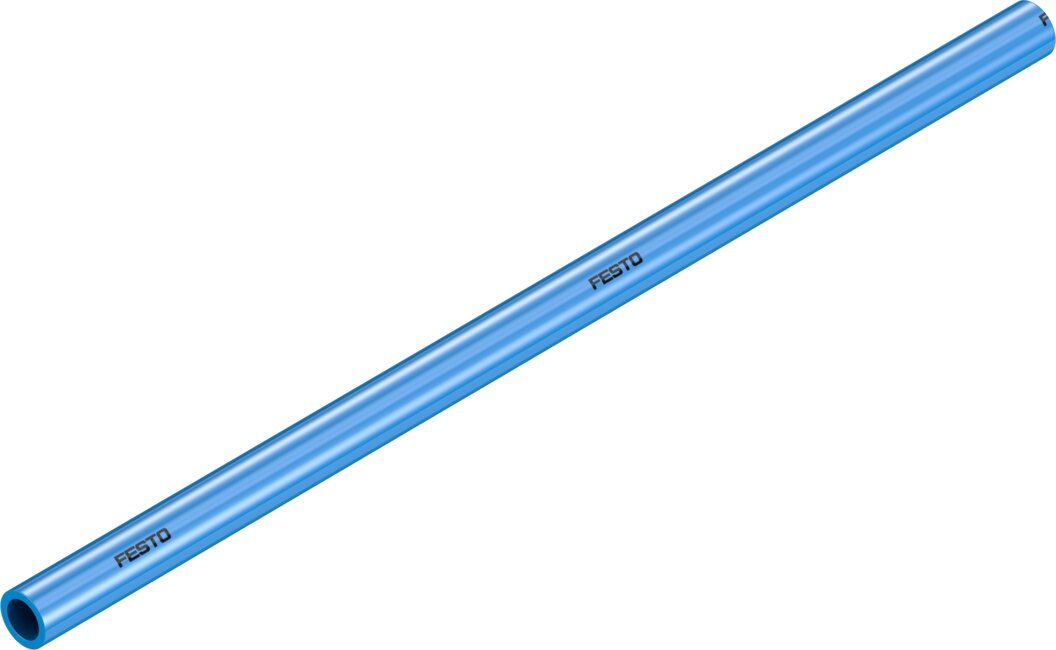

Plastic tubing PU 10 x 6 mm UL94 V-0/V-2 blue PUN-V0-10X2-BL-C - Festo 561704
Plastic tubing with 10 mm outside and 6 mm inside diameter for pneumatic lines. Operating pressure -0.95 to 16 bar depending on temperature, -0.95 to 9 bar across the full temperature range, bending radius from 12 mm and ambient -35 to 60 °C. Fire behaviour UL94 V-0 (3mm), UL94 V-2 (0.75mm).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The plastic tubing PUN-V0-10X2-BL-C carries compressed air and water between valves, cylinders and service units.
Benefits
- Operating pressure -0.95 to 16 bar (temperature-dependent)
- -0.95 to 9 bar across the full temperature range
- Minimum bending radius 12 mm, flow-relevant 42 mm
- Suitable for energy chains, Shore hardness D 54 ± 3
- Material fire behaviour UL94 V-0 (3mm), UL94 V-2 (0.75mm)
- Ambient temperature -35 to 60 °C
Applications
Operating medium compressed air to ISO 8573-1:2010 [7:-:-], water. Suitable for energy chains and moving cable routing.
Technical data
| Feature | Value |
|---|---|
| Type | PUN-V0-10X2-BL-C |
| Festo part number | 561704 |
| Outside diameter | 10 mm |
| Flow-relevant bending radius | 42 mm |
| Inside diameter | 6 mm |
| Minimum bending radius | 12 mm |
| Tubing characteristics | suitable for energy chains |
| Operating pressure complete temperature range | -0.95 to 9 bar |
| Temperature-dependent operating pressure | -0.95 to 16 bar |
| Approval | TÜV |
| Certificate issuing authority | B 013277 0527 00 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free) |
| Fire test material | UL94 V-0 (3mm), UL94 V-2 (0.75mm) |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -35 to 60 °C |
| Note on ambient temperature | For unpressurised use up to 90 °C |
| Product weight according to length | 0.064 kg/m |
| Colour | Blue |
| Note to colour | Deviates from the standard colour due to flame protection |
| Shore hardness | D 54 ± 3 |
| Note on materials | RoHS compliant |
| Material tubing | TPE-U(PU) |
| Weight | 0.07 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PUN-V0-10X2-BL-C |
| EAN | 4052568056421 |
| Zolltarifnummer | 39173200 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Farbe | blau |
| Material | Polyurethan |
| Medium | Compressed air, water |
| Schlauchdurchmesser (außen) [mm] | 10 |
| Schlauchdurchmesser (außen x innen) [mm] | 10 x 6 |
| Schlauchdurchmesser (innen) [mm] | 6 |
| min. Biegeradius [mm] | 12 |
| Betriebsdruck max [bar] | 16 |
| Temperaturbereich | -35-60 °C |
