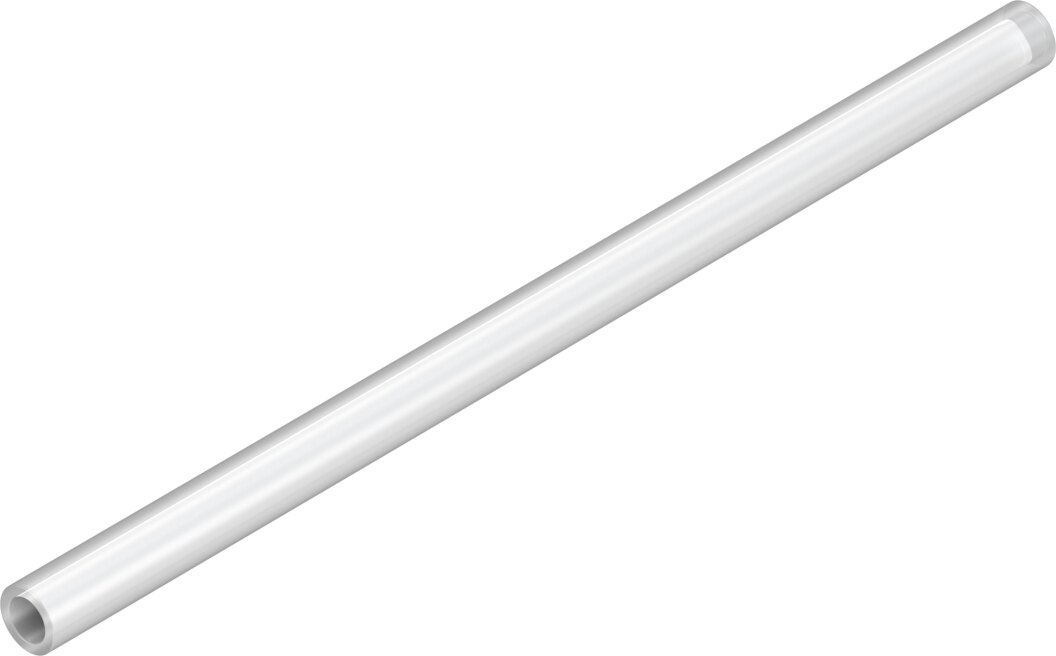

Plastic tubing PU 12 x 8 mm ether-based natural PUN-H-F-12X2-NT - Festo 8153407

Festo ✓ Original product Brand new

Pneumatic tubing PUN-H-F-12X2-NT in polyurethane, OD 12 mm, ID 8 mm. Operating pressure -0.95 to 10 bar depending on temperature, -0.95 to 6 bar across the full temperature range, bending radius from 33 mm and ambient -35 to 60 °C. Suitable for energy chains.

Net
€3.68
excl. VAT
Item FES-8153407
Manufacturer no. PUN-H-F-12X2-NT
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Plastic tubing in polyurethane for compressed air distribution, OD 12 mm, ID 8 mm. Connection: for push-in connector outside diameter of 12 mm.

Benefits

  • Operating pressure -0.95 to 10 bar (temperature-dependent)
  • -0.95 to 6 bar across the full temperature range
  • Minimum bending radius 33 mm, flow-relevant 62 mm
  • Suitable for energy chains, Shore hardness D 52 ± 3
  • Material fire behaviour UL94 HB
  • Ambient temperature -35 to 60 °C

Applications

Operating medium compressed air to ISO 8573-1:2010 [7:-:-], oxygen, water. Suitable for energy chains and moving cable routing.

Technical data

FeatureValue
TypePUN-H-F-12X2-NT
Festo part number8153407
Outside diameter12 mm
Flow-relevant bending radius62 mm
Inside diameter8 mm
Minimum bending radius33 mm
Instructions on useTubing without printing, TPE-U, ether-based
Tubing characteristicssuitable for energy chains
Operating pressure complete temperature range-0.95 to 6 bar
Temperature-dependent operating pressure-0.95 to 10 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Oxygen, Water (liquid, ice-free)
Fire test materialUL94 HB
LABS (PWIS) conformityVDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
Suitable for use with foodSee declaration of conformity
Ambient temperature-35 to 60 °C
Product weight according to length0.0723 kg/m
Pneumatic connectionFor push-in connector outside diameter of 12 mm
ColourNatural
Shore hardnessD 52 ± 3
Note on materialsRoHS compliant
Material tubingTPE-U(PU)
Weight0.085 kg
ManufacturerFesto
Hersteller-NrPUN-H-F-12X2-NT
EAN4052568590345
Zolltarifnummer39173200
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Farbenatur
MaterialPolyurethan
Schlauchdurchmesser (außen) [mm]12
Schlauchdurchmesser (außen x innen) [mm]12 x 8
Schlauchdurchmesser (innen) [mm]8
min. Biegeradius [mm]33
Betriebsdruck max [bar]10
Temperaturbereich-35-60 °C
