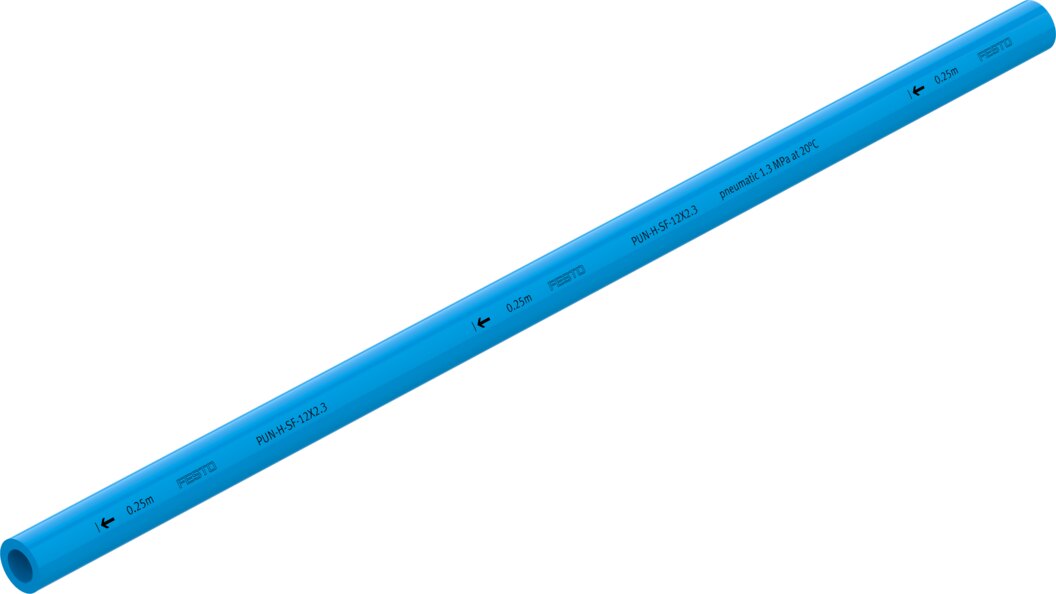

Plastic tubing PU 12 x 7.4 mm ether-based blue PUN-H-SF-12X2,3-BL - Festo 8167907

Festo ✓ Original product Brand new

Plastic tubing with 12 mm outside and 7.4 mm inside diameter for pneumatic lines. Operating pressure -0.95 to 13 bar depending on temperature, -0.95 to 6 bar across the full temperature range, bending radius from 22 mm and ambient -35 to 80 °C. Suitable for energy chains.

Net
€5.52
excl. VAT
Item FES-8167907
Manufacturer no. PUN-H-SF-12X2,3-BL
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The plastic tubing PUN-H-SF-12X2,3-BL carries compressed air and water between valves, cylinders and service units. Connection: for push-in connector outside diameter of 12 mm.

Benefits

  • Operating pressure -0.95 to 13 bar (temperature-dependent)
  • -0.95 to 6 bar across the full temperature range
  • Minimum bending radius 22 mm, flow-relevant 45 mm
  • Suitable for energy chains, Shore hardness D 54 ± 3
  • Material fire behaviour UL94 HB
  • Ambient temperature -35 to 80 °C

Applications

Medium: compressed air to ISO 8573-1:2010 [7:-:-], water. Suitable for energy chains and moving cable routing.

Technical data

FeatureValue
TypePUN-H-SF-12X2,3-BL
Festo part number8167907
Outside diameter12 mm
Flow-relevant bending radius45 mm
Inside diameter7.4 mm
Minimum bending radius22 mm
Instructions on useTPE-U, ether-based
Tubing characteristicssuitable for energy chains
Operating pressure complete temperature range-0.95 to 6 bar
Temperature-dependent operating pressure-0.95 to 13 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Fire test materialUL94 HB
LABS (PWIS) conformityVDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
Suitable for use with foodSee supplementary material information
Ambient temperature-35 to 80 °C
Product weight according to length0.085 kg/m
Pneumatic connectionFor push-in connector outside diameter of 12 mm
ColourBlue
Shore hardnessD 54 ± 3
Note on materialsRoHS compliant
Material tubingTPE-U(PU)
Weight0.09 kg
ManufacturerFesto
Hersteller-NrPUN-H-SF-12X2,3-BL
EAN4052568623548
Zolltarifnummer39173200
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Farbeblau
MaterialPolyurethan
MediumCompressed air, water
Schlauchdurchmesser (außen) [mm]12
Schlauchdurchmesser (außen x innen) [mm]12 x 7,4
Schlauchdurchmesser (innen) [mm]7,4
min. Biegeradius [mm]22
Betriebsdruck max [bar]13
