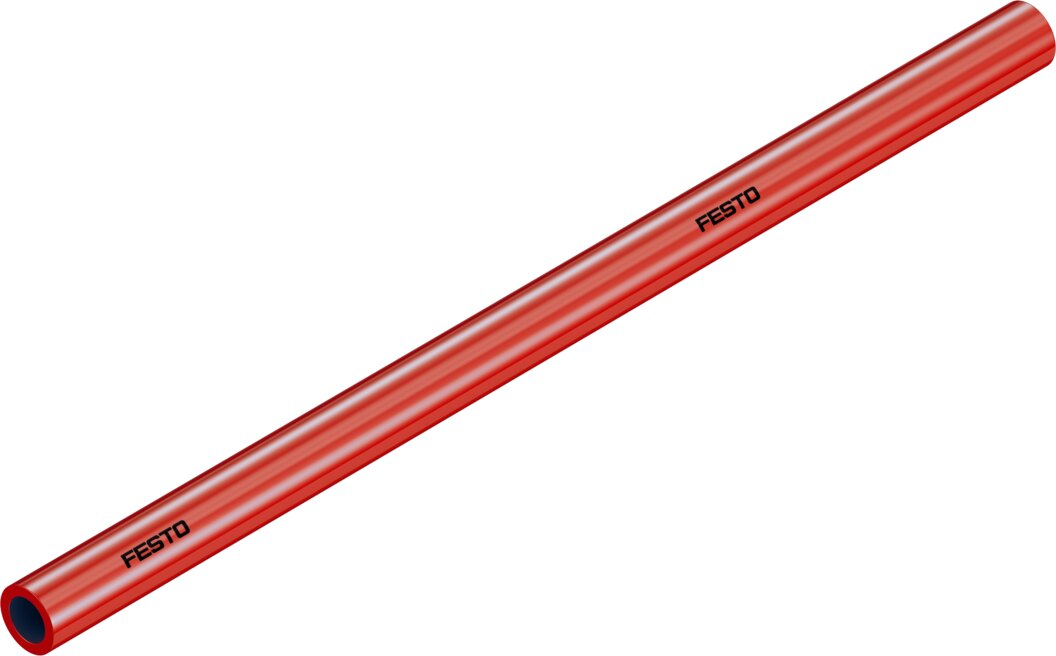

Plastic tubing PU 12 x 8 mm ether-based red PUN-H-12X2-RT - Festo 558289

Festo ✓ Original product Brand new

Polyurethane tubing 12 x 8 mm for push-in fittings with 12 mm outside diameter. Operating pressure -0.95 to 10 bar depending on temperature, -0.95 to 6 bar across the full temperature range, bending radius from 33 mm and ambient -35 to 60 °C. Suitable for energy chains.

Net
€3.12
excl. VAT
Item FES-558289
Manufacturer no. PUN-H-12X2-RT
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 12 mm outside diameter, the PUN-H-12X2-RT fits standard push-in fittings of this size. Connection: for push-in connector outside diameter of 12 mm.

Benefits

  • Operating pressure -0.95 to 10 bar (temperature-dependent)
  • -0.95 to 6 bar across the full temperature range
  • Minimum bending radius 33 mm, flow-relevant 62 mm
  • Suitable for energy chains, Shore hardness D 52 ± 3
  • Material fire behaviour UL94 HB
  • Suitable for battery production with reduced Cu/Zn/Ni values (F1a)

Applications

Operating medium compressed air to ISO 8573-1:2010 [7:-:-], water. Suitable for energy chains and moving cable routing.

Technical data

FeatureValue
TypePUN-H-12X2-RT
Festo part number558289
Outside diameter12 mm
Flow-relevant bending radius62 mm
Inside diameter8 mm
Minimum bending radius33 mm
Instructions on useTPE-U, ether-based
Tubing characteristicssuitable for energy chains
Operating pressure complete temperature range-0.95 to 6 bar
Temperature-dependent operating pressure-0.95 to 10 bar
ApprovalTÜV
Certificate issuing authorityB 013277 0527 00
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Fire test materialUL94 HB
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
Suitable for use with foodSee supplementary material information
Ambient temperature-35 to 60 °C
Product weight according to length0.0729 kg/m
Pneumatic connectionFor push-in connector outside diameter of 12 mm
ColourRed
Shore hardnessD 52 ± 3
Note on materialsRoHS compliant
Material tubingTPE-U(PU)
Weight0.085 kg
ManufacturerFesto
Hersteller-NrPUN-H-12X2-RT
EAN4052568054366
Zolltarifnummer39173200
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Farberot
MaterialPolyurethan
MediumCompressed air, water
Schlauchdurchmesser (außen) [mm]12
Schlauchdurchmesser (außen x innen) [mm]12 x 8
Schlauchdurchmesser (innen) [mm]8
min. Biegeradius [mm]33
Betriebsdruck max [bar]10
Temperaturbereich-35-60 °C

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
