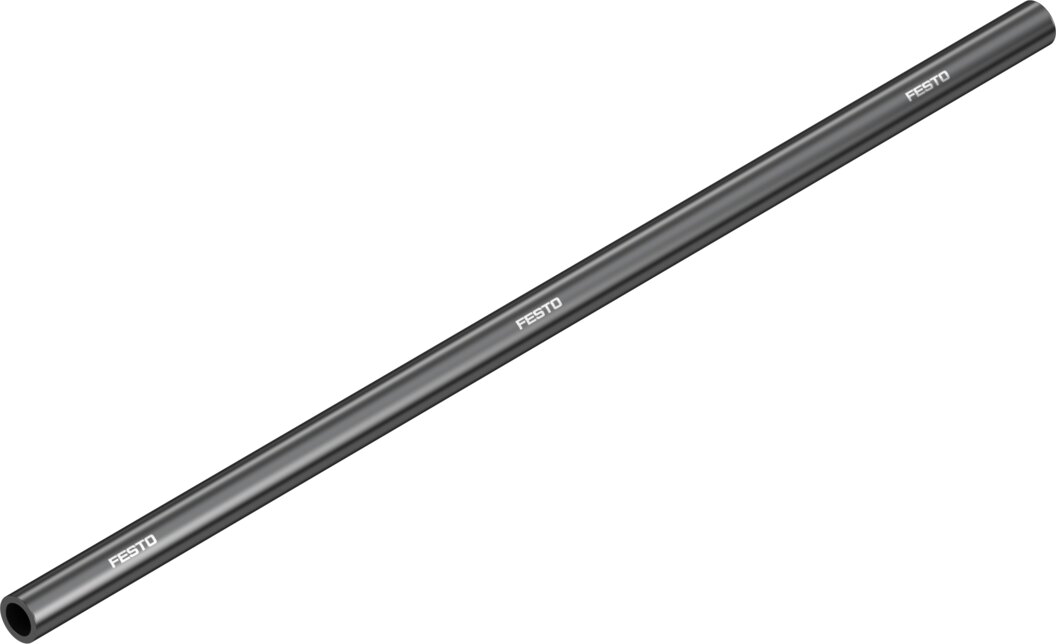

Plastic tubing PU 8 x 5.5 mm surface resistance 0.01 to 10 MOhm black PUN-CM-8-SW - Festo 130816
Pneumatic tubing PUN-CM-8-SW in polyurethane, OD 8 mm, ID 5.5 mm. Operating pressure -0.95 to 10 bar, bending radius from 20 mm and ambient -35 to 60 °C. Suitable for energy chains.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The plastic tubing PUN-CM-8-SW carries compressed air between valves, cylinders and service units.
Benefits
- Operating pressure -0.95 to 10 bar (temperature-dependent)
- Minimum bending radius 20 mm, flow-relevant 37 mm
- Suitable for energy chains, Shore hardness D 52 ± 3
- Surface resistance 0.01 to 10 MOhm
- Ambient temperature -35 to 60 °C
Applications
Medium: compressed air to ISO 8573-1:2010 [7:-:-]. Suitable for energy chains and moving cable routing.
Technical data
| Feature | Value |
|---|---|
| Type | PUN-CM-8-SW |
| Festo part number | 130816 |
| Outside diameter | 8 mm |
| Flow-relevant bending radius | 37 mm |
| Inside diameter | 5.5 mm |
| Minimum bending radius | 20 mm |
| Tubing characteristics | suitable for energy chains |
| Temperature-dependent operating pressure | -0.95 to 10 bar |
| Surface resistance | 0.01 to 10 MOhm |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -35 to 60 °C |
| Product weight according to length | 0.03527 kg/m |
| Colour | Black |
| Shore hardness | D 52 ± 3 |
| Note on materials | RoHS compliant |
| Material tubing | TPE-U(PU) |
| Weight | 0.037 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PUN-CM-8-SW |
| EAN | 4052568025373 |
| Zolltarifnummer | 39173200 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Farbe | schwarz |
| Material | Polyurethan |
| Medium | Compressed air |
| Schlauchdurchmesser (außen) [mm] | 8 |
| Schlauchdurchmesser (außen x innen) [mm] | 8 x 5,5 |
| Schlauchdurchmesser (innen) [mm] | 5,5 |
| min. Biegeradius [mm] | 20 |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -35-60 °C |
