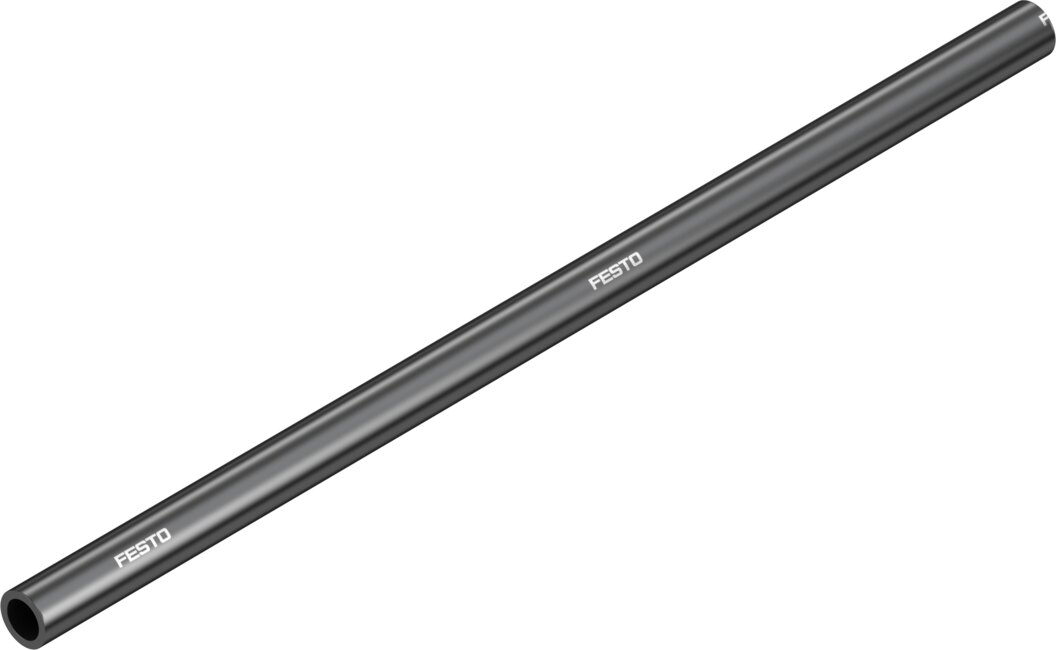

Plastic tubing PUN-CM-10-SW - Festo 130817
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Outside diameter | 10 mm |
|---|---|
| Flow-relevant bending radius | 60 mm |
| Inside diameter | 7 mm |
| Min. bending radius | 30 mm |
| Tubing characteristics | Suitable for energy chains |
| Temperature-dependent operating pressure | -0.95 ... 10 bar |
| Surface resistance | 0.01 ... 10 MOhm |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -35 ... 60 °C |
| Product weight according to length | 0.05158 kg/m |
| Pneumatic connection | For push-in connector O.D. 10 mm |
| Colour | Black |
| Shore hardness | D 52 +/-3 |
| Note on materials | RoHS compliant |
| Material tubing | TPE-U(PU) |
| Weight | 0.055 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PUN-CM-10-SW |
| EAN | 4052568025380 |
| Zolltarifnummer | 39173200 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
