With the flat sealing press fitting union the joint is made at one point, a pipe of 22 mm outside diameter meets the continuing line. Pipe diameter 22 mm, material stainless steel 1.4404.

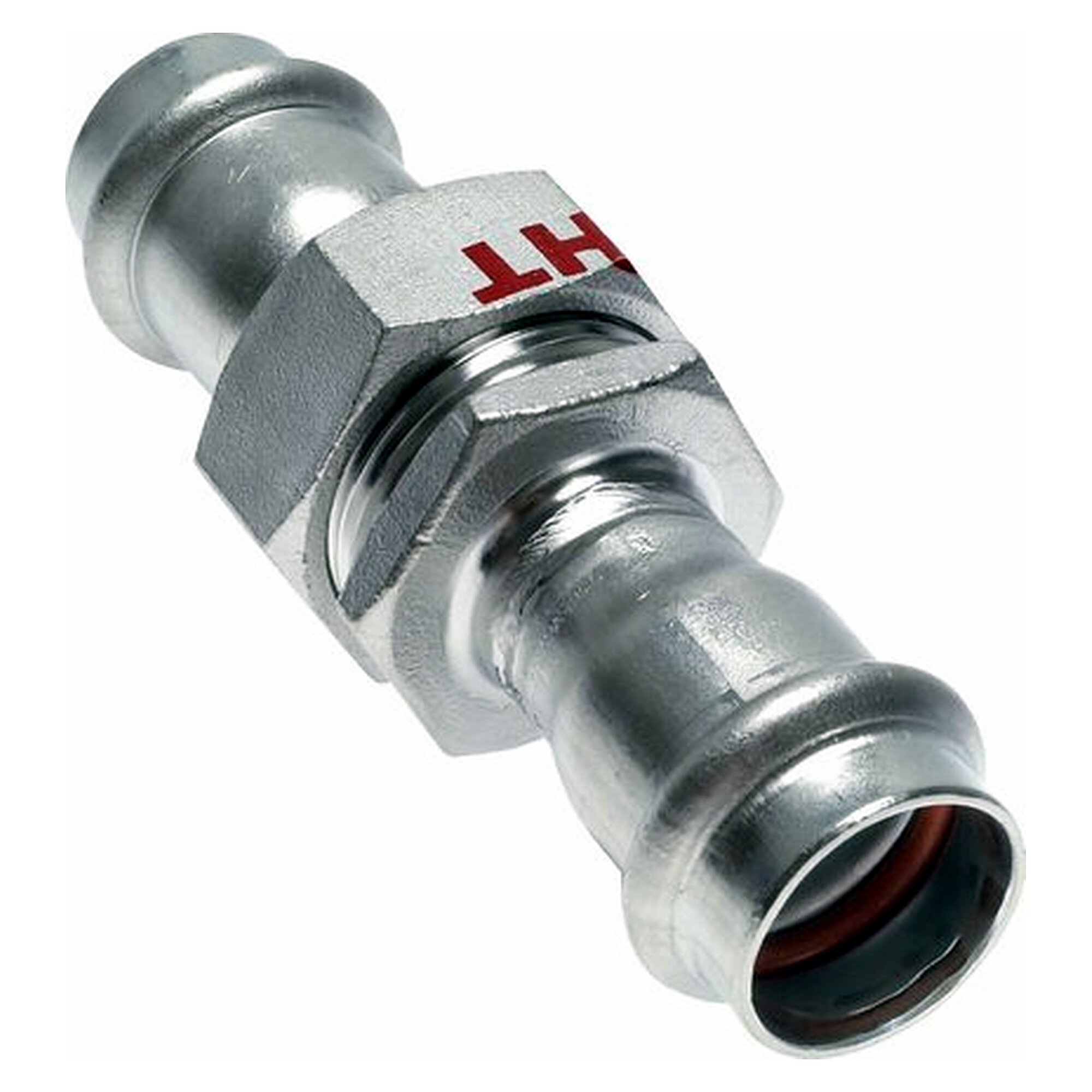

Flat sealing press fitting union, pipe 22 mm, stainless steel 1.4404
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€107.16
Item
FL-290646
Manufacturer no.
PDNT 22 ES
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.PDNT 22 ES
EAN4050571544645
Customs tariff number73072980
ConditionNew
Artikel
FL-290646
Frequently Bought Together
-
This Item:
€107.16
-
Cutting ring fitting, thread M 12x1.5 (konisch), tube 6 S (M14x1.5), stainless steel 1.4571
€74.02
-
Cutting ring elbow fitting, tube 28 L (M36x2), zinc-plated steel, light series
€33.40
Total price
The material is stainless steel 1.4404, the size is fixed at pipe diameter 22 mm. The flat sealing press fitting union connects a pipe of 22 mm outside diameter and the continuing line in doing so.
Benefits
- With pipe diameter 22 mm the size is fixed, so no reworking of the line is required
- The installation dimensions a of 115 mm and z of 59 mm are stated
- The press joint is made in a single operation without an open flame
- The size 22 is clearly assigned and stays available for reordering
Technical data
| Material | 1.4404 |
|---|---|
| Pipe outside diameter d | 22 mm |
| Dimension a | 115 mm |
| Dimension z | 59 mm |
| Seal material | FKM |
| Media | compressed air, neutral gases, cooling water, service water, heating water, water, fuel oil systems |
Applications
Refurbishment of existing pipe networks, compressed air networks in workshop and hall, water and cooling circuits, cooling and heating water lines.
Standards and conformity
Pressing is done with jaws of the SA, M and V press profiles.
| Weight | 0.230000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | PDNT 22 ES |
| EAN | 4050571544645 |
| Zolltarifnummer | 73072980 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | 1.4404 |
