Compact air chippers running at 4.000 to 6.000 min-1 for weld residue, mill scale and hard deposits. At 0,9 to 1,7 kg they stay controllable in one hand and need only 0,15 to 0,2 m³/min of air. Chisel chucks are available as a 12,7 mm square or a 10,5 mm round shank. Model ACH-16.
Pneumatic chipper ACH-16 - Nitto Kohki 91800001
NITTO KOHKI
Original product
Net price (excl. VAT)
€203.78
Item
NKH-91800001
Manufacturer no.
ACH-16
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.ACH-16
ConditionNew
Artikel
NKH-91800001
These compact air chippers strike flat chisels and scrapers at 4.000 to 6.000 min-1 to break loose mill scale, weld residue and hard deposits. At 0,9 to 1,7 kg the tool stays manageable in one hand through longer jobs.
- Stroke rates of 4.000 to 6.000 min-1 break loose mill scale, weld residue and deposits without lengthy build-up.
- Operating weights of 0,9 to 1,7 kg allow single-handed work and access to awkward positions.
- Air demand of 0,15 to 0,2 m³/min is modest, so an existing workshop compressor is usually enough.
- A 12,7 mm square chisel chuck or a 10,5 mm round shank version can be chosen to match the chisels already in stock.
- A chisel is fitted on delivery, with a PT3/8 x NPT3/8 bushing and a PT3/8 x 3/8 hose nipple included.
Technical data
| Model | ACH-16 |
|---|---|
| Stroke Speed (rpm) | 6.000 min-1 |
| Size of Chisel Chuck | OD 10.5 mm |
| Air Consumption (No load) | 0.15 m³/min |
| Mass (Weight) | 0.9 kg |
| Article number | 91800001 |
Applications

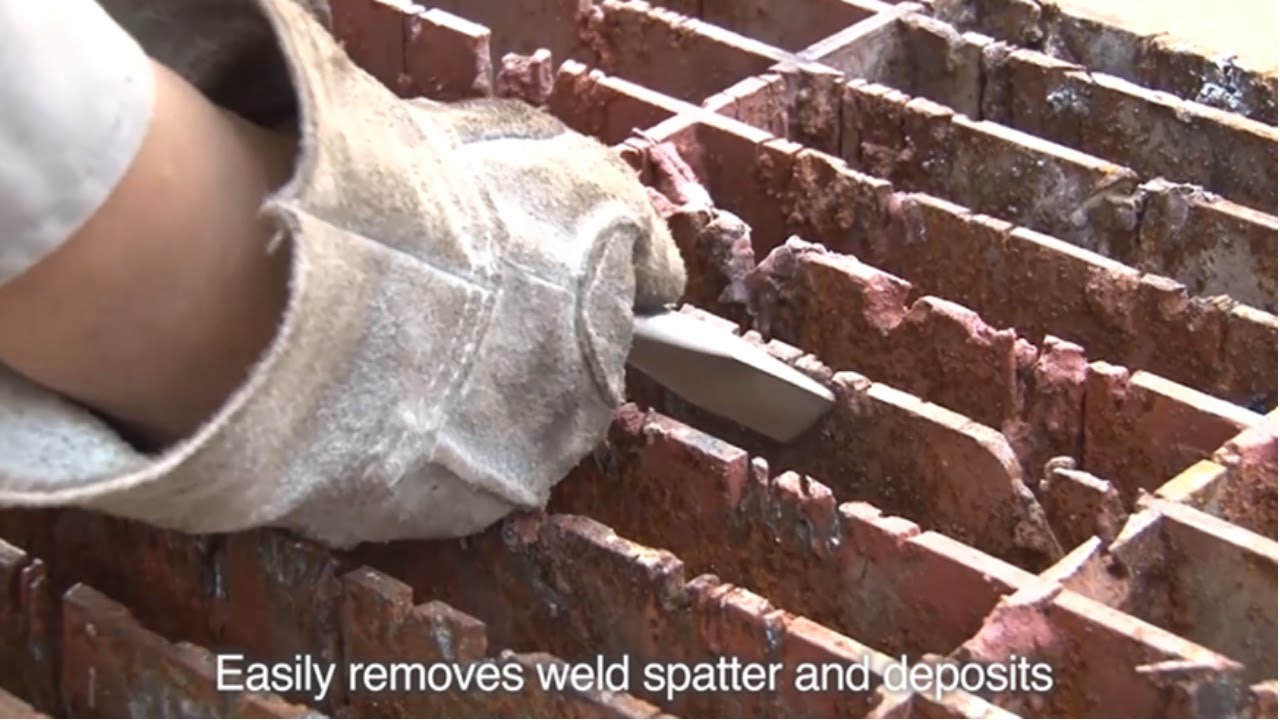

- Knocking off weld spatter, slag and mill scale
- Removing build-up and deposits on machines and fixtures
- Stripping aged paint from steel components
- Fettling and deburring castings and welded parts
- Dismantling work on seized sheet metal and rivets
Standard accessories
- Flat Chisel 20 x 120 : 1 pc. on the body
- Bushing PT3/8 x NPT3/8 : 1 pc.
- Hose Nipple PT3/8 x 3/8 : 1 pc.
Operating principle
A piston driven by compressed air strikes the shank of the fitted chisel. The chuck keeps the chisel guided so the impact energy arrives at the cutting edge.
| Weight | 0.900000 |
|---|---|
| Manufacturer | Nitto Kohki |
| Hersteller-Nr | ACH-16 |
| GPSR Herstellerdaten | Nitto Kohki Europe GmbH, Gottlieb-Daimler-Str. 10, DE-71144 Steinenbronn, www.nitto-kohki.eu |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
