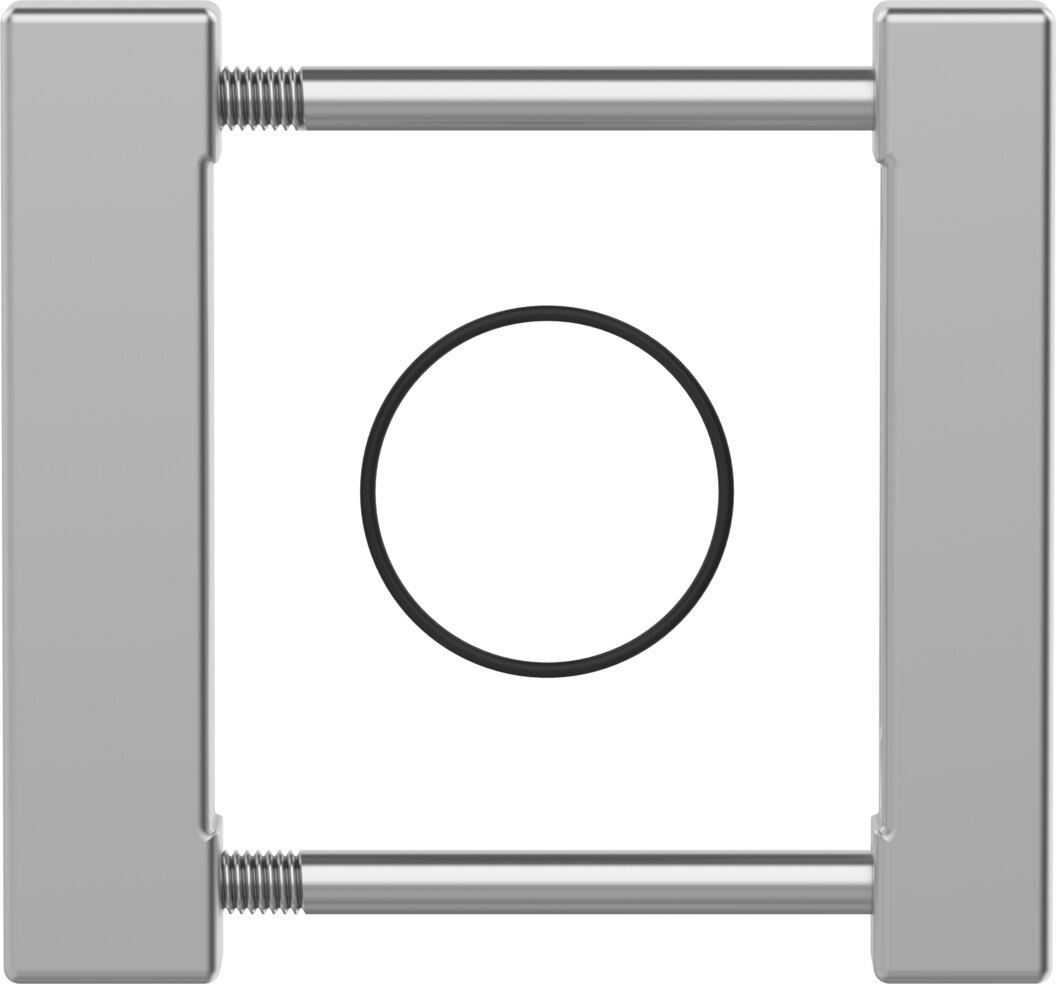

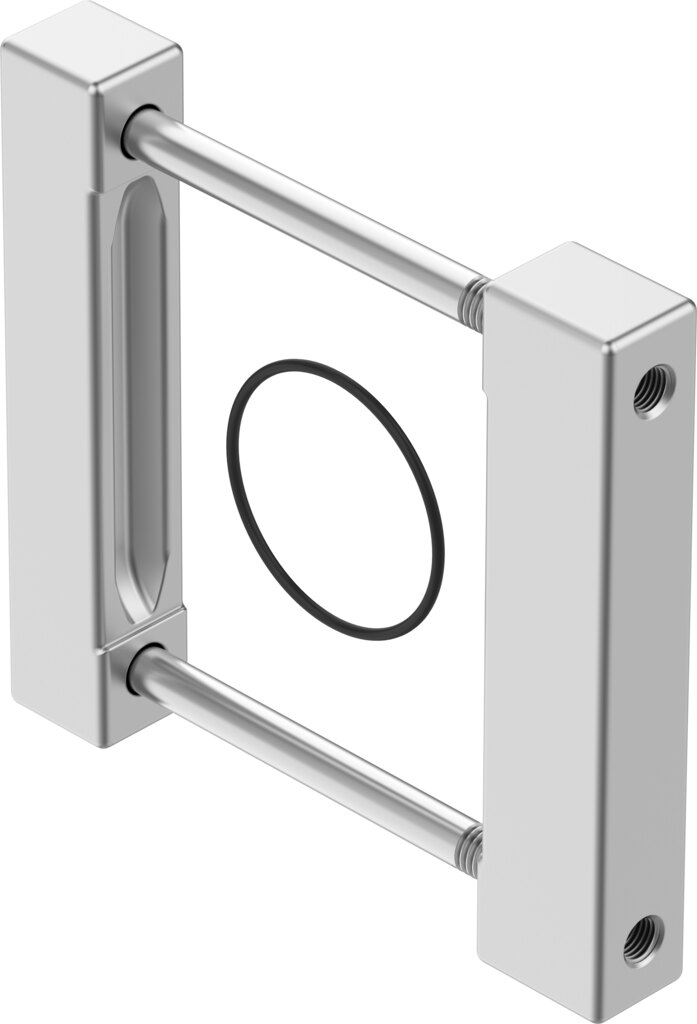

Module connector wrought aluminium alloy PAML-MK-186-HP3 - Festo 1629377
The PAML-MK-186-HP3 module connector joins two modules mechanically. Materials: module connector made of wrought aluminium alloy, screws made of stainless steel. Weight 1300 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The PAML-MK-186-HP3 accessory joins two modules mechanically, with module connector made of wrought aluminium alloy, screws made of stainless steel.
Why it pays off
- Weight 1300 g
- Corrosion resistance class CRC 2
- Media temperature 5 to 60 °C
- LABS (PWIS) conformity VDMA24364-B2-L
Applications
The PAML-MK-186-HP3 is used when mounting the associated Festo unit.
Technical data
| Type | PAML-MK-186-HP3 |
|---|---|
| Festo part number | 1629377 |
| Size | 186 |
| Nominal size DN | 54 |
| Series | L |
| Operating pressure | 0 to 50 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -10 to 60 °C |
| Suitable for use with food | See supplementary material information |
| Media temperature | 5 to 60 °C |
| Ambient temperature | 5 to 60 °C |
| Product weight | 1300 g |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material module connector | Wrought aluminium alloy |
| Material screws | Stainless steel |
| Weight | 1.2 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PAML-MK-186-HP3 |
| EAN | 4052568263706 |
| Zolltarifnummer | 76169990 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Seal material | NBR |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 50 |
| Temperaturbereich | 5-60 °C |
| Temperature (max.) | 60 |
