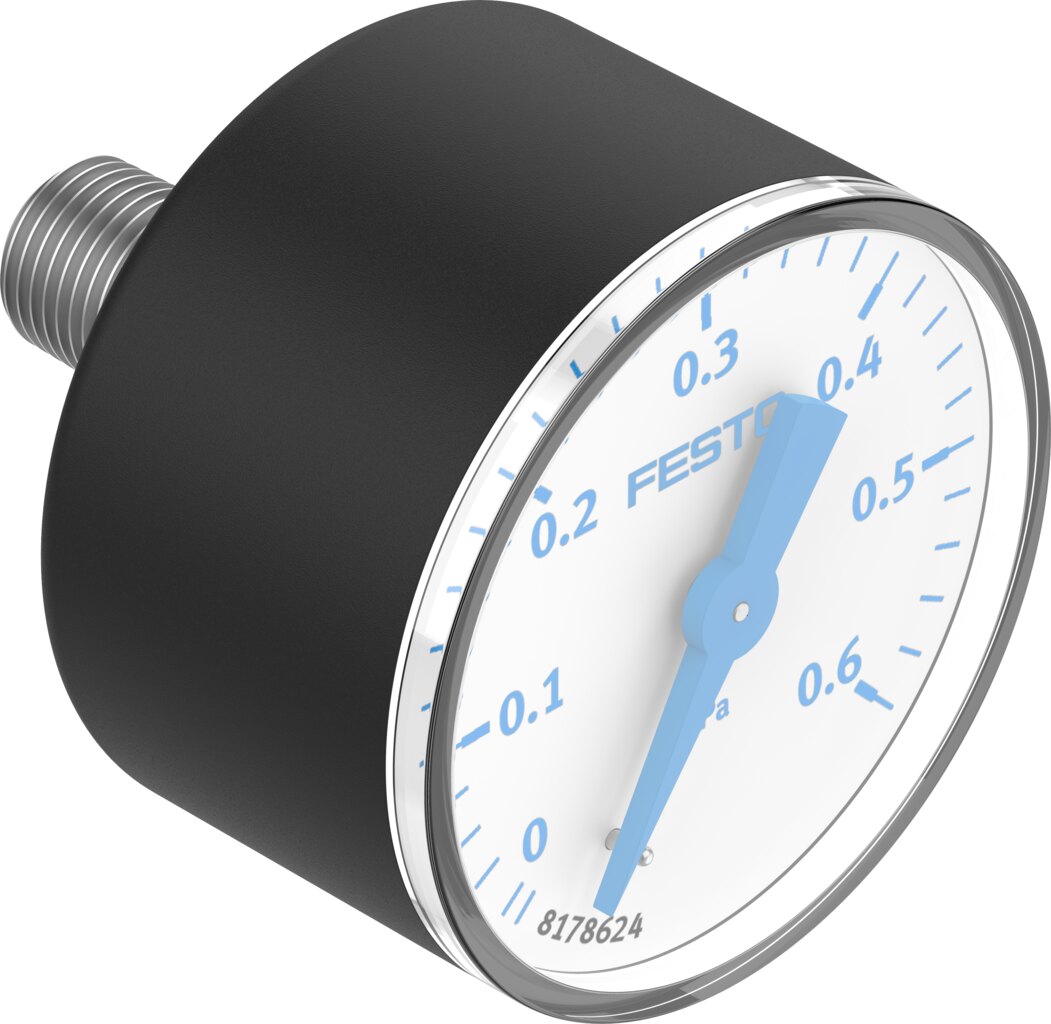

Flanged pressure gauge PAGN-P-40-1M-G14 - Festo 8037006
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Indicating range | 0 ... 1 MPa |
|---|---|
| Conforms to standard | EN 837-1 |
| Nominal size of pressure gauge | 40 |
| Design | Bourdon tube pressure gauge |
| Type of mounting | Front panel mounting |
| Operating medium | Inert gas, Neutral fluids |
| Note on operating and pilot medium | No acetylene, No oxygen |
| Operating pressure | 0 ... 10 bar |
| Alternating load factor | 0.66 |
| Measurement accuracy class | 2.5 |
| Degree of protection | IP43 |
| Storage temperature | -40 ... 70 °C |
| Media temperature | -20 ... 60 °C |
| Ambient temperature | -20 ... 60 °C |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS compliant |
| Position of connection | Centred, rear |
| Pneumatic connection | G1/4 |
| Material in contact with the medium | Brass |
| Material screwed plug | Brass |
| Material housing | ABS |
| Material screen | SAN |
| Material mounting ring | Steel |
| Material screws | Steel |
| Housing colour | Black |
| Product weight | 80 g |
| Scale | Double scale, MPa (outer scale), bar (inner scale) |
| Weight | 0.32 kg |
| Manufacturer | Festo |
| Hersteller-Nr | PAGN-P-40-1M-G14 |
| EAN | 4052568430160 |
| Zolltarifnummer | 90262040 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
