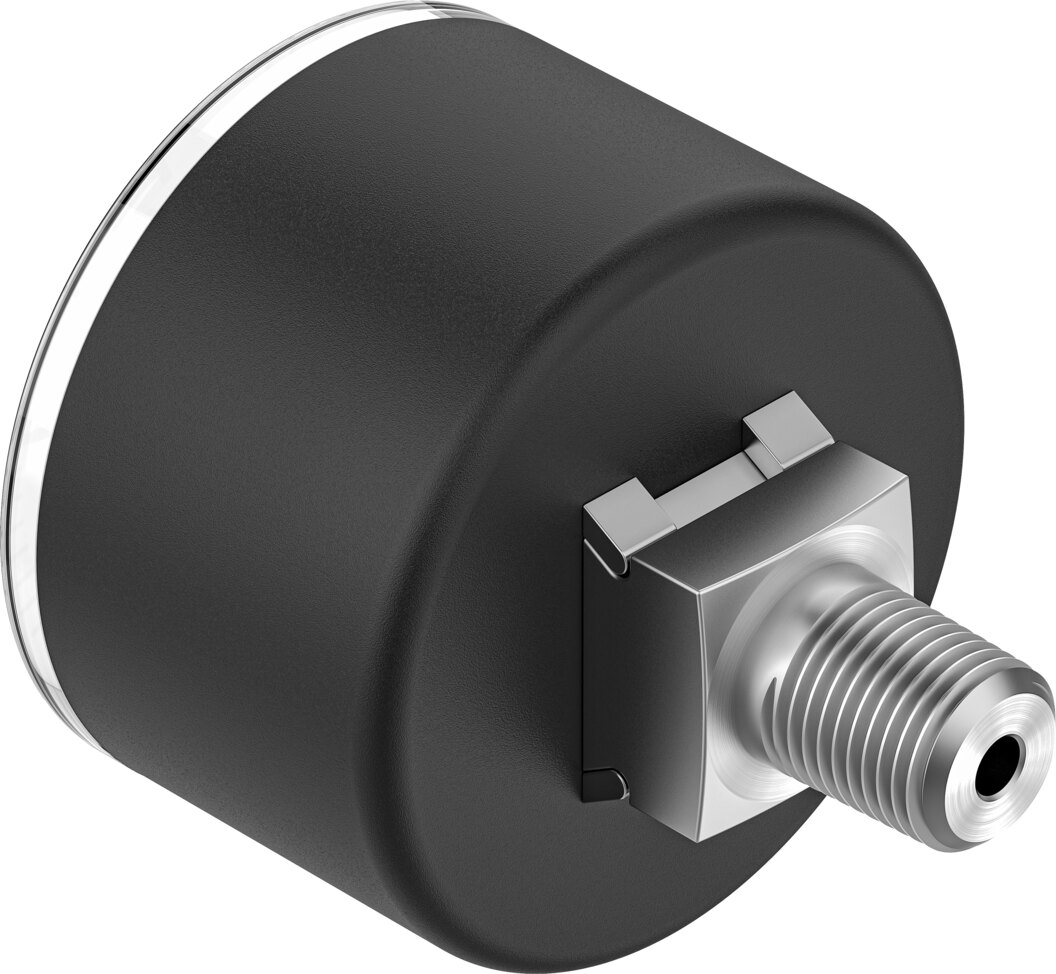

Pressure gauge 0 to 1 bar Ø 40 mm R1/8 class 1.6 PAGN-40-0.1M-R18-1.6-CPA - Festo 8178621
Pressure at a glance: the pressure gauge PAGN-40-0.1M-R18-1.6-CPA with nominal size 40 measures 0 to 1 bar in accuracy class 1.6. Connection R1/8 (rear, centred), accuracy class 1.6, in-line installation, single scale, MPa (outer scale), degree of protection IP43.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Pressure at a glance: the pressure gauge PAGN-40-0.1M-R18-1.6-CPA with nominal size 40 measures 0 to 1 bar in accuracy class 1.6.
Benefits
- Display range 0 to 1 bar, single scale, MPa (outer scale)
- Accuracy class 1.6 to EN 837-1
- Nominal size 40, in-line installation
- Connection R1/8, stud made of brass
- Housing made of PBT, window made of PS
- Ambient and medium temperature -20 to 60 °C
Applications
Measuring media for the PAGN-40-0.1M-R18-1.6-CPA: inert gases, neutral liquids, no acetylene, no oxygen. Installation: in-line installation. Alternating load factor 0.66.
Technical data
| Feature | Value |
|---|---|
| Display range | 0 to 1 bar |
| Conforms to standard | EN 837-1 |
| Nominal size of pressure gauge | 40 |
| Approval | CPA |
| Design | Bourdon tube pressure gauge |
| Type of mounting | In-line installation |
| Operating medium | Inert gases, neutral liquids |
| Note on operating and pilot medium | No acetylene, no oxygen |
| Operating pressure | 0 to 1 bar |
| Alternating load factor | 0.66 |
| Measurement accuracy class | 1.6 |
| Degree of protection | IP43 |
| Storage temperature | -40 to 70 °C |
| Media temperature | -20 to 60 °C |
| Ambient temperature | -20 to 60 °C |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS compliant |
| Position of connection | Rear, centred |
| Pneumatic connection | R1/8 |
| Material in contact with the medium | Brass |
| Material screwed plug | Brass |
| Material housing | PBT |
| Material window | PS |
| Housing colour | Black |
| Scale | Single scale, MPa (outer scale) |
| Type | PAGN-40-0.1M-R18-1.6-CPA |
| Festo part number | 8178621 |
| Manufacturer | Festo |
| Hersteller-Nr | PAGN-40-0.1M-R18-1.6-CPA |
| EAN | 4052568634339 |
| Zolltarifnummer | 90262040 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Black |
| Thread | R 1/8 |
| Measuring range max. [bar] | 1 |
| Anzeigebereich [bar] | 0 bis 1 |
| Medientemperatur [°C] | -20 bis 60 |
| Betriebsdruck max [bar] | 1 |
| Protection rating | IP43 |
| Temperature (max.) | 60 |
