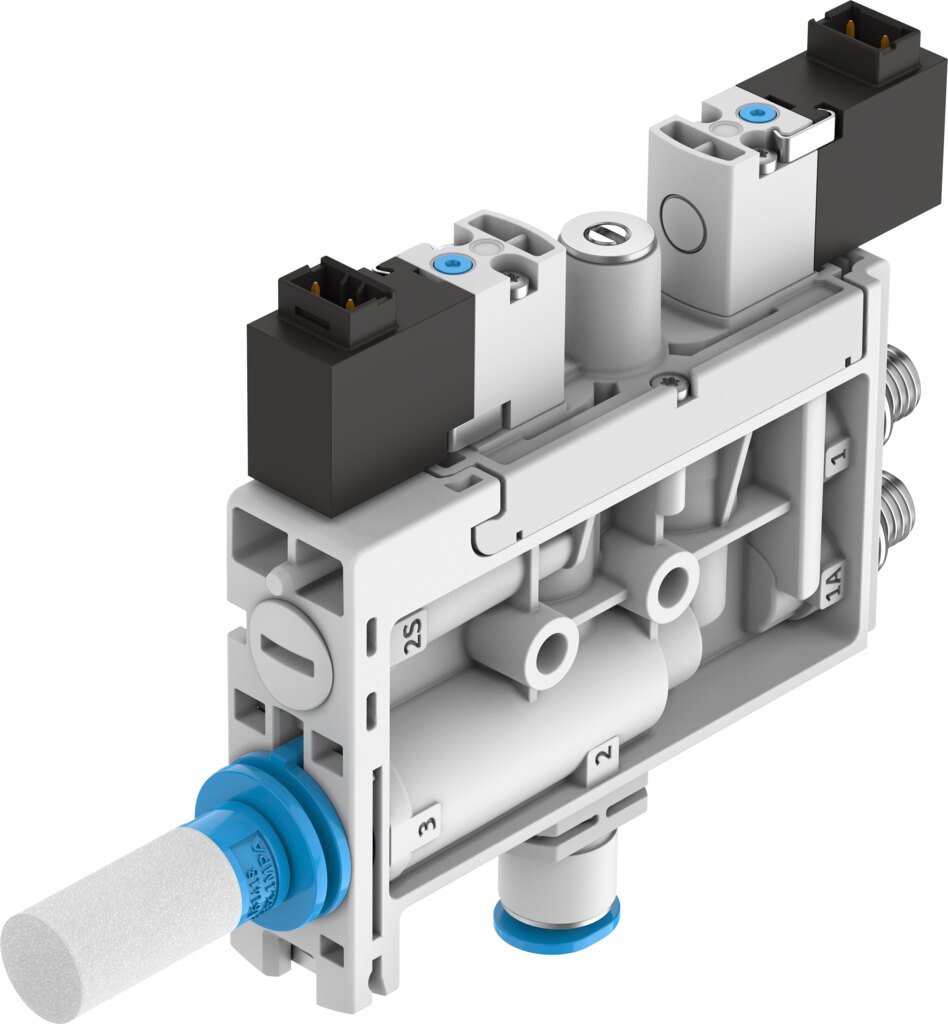

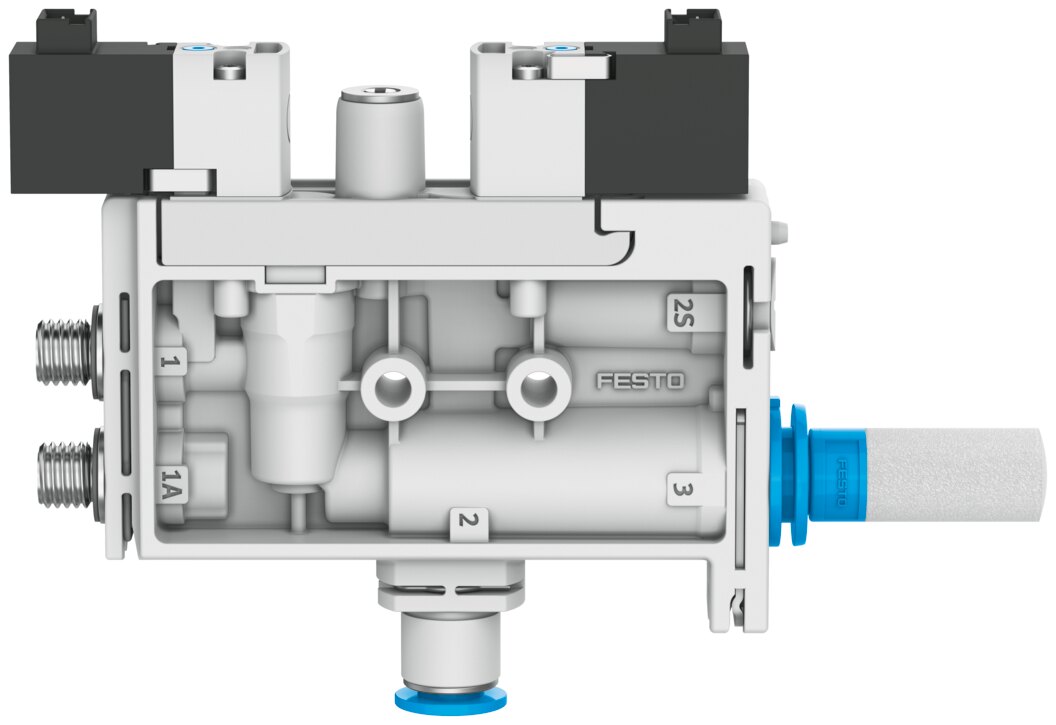

T-shape vacuum generator with switch-on valve Laval nozzle 0.7 mm vacuum 92 % OVEL-7-H-15-P-VQ4-UA-C-A-H3 - Festo 604114
Up to 92 % vacuum and 17 l/min suction flow against atmosphere: that is what the vacuum generator OVEL-7-H-15-P-VQ4-UA-C-A-H3 delivers from compressed air. Integrated function: electric switch-on valve.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The vacuum generator OVEL-7-H-15-P-VQ4-UA-C-A-H3 works with a 0.7 mm Laval nozzle. Ejector characteristic: high vacuum, Standard.
Benefits
- Vacuum up to 92 %
- Suction flow up to 17 l/min against atmosphere
Applications
The high vacuum suits dense, smooth workpieces such as sheet metal, glass or plastic panels.
Technical data
| Nominal size, Laval nozzle | 0.7 mm |
|---|---|
| Design | T-shape |
| Ejector characteristic | High vacuum, Standard |
| Maximum vacuum | 92 % |
| Maximum suction flow rate against atmosphere | 17 l/min |
| Operating pressure | 2 to 7 bar |
| Grid dimension | 15 mm |
| Pneumatic connection, port 1 | Common line |
| Vacuum connection | For tubing O.D. 4 mm |
| Silencer design | Open |
| Valve function | Closed |
| Integrated function | Electric switch-on valve |
| Weight | 0.105 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OVEL-7-H-15-P-VQ4-UA-C-A-H3 |
| Zolltarifnummer | 84818079 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 0,7 |
| Function | closed |
| Flow rate [l/min] | 17 |
| Series | OVEL |
| Betriebsdruck max [bar] | 7 |
