Vacuum generator OVEL-5-H-10-PQ-VQ4-UA-C-A-V1V-R8 - Festo 8152243
Net
excl. VAT
€195.64
Item
FES-8152243
Manufacturer no.
OVEL-5-H-10-PQ-VQ4-UA-C-A-V1V-R8
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Nominal size, Laval nozzle | 0.45 mm |
|---|---|
| Grid dimension | 10 mm |
| Silencer design | Open |
| Mounting position | Any |
| Ejector characteristic | High vacuum, Standard |
| Grade of filtration | 40 µm |
| Manual override | Non-detenting |

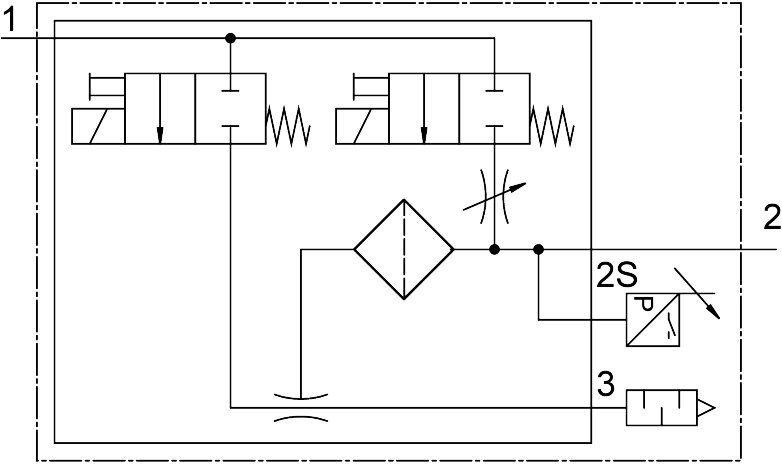

| Integrated function | Ejector pulse, electrical, Flow control, Pressure transmitter, On/off valve, electric, Filter, Open silencer |
| Design | T-shape |
| Valve function | Closed |
| Measurement method | Piezoresistive pressure sensor |
| Operating pressure for max. suction flow rate | 3 bar |
| Operating pressure | 2 ... 7 bar |
| Operating pressure for max. vacuum | 4.2 bar |
| Max. vacuum | 89 % |
| Nominal operating pressure | 4 bar |
| Max. suction flow rate against atmosphere | 4 l/min |
| Air supply time at nominal operating pressure with ejector pulse | 2 s |
| Analogue output | 0 - 10 V |
| Operational voltage range DC | 21.6 ... 26.4 V |
| Duty cycle | 100% |
| Characteristic coil data | 24 V DC: 1.28 W |
| Approval | c UL us - Listed (Oil) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | 0 ... 50 °C |
| Sound pressure level at nominal operating pressure | 64 dB(A) |
| Degree of protection | IP40 |
| Ambient temperature | 0 ... 50 °C |
| Product weight | 94 g |
| Operating voltage range, DC sensor | 18 ... 30 V |
| Pressure measuring range | -1 ... 0 bar |
| Electrical connection input, function | Vacuum generation |
| Electrical connection input, connection type | 2x plugs |
| Electrical connection input, connector system | M8x1, A-coded to EN 61076-2-104 |
| Electrical connection input, number of connections/cores | 2 |
| Electrical connection input, connection pattern | 00991155 |
| Input electrical connection, mounting type | Snap-locking |
| Electrical connection output, function | Sensor |
| Electrical connection output, connection type | Cable |
| Electrical connection output, connector system | Open end |
| Electrical connection output, number of connections/cores | 3 |
| Cable characteristic | Suitable for energy chains |
| Cable diameter | 2.9 mm |
| Cable diameter tolerance | ± 0.1 mm |
| Cable length | 2.5 m |
| Nominal cross section conductor | 0.14 mm² |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | For tubing outer diameter of 4 mm |
| Pneumatic connection, port 3 | Open silencer |
| Vacuum connection | For tubing outside diameter of 4 mm |
| Cable sheath colour | Grey |
| Material connecting thread | POM |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material receiver nozzle | POM |
| Material filter | POM |
| Material housing | Reinforced PA |
| Material cable sheath | PVC |
| Material adjusting screw | Steel |
| Material silencer | Reinforced PA, Packaging unit |
| Material screws | Steel |
| Material transmitter nozzle | Wrought aluminium alloy |
| Weight | 0.14 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OVEL-5-H-10-PQ-VQ4-UA-C-A-V1V-R8 |
| EAN | 4052568639143 |
| Zolltarifnummer | 84141089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
