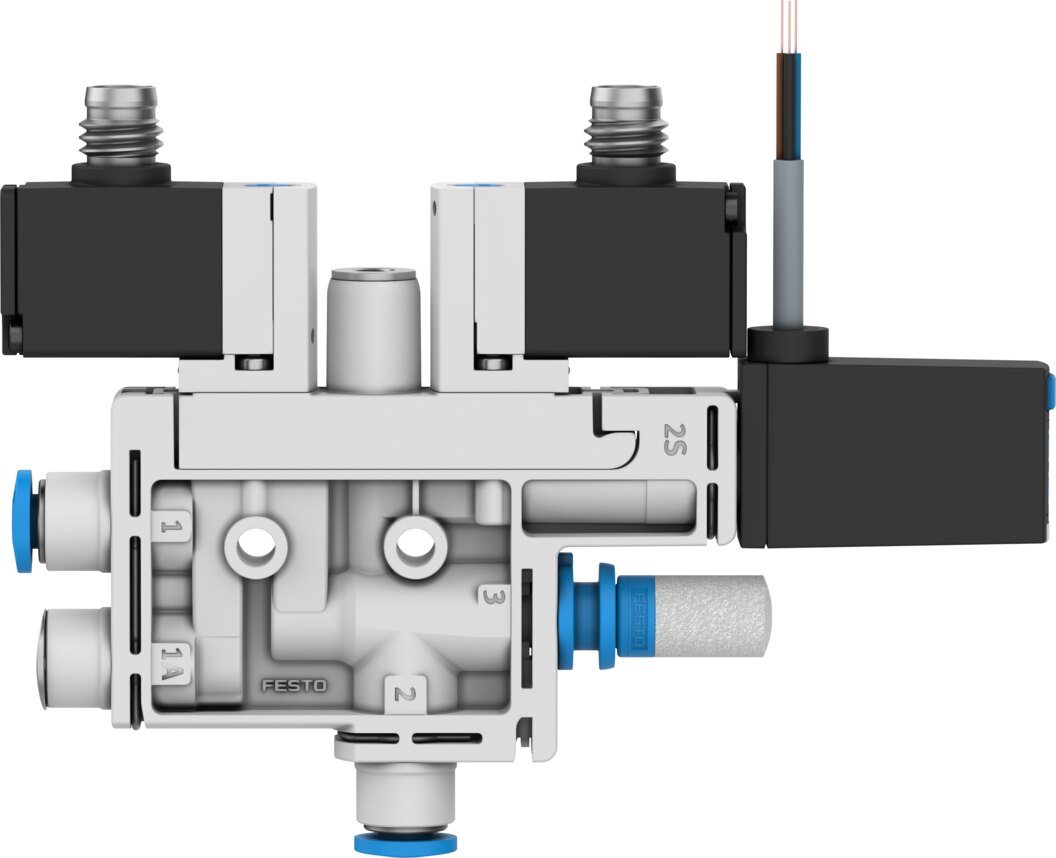

T-shape vacuum generator with switch-on valve and pressure sensor Laval nozzle 0.45 mm vacuum 89 % OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-R8 - Festo 8152240

Festo ✓ Original product Brand new

With a 0.45 mm Laval nozzle, the vacuum generator OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-R8 reaches up to 89 % vacuum at a max. suction flow of 4 l/min. Integrated functions: electric ejector pulse, flow control, pressure sensor, electric switch-on valve and filter. Maximum vacuum is reached at an operating pressure of just 4.2 bar.

Net
€235.60
excl. VAT
Item FES-8152240
Manufacturer no. OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-R8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The vacuum generator OVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-R8 works with a 0.45 mm Laval nozzle and requires 2 to 7 bar operating pressure, nominal 4 bar. Ejector characteristic: high vacuum, Standard.

Benefits

  • Vacuum up to 89 %, reached at 4.2 bar operating pressure
  • Suction flow up to 4 l/min against atmosphere, at 3 bar operating pressure
  • Electrics: degree of protection IP40, 24 V DC: 1.28 W, IO-Link
  • Sound pressure level 64 dB(A) at nominal operating pressure, open silencer
  • Clean production: LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Product weight 97 g, grid dimension 10 mm

Applications

The high vacuum suits dense, smooth workpieces such as sheet metal, glass or plastic panels. Type of mounting: on manifold rail. Lubricated operation is not possible.

Technical data

Nominal size, Laval nozzle0.45 mm
Grid dimension10 mm
Silencer designOpen
Mounting positionAny
Ejector characteristicHigh vacuum, Standard
Grade of filtration40 µm
Manual overrideNon-detenting

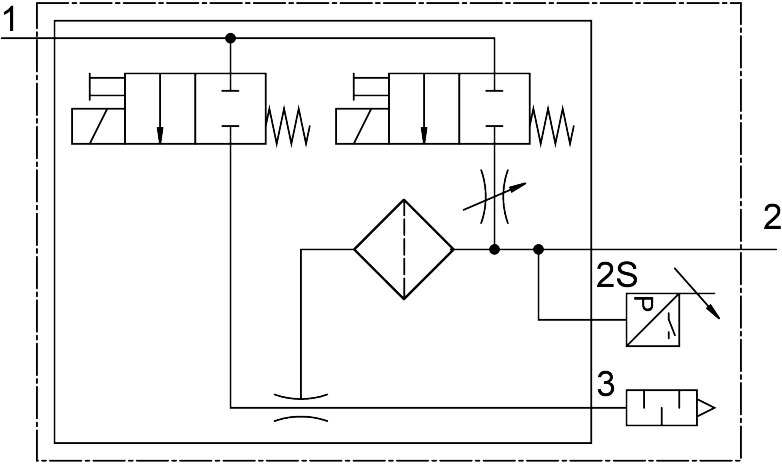

Integrated functionElectric ejector pulse, Flow control, Pressure sensor, Electric switch-on valve, Filter, Closed silencer
DesignT-shape
Switching element functionN/C or N/O contact, switchable
Switching functionFreely programmable
Valve functionClosed
Measurement methodPiezoresistive pressure sensor with display
Display typeLED indicator, 2 digits
Setting optionsIO-Link, Teach-in, Via display and buttons
Operating pressure for maximum suction flow rate3 bar
Operating pressure2 to 7 bar
Operating pressure for maximum vacuum4.2 bar
Maximum vacuum89 %
Nominal operating pressure4 bar
Maximum suction flow rate against atmosphere4 l/min
Release time at nominal operating pressure with ejector pulse2 s
Operational voltage range DC21.6 to 26.4 V
Duty cycle100 %
Switching outputPNP/NPN switchable
Characteristic coil data24 V DC: 1.28 W
Approvalc UL us - Listed (OL)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive
UKCA marking (see declaration of conformity)To UK regulations for EMC
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature0 to 50 °C
Sound pressure level at nominal operating pressure64 dB(A)
Degree of protectionIP40
Ambient temperature0 to 50 °C
Product weight97 g
Operating voltage range, DC sensor18 to 30 V
Pressure measuring range-1 to 0 bar
Electrical connection input, functionVacuum generation
Electrical connection input, connection type2x plugs
Electrical connection input, connector systemM8x1, A-coded to EN 61076-2-104
Electrical connection input, number of connections/cores2
Input electrical connection, mounting typeSnap-locking
Electrical connection output, functionSensor
Electrical connection output, connection typeCable
Electrical connection output, connector systemOpen end
Electrical connection output, number of connections/cores3
Cable characteristicSuitable for energy chains
Cable diameter2.9 mm
Cable diameter tolerance± 0.1 mm
Cable length2.5 m
Nominal cross section conductor0.14 mm²
Type of mountingOn manifold rail
Pneumatic connection, port 1For tubing O.D. 4 mm
Pneumatic connection, port 3Open silencer
Vacuum connectionFor tubing O.D. 4 mm
Cable sheath colourGrey
Material connecting threadPOM
Note on materialsRoHS compliant
Material sealsNBR
Material receiver nozzlePOM
Material filterPOM
Material housingReinforced PA
Material cable sheathPVC
Material adjusting screwSteel
Material silencerReinforced PA, PE
Material screwsSteel
Material transmitter nozzleWrought aluminium alloy
Weight0.14 kg
ManufacturerFesto
Hersteller-NrOVEL-5-H-10-PQ-VQ4-UA-C-A-V1PNLK-R8
EAN4052568639112
Zolltarifnummer84141089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
For hose OD [mm]4
Seal materialNBR
MediumCompressed air
Functionclosed
Flow rate [l/min]4
Filter grade [µm]40
Operating voltage24 V DC
SeriesOVEL
Betriebsdruck max [bar]7
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
