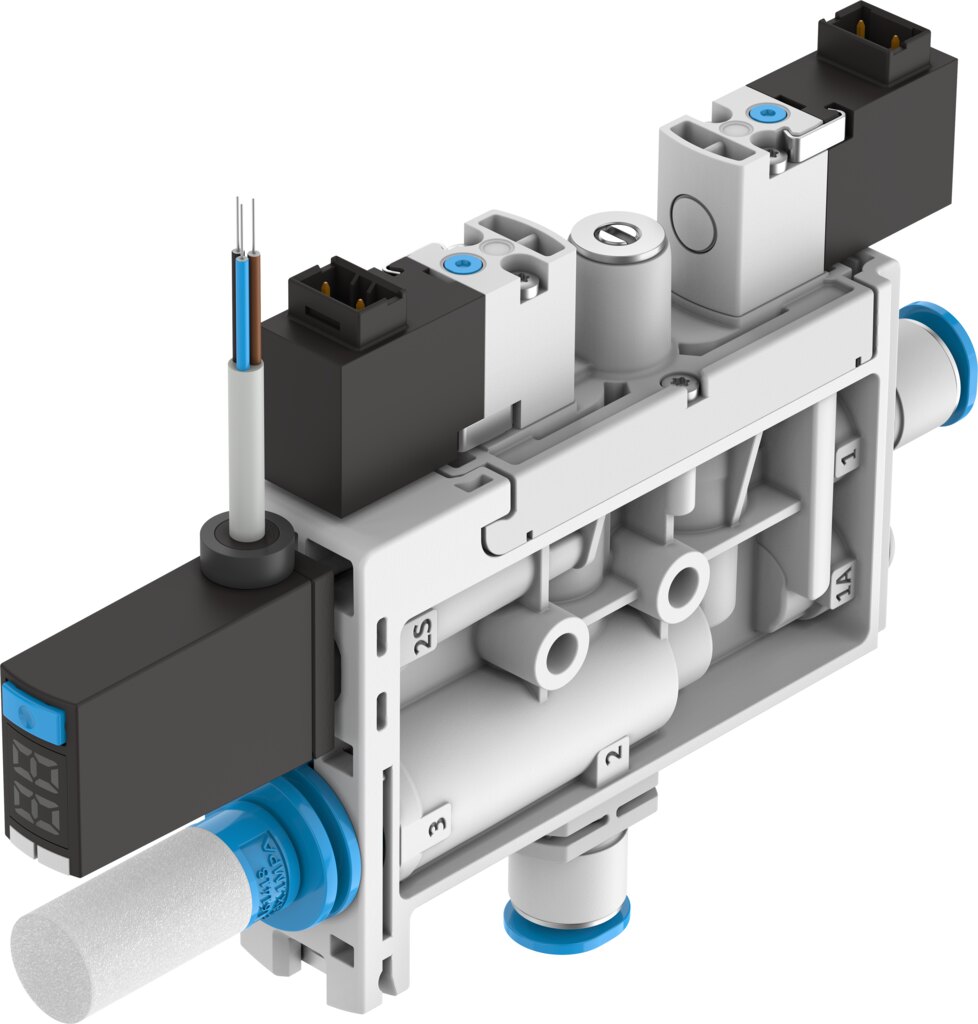

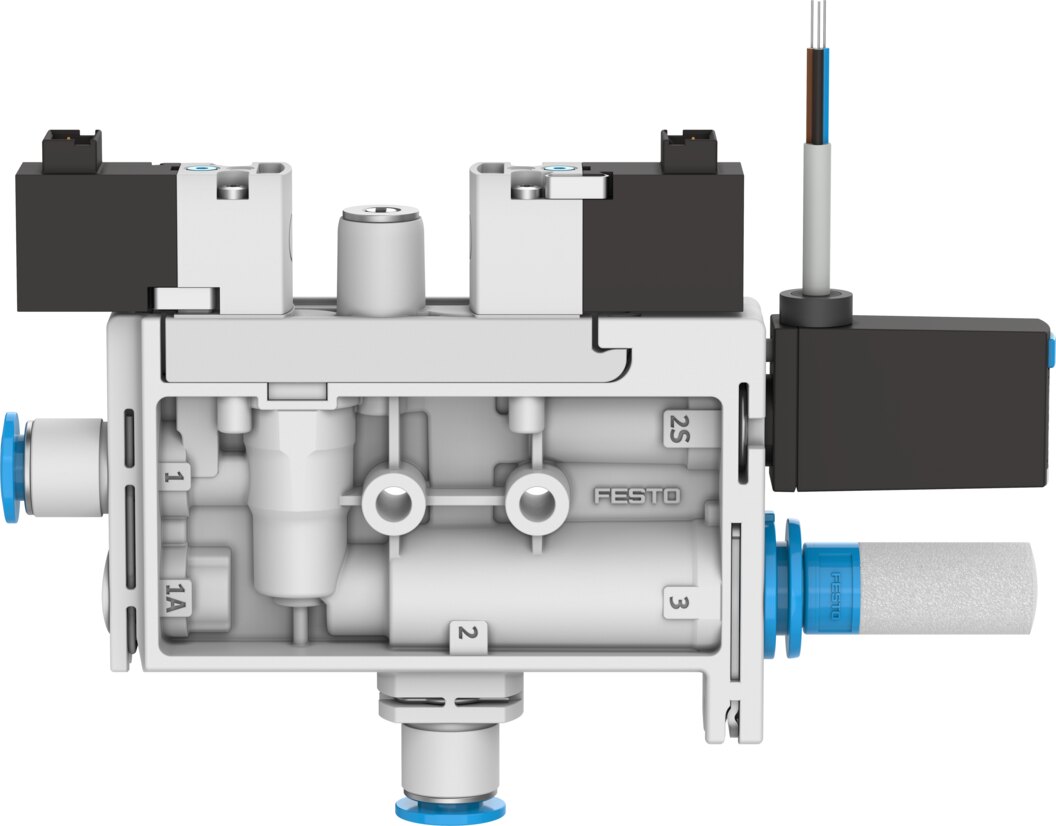

T-shape vacuum generator with switch-on valve and pressure sensor Laval nozzle 0.95 mm vacuum 92 % OVEL-10-H-15-PQ-VQ6-UC-C-A-V1PNLK-H3 - Festo 8141093

Festo ✓ Original product Brand new

The vacuum generator OVEL-10-H-15-PQ-VQ6-UC-C-A-V1PNLK-H3 turns compressed air into up to 92 % vacuum and draws up to 21 l/min against atmosphere. Integrated functions: electric ejector pulse, flow control, pressure sensor, electric switch-on valve and filter. Maximum vacuum is reached at an operating pressure of just 4.1 bar.

Net
€229.70
excl. VAT
Item FES-8141093
Manufacturer no. OVEL-10-H-15-PQ-VQ6-UC-C-A-V1PNLK-H3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The vacuum generator OVEL-10-H-15-PQ-VQ6-UC-C-A-V1PNLK-H3 works with a 0.95 mm Laval nozzle and requires 2 to 7 bar operating pressure, nominal 4 bar. Ejector characteristic: high vacuum, Standard.

Benefits

  • Vacuum up to 92 %, reached at 4.1 bar operating pressure
  • Suction flow up to 21 l/min against atmosphere, at 4 bar operating pressure
  • Electrics: degree of protection IP40, 24 V DC: 1.0 W, IO-Link
  • Sound pressure level 56 dB(A) at nominal operating pressure, closed silencer
  • Clean production: LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Product weight 92 g, grid dimension 15 mm

Applications

The high vacuum suits dense, smooth workpieces such as sheet metal, glass or plastic panels. Mounting: with through-hole. Lubricated operation is not possible.

Technical data

Nominal size, Laval nozzle0.95 mm
Grid dimension15 mm
Silencer designClosed
Mounting positionAny
Ejector characteristicHigh vacuum, Standard
Grade of filtration40 µm
Manual overrideNon-detenting

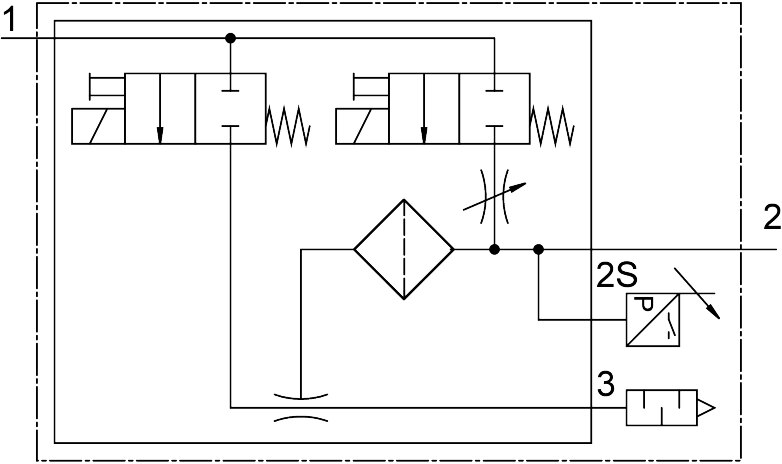

Integrated functionElectric ejector pulse, Flow control, Pressure sensor, Electric switch-on valve, Filter, Closed silencer
DesignT-shape
Switching element functionN/C or N/O contact, switchable
Switching functionFreely programmable
Valve functionClosed
Measurement methodPiezoresistive pressure sensor with display
Display typeLED indicator, 2 digits
Setting optionsIO-Link, Teach-in, Via display and buttons
Operating pressure for maximum suction flow rate4 bar
Operating pressure2 to 7 bar
Operating pressure for maximum vacuum4.1 bar
Maximum vacuum92 %
Nominal operating pressure4 bar
Maximum suction flow rate against atmosphere21 l/min
Release time at nominal operating pressure with ejector pulse1 s
Operational voltage range DC21.6 to 26.4 V
Duty cycle100 %
Switching outputPNP/NPN switchable
Characteristic coil data24 V DC: 1.0 W
Approvalc UL us - Listed (OL)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive
UKCA marking (see declaration of conformity)To UK regulations for EMC
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature0 to 50 °C
Sound pressure level at nominal operating pressure56 dB(A)
Degree of protectionIP40
Ambient temperature0 to 50 °C
Product weight92 g
Operating voltage range, DC sensor18 to 30 V
Pressure measuring range-1 to 0 bar
Electrical connection input, functionVacuum generation
Electrical connection input, connection type2x plugs
Electrical connection input, connector systemPlug pattern H
Electrical connection input, number of connections/cores2
Input electrical connection, mounting typeSnap-locking
Electrical connection output, functionSensor
Electrical connection output, connection typeCable
Electrical connection output, connector systemOpen end
Electrical connection output, number of connections/cores3
Cable characteristicSuitable for energy chains
Cable diameter2.9 mm
Cable diameter tolerance± 0.1 mm
Cable length2.5 m
Nominal cross section conductor0.14 mm²
Type of mountingWith through-hole
Pneumatic connection, port 1For tubing O.D. 4 mm
Pneumatic connection, port 3Closed silencer
Vacuum connectionFor tubing O.D. 6 mm
Cable sheath colourGrey
Material connecting threadPOM
Note on materialsRoHS compliant
Material sealsNBR
Material receiver nozzlePOM
Material filterPOM
Material housingReinforced PA
Material cable sheathPVC
Material adjusting screwSteel
Material silencerReinforced PA, PE
Material screwsSteel
Material transmitter nozzleWrought aluminium alloy
Weight0.155 kg
ManufacturerFesto
Hersteller-NrOVEL-10-H-15-PQ-VQ6-UC-C-A-V1PNLK-H3
EAN4052568566647
Zolltarifnummer84141089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
For hose OD [mm]4
Seal materialNBR
MediumCompressed air
Functionclosed
Flow rate [l/min]21
Filter grade [µm]40
Operating voltage24 V DC
SeriesOVEL
Betriebsdruck max [bar]7
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
